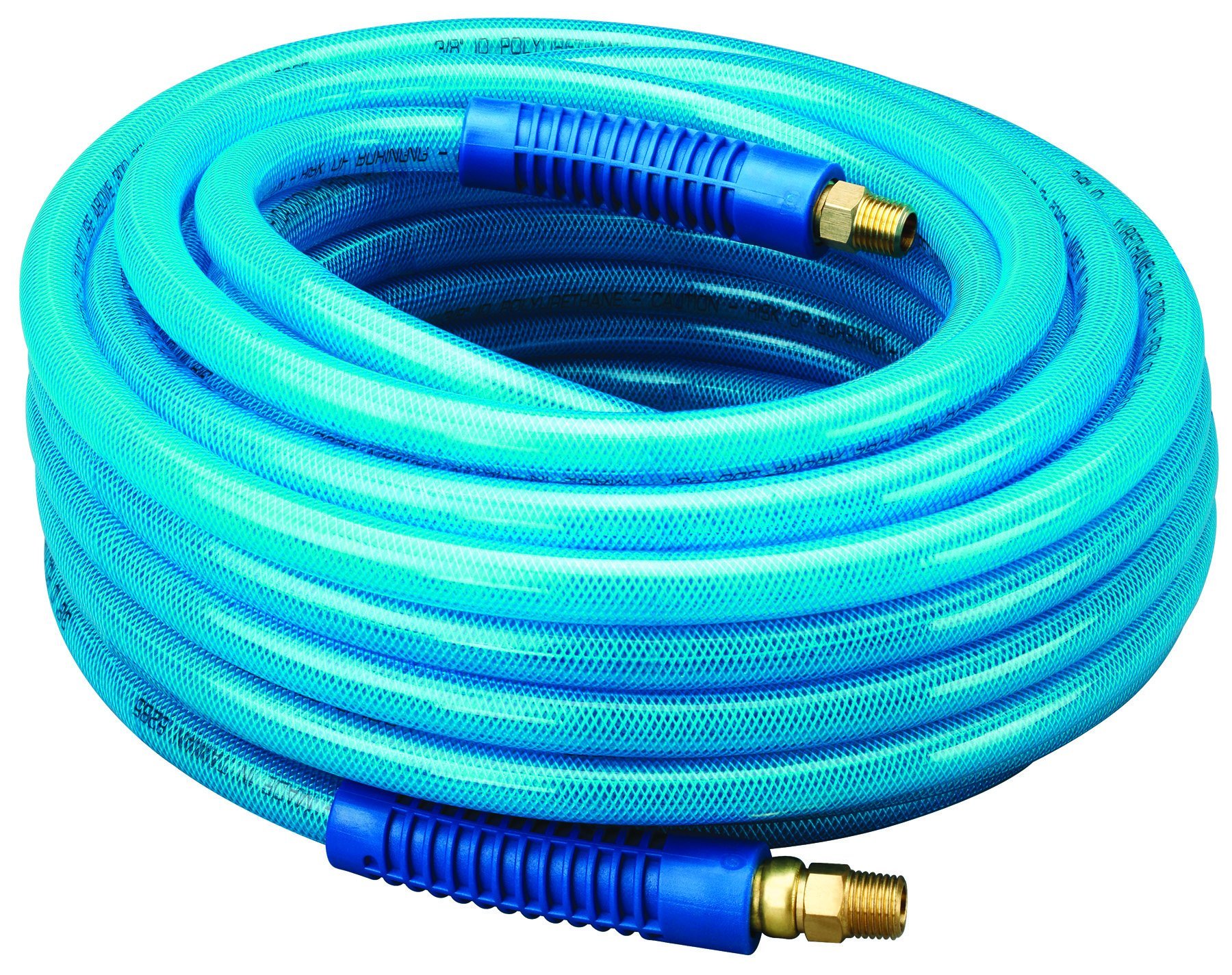

Amflo 13-50AE Blue 300 PSI Polyurethane Air Hose 3/8" x 50' With 1/4" MNPT Swivel Ends And Bend Restrictor Fittings

Be the first to review this item

ASIN B000Q73FW2

Specifications for this item
Inlet Connection Size
0.375  inches
Part Number
13-50AE
Brand Name
Amflo
Inlet Connection Type
Npt Male Swivel
Number of Items
1
Color Name
Blue
Material Type
Polyurethane
UPC
087817130502
Size Name
3/8 inches
EAN
0087817130502
Upper Temperature Range
150  Degrees Fahrenheit
Inside Diameter
0.25  inches
Maximum Pressure
300  PSI
Wall Thickness
0.5  inches
Connector Type
MNPT Swivel
UNSPSC Code
40142002
Overall Length
50.0  feet
LowerTemperature Range
-30  Degrees Fahrenheit

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 25? Order in-stock items in the next 1 day 5 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Reinforced polyurethane air hose for outdoor contractor or indoor industrial use
  • Blue polyurethane tube and cover for durability, flexibility in cold weather and resistance to weathering, abrasion, oil and kinks
  • Braided nylon reinforcement for strength
  • Temperature range of -30 to +150 degrees F
  • Two 1/4" factory-installed, brass male NPT swivel fittings with PVC bend restrictors
  • Blue polyurethane tube and cover for durability, flexibility in cold weather, and resistance to weathering, abrasion, oil, and kinks

Package Details

Shipping Weight: 3.55 pounds
Package Size: 10.5 x 10.5 x 3.5 inches

Product Description

The Amflo 13-50AE blue polyurethane air hose has a 3/8" ID and is 50 ft. long. Its blue tube and cover are made of polyurethane, which has non-marring characteristics and provides resistance to weathering, abrasion, oil, and kinks. This hose provides both durability and flexibility at temperatures ranging from -30 to +150 degrees F. It is reinforced with a nylon braid for the strength necessary to reach and maintain its maximum pressure rating of 300 pounds per square inch (psi), and comes equipped with two 1/4" factory-installed, brass male National Pipe Thread Taper (NPT) swivel fittings with PVC (polyvinyl chloride) bend restrictors that reduce twisting and bending, increasing the life of the hose. This hose is manufactured as a lighter-weight alternative to bulkier rubber and plastic hoses for use in contracting and industrial applications.

Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method:

S = Size (ID, OD, and length)
T = Temperature (maximum and minimum temperatures of material being transported)
A = Application (industry or process)
M = Material (to be conveyed, type and concentration)
P = Pressure (maximum working pressure)
E = Ends (type of end connectors or couplings on hose)
D = Delivery method (volume and velocity)
The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Plews & Edelmann manufactures automotive and pneumatic hose, lines, reels, accessories, fittings, and lubricants under the Edelmann, Amflo, Omega, LubriMatic, and UltraLube brands. The company, founded in 1909, is headquartered in Dixon, IL.
