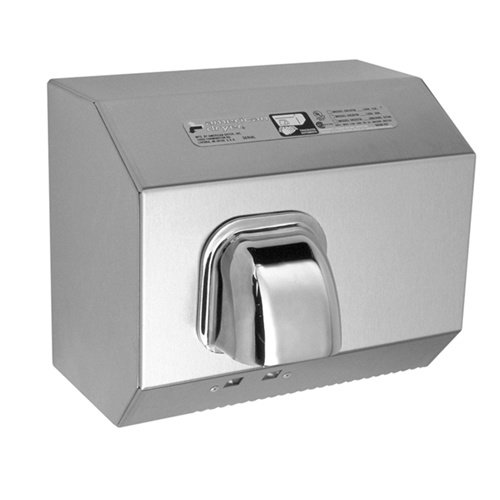

American Dryer DR10TNSS Stainless Steel Cover Automatic Hand Dryer, 110-120V, 1,725W Power, 60Hz

Be the first to review this item

ASIN B005GR3NKG

Specifications for this item
Overall Height
9-1/4  inches
Overall Width
11  inches
Part Number
DR10TNSS
Item Weight
12.79 pounds
Brand Name
American Dryer
Specification Met
UL, C-UL, ANSI 117.1, ADA
Style Name
160 CFM
Number of Items
1
Material Type
Stainless Steel
Wattage
1725  Watts
UPC
609224858567
EAN
0609224858567
Current Rating
15  Amps
Voltage
230  Volts
UNSPSC Code
47131707
Overall Length
8-7/8  inches

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • One-piece, 18 gauge, type 304 stainless steel cover with brushed finish has two tamper resistant screws holding cover to mounting base to help reduce vandalism damage (security hex key included)
  • Air blower motor is a permanently lubricated, maintenance-free, brushless induction motor for reliable service
  • Infrared sensor turns dryer on when hands are under the outlet and off when they aren't to conserve energy and reduce the risk of germ transmission by eliminating need for a manual control
  • Rated for 110-120 V and 60 Hz for use with single-phase power in North America, and 15 A for use in older buildings with limited electrical capacity
  • Chrome-plated air nozzle rotates 360 degrees to allow alternative airflow directions

Package Details

Shipping Weight: 15.2 pounds
Package Size: 12.75 x 11 x 11 inches

Product Description

The American Dryer DR10TNSS stainless steel cover automatic hand dryer has a one-piece, 18 gauge, type 304 stainless steel cover with brushed finish; a permanently lubricated, maintenance-free, brushless induction motor for reliable service; and an infrared sensor that turns the dryer on when hands are under the outlet and off when they aren't to reduce the risk of germ transmission by eliminating the need for a manual control. This hand dryer is rated for 110-120 volts and 60 hertz for use with single-phase power in North America, and 15 amps for use in older buildings with limited electrical capacity. Two tamper resistant screws hold the cover to the mounting base to help reduce vandalism damage (security hex key included), and the air intake vents are shielded for additional protection. The air nozzle is chrome-plated to resist corrosion, and rotates 360 degrees to allow alternative airflow directions. The motor and the heating element unit each have an automatically resetting thermal protector to help reduce the need for parts replacement in case of damage or failure. This hand dryer is compliant with standards for use in the United States and Canada by United Laboratories (UL), and the automatic sensor is compliant with the EU Restriction of Hazardous Substances Directive (RoHS) for environmental and human safety.

Specifications

Motor horsepower1/10 hp
Motor speed3,200 RPM (revolutions per minute)
Air flow160 CFM (cubic feet per minute)
Air velocity5,500 LFM (linear feet per minute)
Air temperature130-145 degrees F at an ambient temperature of 72 degrees F
Automatic shutoff time60 seconds
Sound level71 dB
Voltage rating110-120 volts
Amperage rating15 amps
Wattage1,725 watts
Cycle60 hertz
Overall dimensions*9-1/4 x 11 x 8-7/8 inches (H x W x D)

*H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Hand dryers have electric motors that blow heated air to dry hands with. They are mounted on a wall, and are hard wired to a dedicated electrical circuit. Hand dryers are typically installed in high traffic or public restrooms to reduce the costs associated with providing high volumes of clean towels and removing used ones.

World Dryer manufactures hand dryers, hair dryers, and baby-changing stations. The company, founded in 1948, is headquartered in Berkeley, IL.
