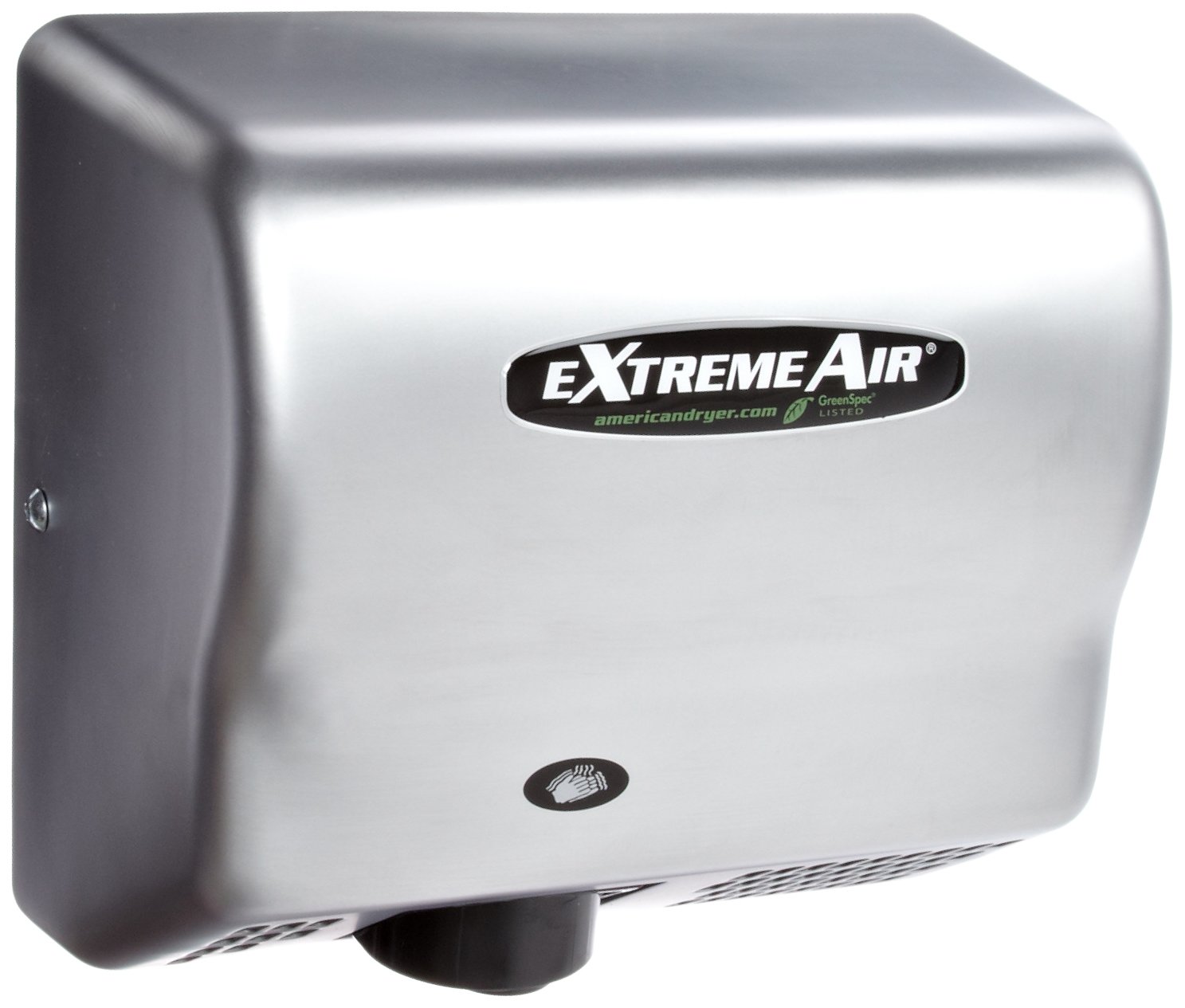

American Dryer ExtremeAir EXT7-C Steel Cover High-Speed Automatic Hand Dryer, 12-15 Second Dries, 100-240V, 540W Maximum Power, 50/60Hz, Satin Chrome Finish

Be the first to review this item

ASIN B005GR3N3S

Specifications for this item
Number of Items
1
Overall Height
9-3/8  inches
Overall Width
10-1/8  inches
Wattage
540  Watts
Color Name
Satin Chrome
Material Type
Steel
Part Number
EXT7-C
UPC
609224858444
Brand Name
American Dryer
EAN
0609224858444
Specification Met
UL, C-UL, GreenSpec, Greener Product, LEED Credits, ANSI 117.1, ADA
UNSPSC Code
47131707
Overall Length
5-5/8  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 1 day 20 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • One-piece steel cover with satin chrome finish for corrosion resistance has two tamper resistant screws holding cover to mounting base to help reduce vandalism damage (security hex key included)
  • Universal motor for high starting torque provides 12-second estimated drying times, with adjustable speed that enables reduction of sound output from 83 dB to 69 dB
  • Infrared sensor turns dryer on when hands are under the outlet and off when they aren't to conserve energy and reduce the risk of germ transmission by eliminating need for a manual control
  • Rated for 100-240 V and 50/60 Hz for global wiring system compatibility, and has no heating element so uses much less electricity and does not require a dedicated circuit
  • Silver-based antimicrobial compound infused into internal plastic components helps inhibit growth of biofilm and mold and extend the operating life of the dryer

Package Details

Shipping Weight: 9.25 pounds
Package Size: 11.2 x 10.5 x 6.7 inches

Product Description

The American Dryer ExtremeAir EXT7-C steel cover high-speed automatic hand dryer has a one-piece steel cover with satin chrome finish for corrosion resistance; has no heating element and so uses only 540 watts at its highest speed, providing the ability to connect up to three units on a single circuit; and has an infrared sensor that turns the dryer on when hands are under the outlet and off when they aren't to conserve energy and reduce the risk of germ transmission by eliminating the need for a manual control. It is powered by an adjustable-speed universal motor for high starting torque that provides 12-second estimated drying times at its highest speed and the ability to reduce the dryer's sound output from 83 dB to 69 dB, and to reduce the power use to 300 watts. This hand dryer is rated for 100-240 volts and 50/60 hertz for global wiring system compatibility. Two tamper resistant screws hold the cover to the steel mounting base to help reduce vandalism damage (security hex key included), and the air intake vents are shielded for additional protection.

This hand dryer has a silver-based antimicrobial compound infused into internal plastic components to help inhibit the growth of biofilm and mold and extend the operating life of the dryer. The motor has an automatically resetting thermal protector to help reduce the need for parts replacement in case of damage or failure. The automatic sensor is compliant with the EU Restriction of Hazardous Substances Directive (RoHS) for environmental and human safety. This hand dryer can help earn Leadership in Energy and Environmental Design (LEED) credits, is GreenSpec listed for better energy efficiency than conventional dryers, and is compliant with standards for use in the United States and Canada by United Laboratories (UL).

Specifications

Motor horsepower5/8 hp
Motor speed14,000-28,000 RPM (revolutions per minute)
Air velocity10,000-16,000 LFM (linear feet per minute)
Air temperature85 degrees F at an ambient temperature of 72 degrees F
Automatic shutoff time35 seconds
Sound level69-83 dB
Voltage rating100-240 volts
Amperage ratingWith 120 V input: 4.5 amps
With 240 V input: 2.3 amps
Wattage300-540 watts
Cycle50/60 hertz
Overall dimensions*9-3/8 x 10-1/8 x 5-5/8 inches (H x W x D)

*H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Hand dryers have electric motors that blow heated air to dry hands with. They are mounted on a wall, and are hard wired to a dedicated electrical circuit. Hand dryers are typically installed in high traffic or public restrooms to reduce the costs associated with providing high volumes of clean towels and removing used ones.

World Dryer manufactures hand dryers, hair dryers, and baby-changing stations. The company, founded in 1948, is headquartered in Berkeley, IL.
