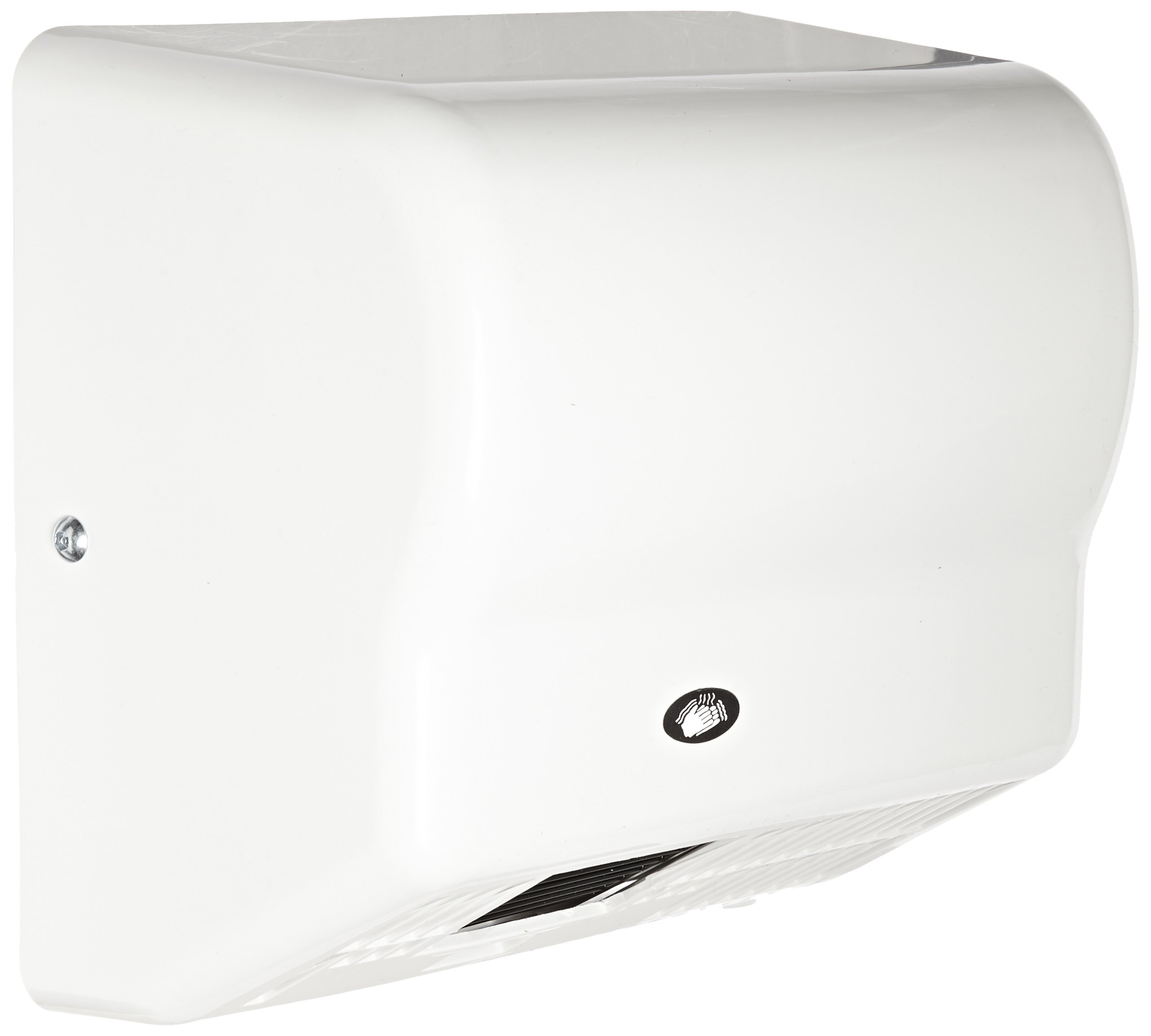

American Dryer Global GX3 ABS Cover Automatic Hand Dryer, 208-240V, 1,500W Power, 50/60Hz, White

Be the first to review this item

ASIN B004FNZ3RS

Specifications for this item
Overall Height
9-3/8  inches
Overall Width
10-1/8  inches
Part Number
GX3
Item Weight
7 pounds
Brand Name
American Dryer
Specification Met
UL, C-UL, ANSI 117.1, ADA
Style Name
130 CFM
Number of Items
1
Material Type
Acrylonitrile Butadiene Styrene (ABS)
Color Name
White
Wattage
1500  Watts
UPC
609224858321
EAN
0609224858321
Current Rating
6  Amps
UNSPSC Code
47131707
Overall Length
5-5/8  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 19 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • One-piece, flame retardant, white ABS plastic cover for impact and wear resistance has two tamper resistant screws holding cover to mounting base to help reduce vandalism damage (security hex key included)
  • Air blower motor is a permanently lubricated, maintenance-free, brushless induction motor with automatically resetting thermal protector for reliable service
  • Infrared sensor turns dryer on when hands are under the outlet and off when they aren't to conserve energy and reduce the risk of germ transmission by eliminating need for a manual control
  • Rated for 208-240 V and 50/60 Hz for use outside of North America, or with three-phase power, commonly found in commercial/light industrial buildings in North America

Package Details

Shipping Weight: 7.85 pounds
Package Size: 11.5 x 10.4 x 6.8 inches

Product Description


Dry time of 40 seconds. Heavy duty, White ABS one piece cover. Vandal resistant design features 2 Tamper-resistant screws that secure cover to base. Air intake vents are shielded for additional safety. The Motor is permanently lubricated, maintenance free, brushless induction motor with automatic resetting thermal protector. 1/12 HP, 3100 RPM. Energy -efficient, microprocessor-controlled sensor turns dryer on when hands are under the outlet for up to 60 seconds. Standby power is only one watt. Features RoHS compliant lead-free design. Heating element is constructed of NiChrome resistance wire with thermal protector. Heating element operates in the black range for maximum life. 2-year limited warranty includes same day factory repair or replacement of part.

Specifications

Motor horsepower 1/12 hp
Dry Time
40 Seconds
Air flow 130 CFM (cubic feet per minute)
Air velocity 4,000 LFM (linear feet per minute)
Air temperature 120 degrees F at an ambient temperature of 72 degrees F
Automatic shutoff time 80 seconds
Sound level 63 dB
Voltage rating 208/240 volts
Amperage rating 6 amps
Wattage 1,500 watts
Cycle 50/60 hertz
Overall dimensions* 9-3/8 x 10-1/8 x 5-5/8 inches (H x W x D)

*H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Hand dryers have electric motors that blow heated air to dry hands with. They are mounted on a wall, and are hard wired to a dedicated electrical circuit. Hand dryers are typically installed in high traffic or public restrooms to reduce the costs associated with providing high volumes of clean towels and removing used ones.Search for ExtremeAir Hand Dryer to learn more about our complete line of high speed hand dryers.

American Dryer's have been manufacturing quality hand dryers since 1952.
