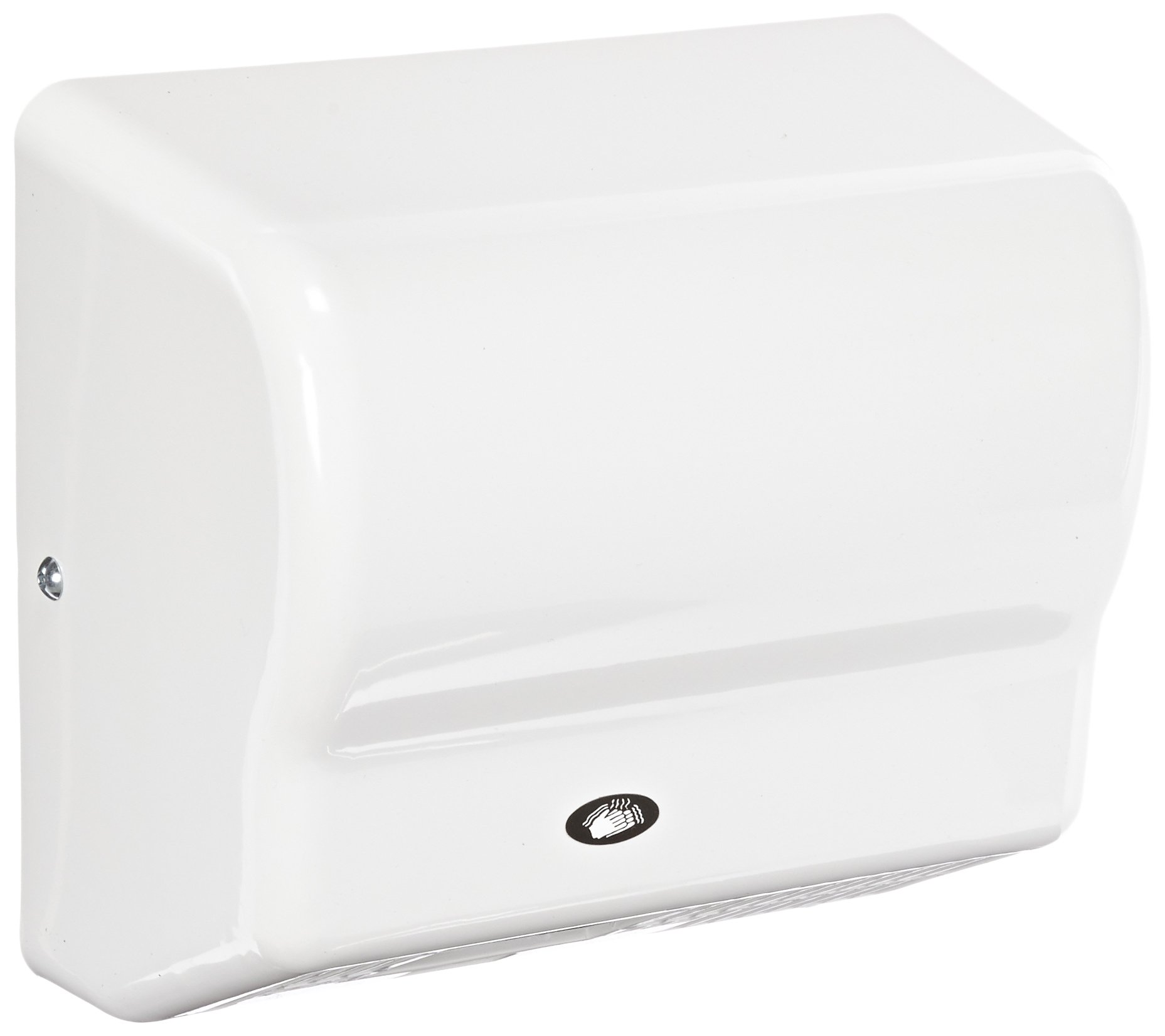

American Dryer Global GX1 ABS Cover Automatic Hand Dryer, 110-120V, 1,500W Power, 50/60Hz, White

Be the first to review this item

ASIN B000CBUJ1W

Specifications for this item
Overall Height
9-3/8  inches
Overall Width
10-1/8  inches
Part Number
GX1
Item Weight
7 pounds
Brand Name
American Dryer
Specification Met
UL, C-UL, ANSI 117.1, ADA
Style Name
130 CFM
Number of Items
1
Material Type
Acrylonitrile Butadiene Styrene (ABS)
Color Name
White
Wattage
1500  Watts
UPC
609224858291
EAN
0609224858291
Current Rating
12  Amps
UNSPSC Code
47131707
Overall Length
5-5/8  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 9 hrs 6 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • One-piece, flame retardant, white ABS plastic cover for impact and wear resistance has two tamper resistant screws holding cover to mounting base to help reduce vandalism damage (security hex key included)
  • Air blower motor is a permanently lubricated, maintenance-free, brushless induction motor with automatically resetting thermal protector for reliable service
  • Infrared sensor turns dryer on when hands are under the outlet and off when they aren't to conserve energy and reduce the risk of germ transmission by eliminating need for a manual control
  • Rated for 110-120 V and 50/60 Hz for use with single-phase power in North America

Package Details

Shipping Weight: 7.8 pounds
Package Size: 11.3 x 10.4 x 6.8 inches

Product Description

The American Dryer Global GX1 ABS cover automatic hand dryer has a one-piece, flame retardant, white ABS plastic cover for impact and wear resistance; a permanently lubricated, maintenance-free, brushless induction motor for reliable service; and an infrared sensor that turns the dryer on when hands are under the outlet and off when they aren't to reduce the risk of germ transmission by eliminating the need for a manual control. This hand dryer is rated for 110-120 volts and 50/60 hertz for use with single-phase power in North America. Two tamper resistant screws hold the cover to the mounting base to help reduce vandalism damage (security hex key included), and the air intake vents are shielded for additional protection.

The motor and the heating element unit each have an automatically resetting thermal protector to help reduce the need for parts replacement in case of damage or failure. The automatic sensor is compliant with the EU Restriction of Hazardous Substances Directive (RoHS) for environmental and human safety. This hand dryer is compliant with standards for use in the United States and Canada by United Laboratories (UL). To comply with Americans with Disabilities Act of 1990 (ADA) Standards for Accessible Design and International Code Council (ICC)/American National Standards Institute (ANSI) A117.1 Accessible and Usable Buildings and Facilities standards, the hand dryer can be installed with a recess installation kit (sold separately).

Specifications

Motor horsepower1/12 hp
Motor speed3,100 RPM (revolutions per minute)
Air flow130 CFM (cubic feet per minute)
Air velocity4,500 LFM (linear feet per minute)
Air temperature130 degrees F at an ambient temperature of 72 degrees F
Automatic shutoff time80 seconds
Sound level63 dB
Voltage rating110-120 volts
Amperage rating12 amps
Wattage1,500 watts
Cycle50/60 hertz
Overall dimensions*9-3/8 x 10-1/8 x 5-5/8 inches (H x W x D)

*H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Hand dryers have electric motors that blow heated air to dry hands with. They are mounted on a wall, and are hard wired to a dedicated electrical circuit. Hand dryers are typically installed in high traffic or public restrooms to reduce the costs associated with providing high volumes of clean towels and removing used ones.

World Dryer manufactures hand dryers, hair dryers, and baby-changing stations. The company, founded in 1948, is headquartered in Berkeley, IL.
