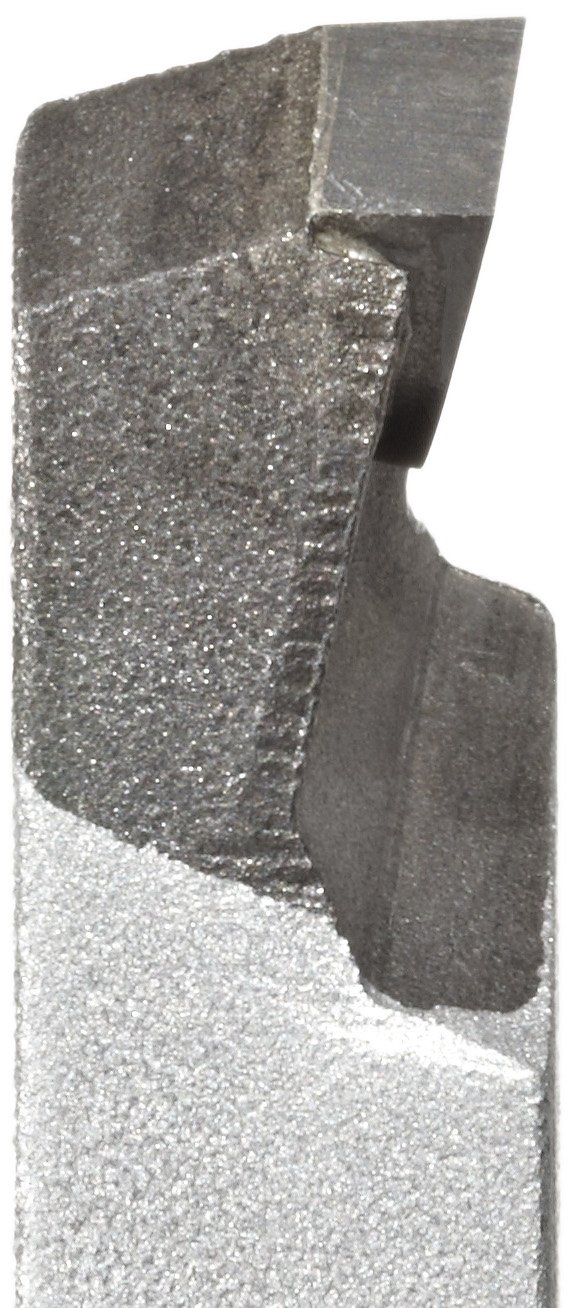

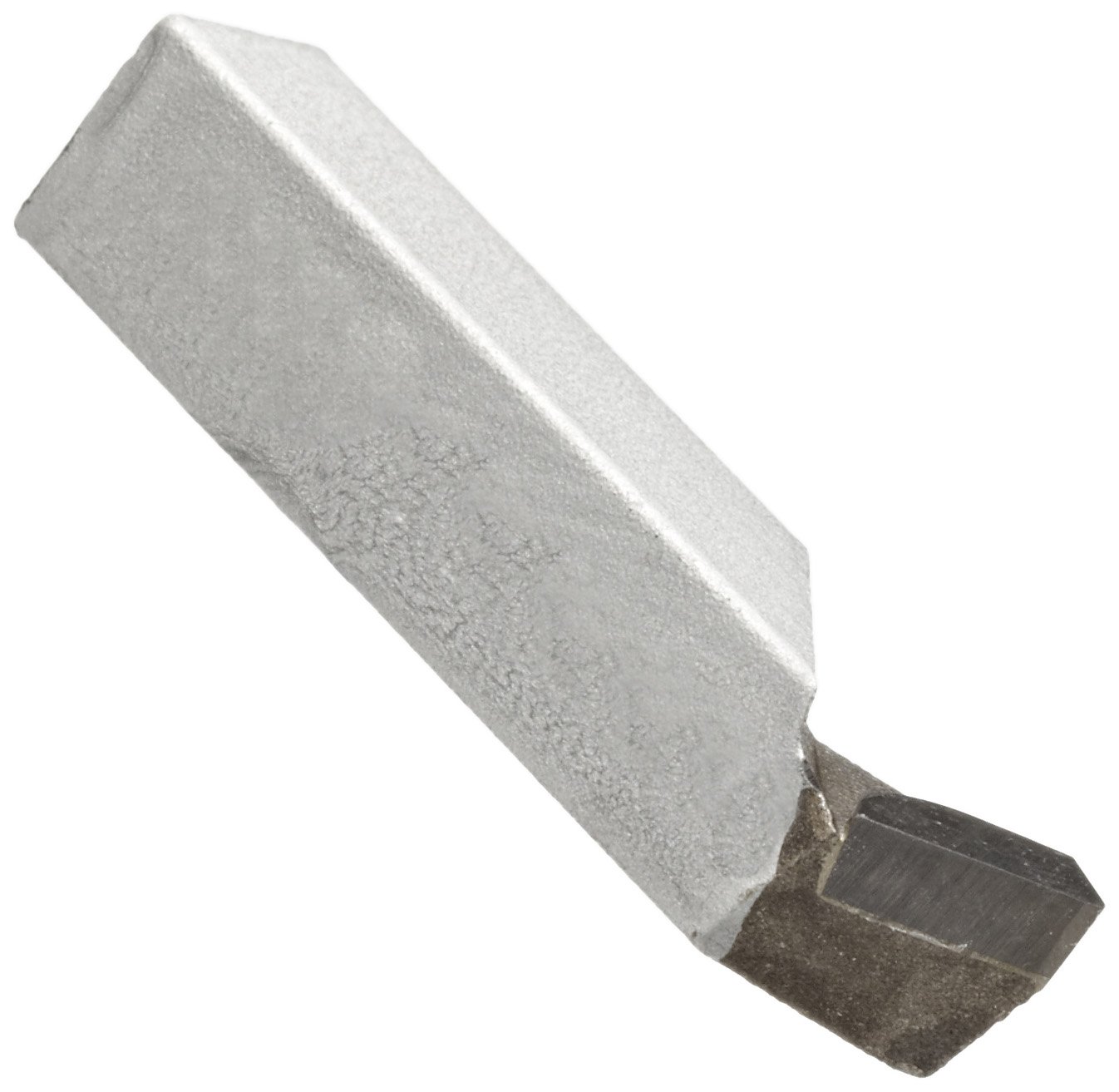

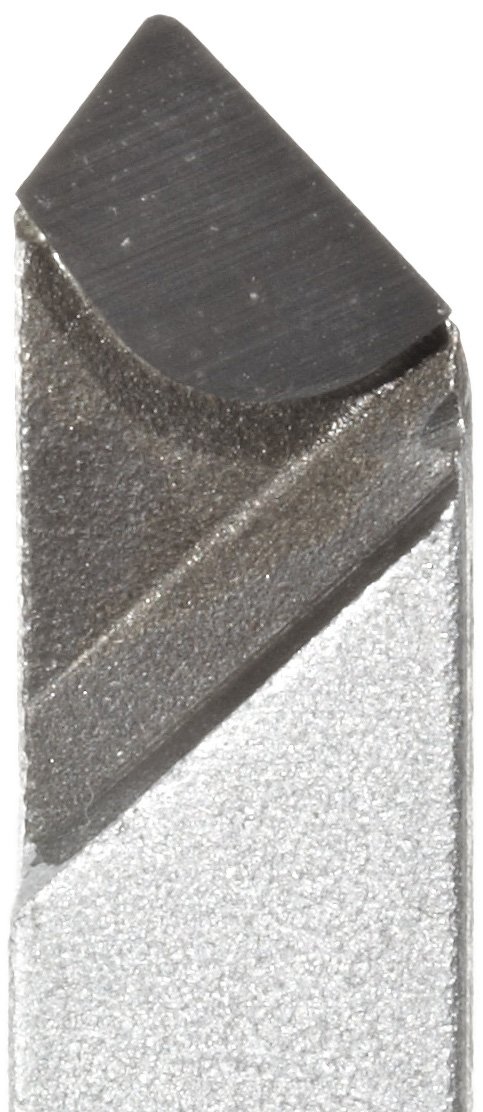

Click for larger image and other views

How can we improve our images or Product Specifications?

American Carbide Tool Carbide Tipped Tool Bit, for 30 & 45 Degree Boring, Neutral, 883 Grade, 5/16-Inch Square Shank, TSE 5 Style

Be the first to review this item

ASIN B001F8CFMC

Specifications for this item
Number of Items
1
Item Shape
TSE 5
Material Type
Carbide Tipped
Part Number
TSE 5 883
UPC
726761587030
Brand Name
American Carbide Tool
EAN
0726761587030
Shank Type
Square
UNSPSC Code
23241600

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 14 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • TSE-style tool shape can be used for boring to a square shoulder in 45-degree boring bars or with a 15-degree lead angle in 30-degree boring bars
  • Carboloy 883 grade uncoated carbide tip for machining of cast iron and nonferrous materials
  • Left-hand cutting direction for left-to-right feed
  • High positive rake angle provides a sharp edge for making continuous cuts
  • Square steel shank fits square toolholders

Package Details

Shipping Weight: 0.04 pounds
Package Size: 1.8 x 0.8 x 0.5 inches

Product Description

The American Carbide Tool TSE-style 883 grade carbide-tipped brazed tool bit has a left-hand cutting direction for boring to a square shoulder in 45-degree bars on cast iron and nonferrous materials. The TSE-style tool shape has a 45-degree side cutting angle, a left-hand cutting direction for left-to-right feed, and a high positive, 12-degree rake angle that provides a sharp edge for making continuous cuts. The tool can also be used with a 15-degree lead angle to bore to a shoulder in 30-degree bars. The tool has a Carboloy 883 grade uncoated carbide tip, which provides good resistance to wear for machining on cast iron and nonferrous materials. Carbide is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. The tip is brazed to a square steel shank that fits square toolholders.

Brazed tools, often called single-point brazed carbide-tipped tools, are used for metal shaping on lathes or screw machines. These single-point tools have a cutting edge at one end that is a carbide tip brazed to a steel shaft. They come in multiple geometry styles for cutting different shapes and are identified by a lettering standard that conforms to American National Standards Institute (ANSI) B212.1 specifications. The tool has a side cutting edge and end cutting edge, with the tool shape style defining which cutting edge is principal and auxiliary. Brazed tools are available in three hand options: right, left, and neutral. A right-hand tool has its principal cutting edge on the right side of the tool to feed into the workpiece from right to left, a left-hand tool feeds into the workpiece from left to right, and a neutral-hand tool will cut either left to right or right to left. The side cutting and end cutting edge angles, in combination with the angle at which the tool is positioned in relation to the workpiece (also called the lead angle), influence the tool's cutting shape and action. Rake angles are the degree of inclination of the face toward or away from the cutting edge. They may be positive for sharp, continuous cuts, negative for heavy, interrupted cuts, or neutral for a true 90-degree cut. The tip, or nose, of the tool performs the finish cut on the workpiece. In general, a larger tip radius will produce a better surface finish and permit a faster feed rate than a smaller tip radius.

American Carbide Tool manufactures standard single-point brazed carbide-tipped tools, and precision ground cutting tools and inserts. The company, founded in 1953, is headquartered in Canton, OH.
