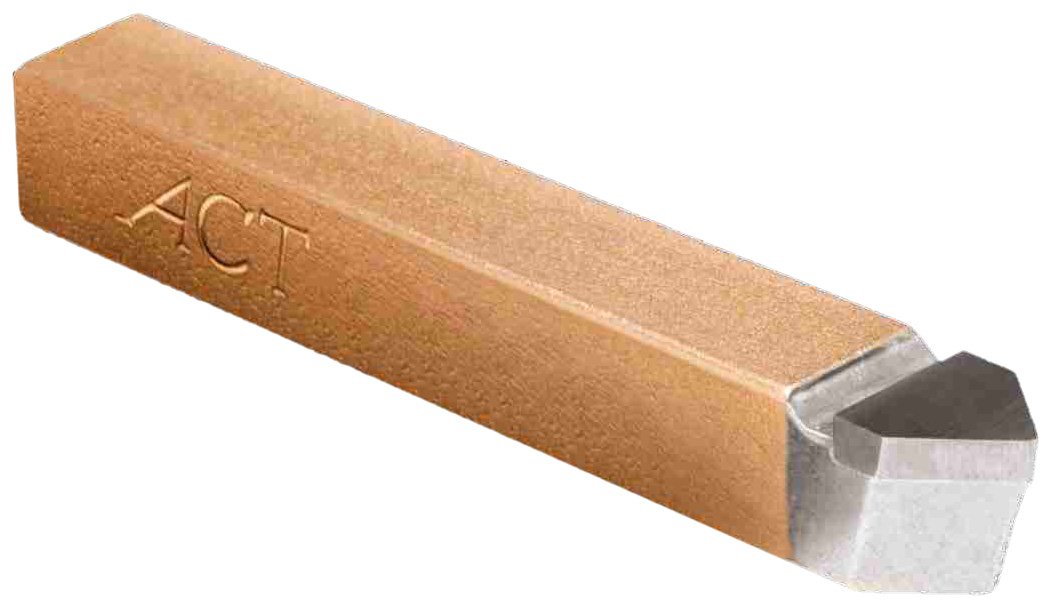

Click for larger image and other views

How can we improve our images or Product Specifications?

American Carbide Tool Carbide-Tipped Pointed Nose Lathe Tool Bit, D Style, Neutral Hand, C5 Grade, 0.3125" Square Shank, D 5 Size

Be the first to review this item

ASIN B0035G0128

Specifications for this item
Item Shape
D
Part Number
D 5 C5
Shank Width
0.3125  inches
Brand Name
American Carbide Tool
Industry Standard Identifier
D 5
Style Name
Pointed Nose Utility
Shank Material Type
Steel
Hand Orientation
Neutral
Number of Items
1
Material Type
Carbide-Tipped
UPC
726761530470
Size Name
D 5
EAN
0726761530470
Manufacturer Grade
C5
Shank Type
Square
Lead Angle
7  Degrees
UNSPSC Code
23241600
Corner Radius
0.015625  inches
Overall Length
2.25  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 13 hrs 59 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • D style carbide-tipped lathe tool bit has a pointed tip with an 80-degree included angle for light turning, undercutting, chamfering, and boring
  • Neutral handed for right-to-left or left-to-right feed
  • C5 grade uncoated carbide tip provides good resistance to shock and wear for use on soft steel and steel alloys
  • Tip is brazed onto steel shank for strength
  • Square shank fits square toolholders

Package Details

Shipping Weight: 0.05 pounds
Package Size: 4 x 1 x 0.5 inches

Product Description

The American Carbide Tool carbide-tipped pointed nose lathe tool bit has a D style with a neutral-hand cutting direction and a C5 grade for light turning, undercutting, chamfering, and boring applications on soft steel and steel alloys. The D style, also called pointed nose, tool shape has an 80-degree included angle and provides a neutral-hand cutting direction for right-to-left or left-to-right feed. The tool tip is made of C5 grade uncoated carbide for good resistance to shock and wear and is brazed onto a steel shank for strength. The square shank fits square toolholders.

Brazed tools, also called carbide-tipped lathe tool bits and single-point brazed carbide-tipped tools, are used for metal shaping on lathes. These single-point tools have a cutting edge at one end that is a carbide tip brazed to a steel shaft. They come in multiple geometry styles for different cutting applications and are identified by a lettering standard that conforms to American National Standards Institute (ANSI) B212.1 specifications. Brazed tools are available in three hand options: right, left, and neutral. A right-hand tool has its principal cutting edge on the right side of the tool to feed into the workpiece from right to left, a left-hand tool feeds into the workpiece from left to right, and a neutral-hand tool will cut either left to right or right to left. The side cutting and end cutting edge angles, in combination with the angle at which the tool is positioned in relation to the workpiece (also called the lead angle), help determine the tool's cutting shape and action.

American Carbide Tool manufactures standard single-point brazed carbide-tipped tools, and precision ground cutting tools and inserts. The company, founded in 1953, is headquartered in Canton, OH.
