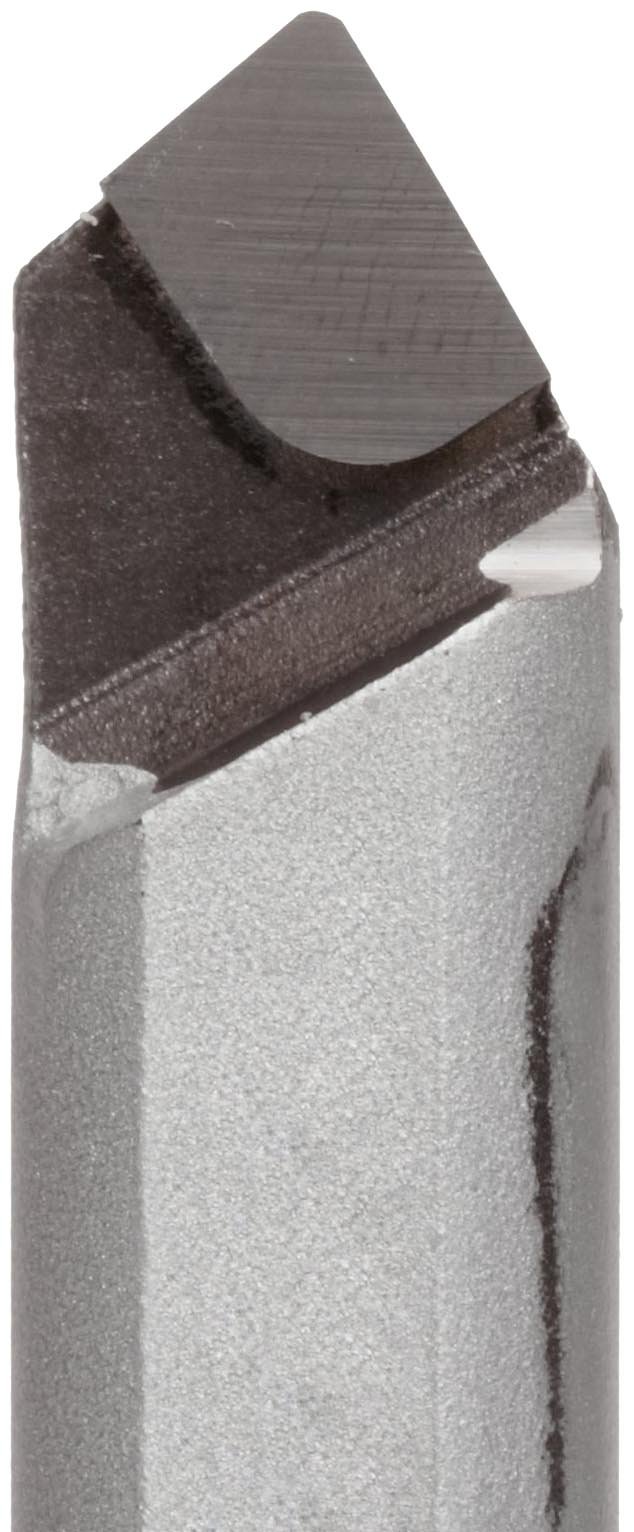

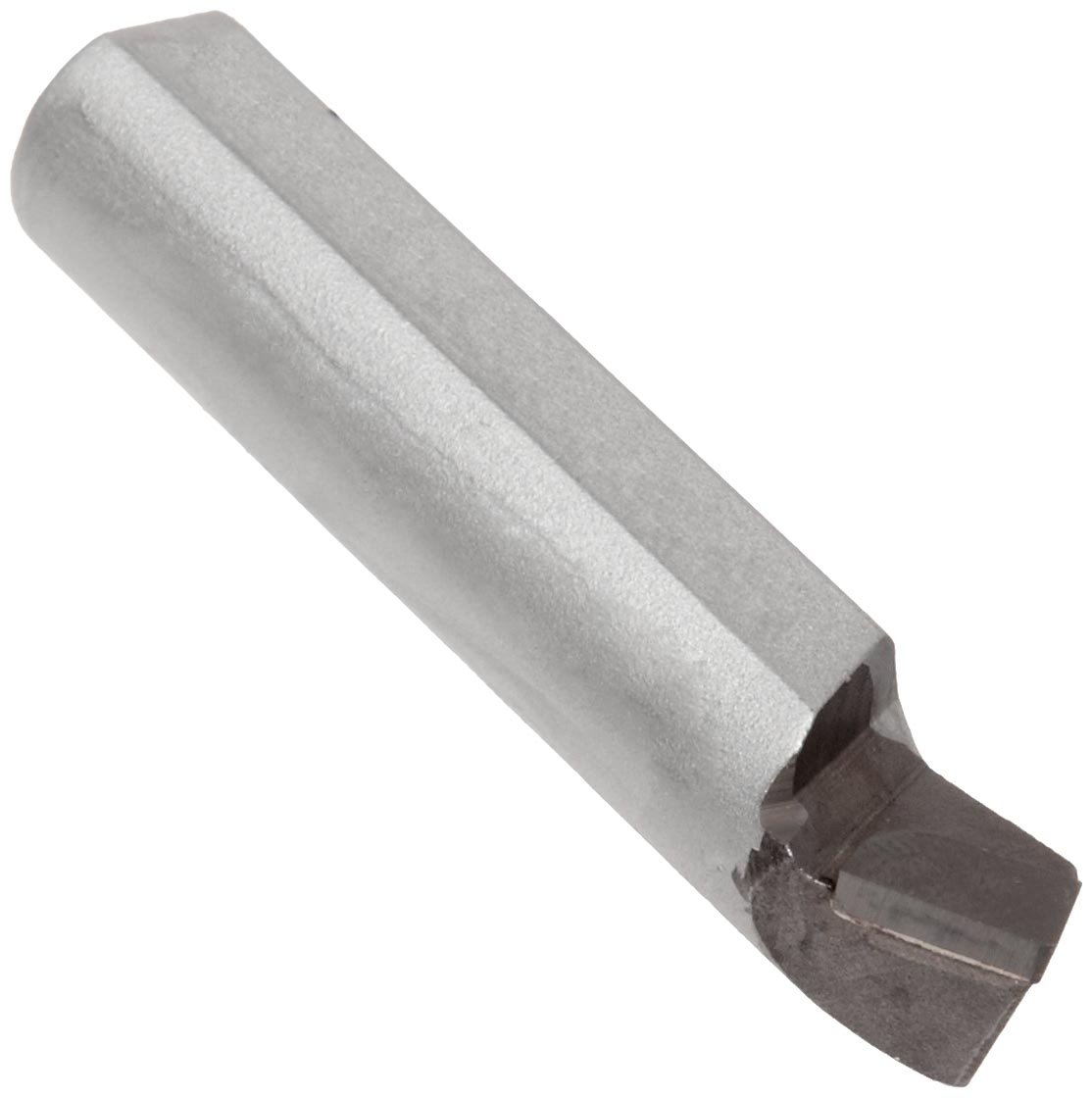

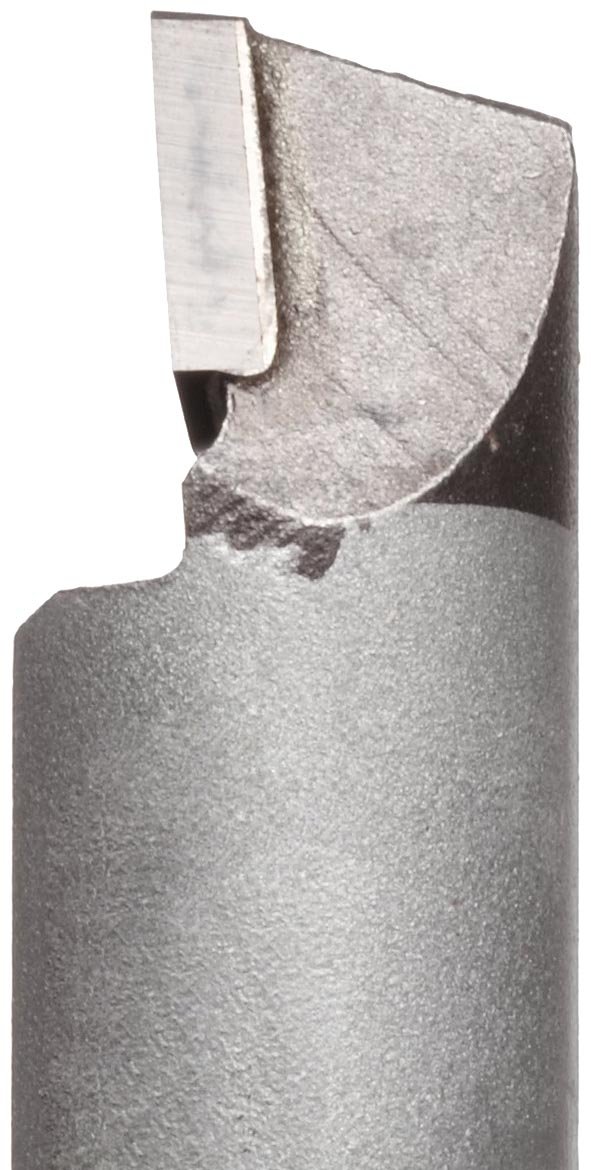

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

American Carbide Tool Carbide-Tipped Tool Bit for 30 Degree Boring, Right Hand, C2 Grade, TRC Style

Be the first to review this item

Product Specifications
Item Shape
TRC
Material Type
Carbide-Tipped
Brand Name
American Carbide Tool
Manufacturer Grade
C2
Shank Type
Round
Lead Angle
6  Degrees
Shank Material Type
Steel
UNSPSC Code
23241600
Style Name
30 Degree Boring
Hand Orientation
Right Hand

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 17 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-2 of 2
TRC 5 B00365FCYK yes $7.38 Buy Options
TRC 8 B0006Q6SOA yes $10.16 Buy Options

Key Features

  • TRC-style tool shape can be used for boring to a square shoulder in 30-degree bars
  • C2 grade uncoated carbide tip for machining of cast iron and nonferrous materials
  • Left-hand cutting direction for left-to-right feed
  • Positive rake angle provides a sharp edge for making continuous cuts
  • Round steel shank fits round toolholders

Product Description

The American Carbide Tool TRC-style C2 grade carbide-tipped brazed tool bit has a left-hand cutting direction for boring to a square shoulder in 30-degree bars on cast iron and nonferrous materials. The TRC-style tool shape has a 30-degree side cutting angle and a positive, 6-degree rake angle that provides a sharp edge for making continuous cuts. It also has a left-hand cutting direction for left-to-right feed. The tool has a C2 grade uncoated carbide tip, which provides good resistance to shock and wear for machining on cast iron and nonferrous materials. Carbide is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. The tip is brazed to a round steel shank that fits round toolholders.

Brazed tools, often called single-point brazed carbide-tipped tools, are used for metal shaping on lathes or screw machines. These single-point tools have a cutting edge at one end that is a carbide tip brazed to a steel shaft. They come in multiple geometry styles for cutting different shapes and are identified by a lettering standard that conforms to American National Standards Institute (ANSI) B212.1 specifications. The tool has a side cutting edge and end cutting edge, with the tool shape style defining which cutting edge is principal and auxiliary. Brazed tools are available in three hand options: right, left, and neutral. A right-hand tool has its principal cutting edge on the right side of the tool to feed into the workpiece from right to left, a left-hand tool feeds into the workpiece from left to right, and a neutral-hand tool will cut either left to right or right to left. The side cutting and end cutting edge angles, in combination with the angle at which the tool is positioned in relation to the workpiece (also called the lead angle), influence the tool's cutting shape and action. Rake angles are the degree of inclination of the face toward or away from the cutting edge. They may be positive for sharp, continuous cuts, negative for heavy, interrupted cuts, or neutral for a true 90-degree cut. The tip, or nose, of the tool performs the finish cut on the workpiece. In general, a larger tip radius will produce a better surface finish and permit a faster feed rate than a smaller tip radius.

American Carbide Tool manufactures standard single-point brazed carbide-tipped tools, and precision ground cutting tools and inserts. The company, founded in 1953, is headquartered in Canton, OH.
