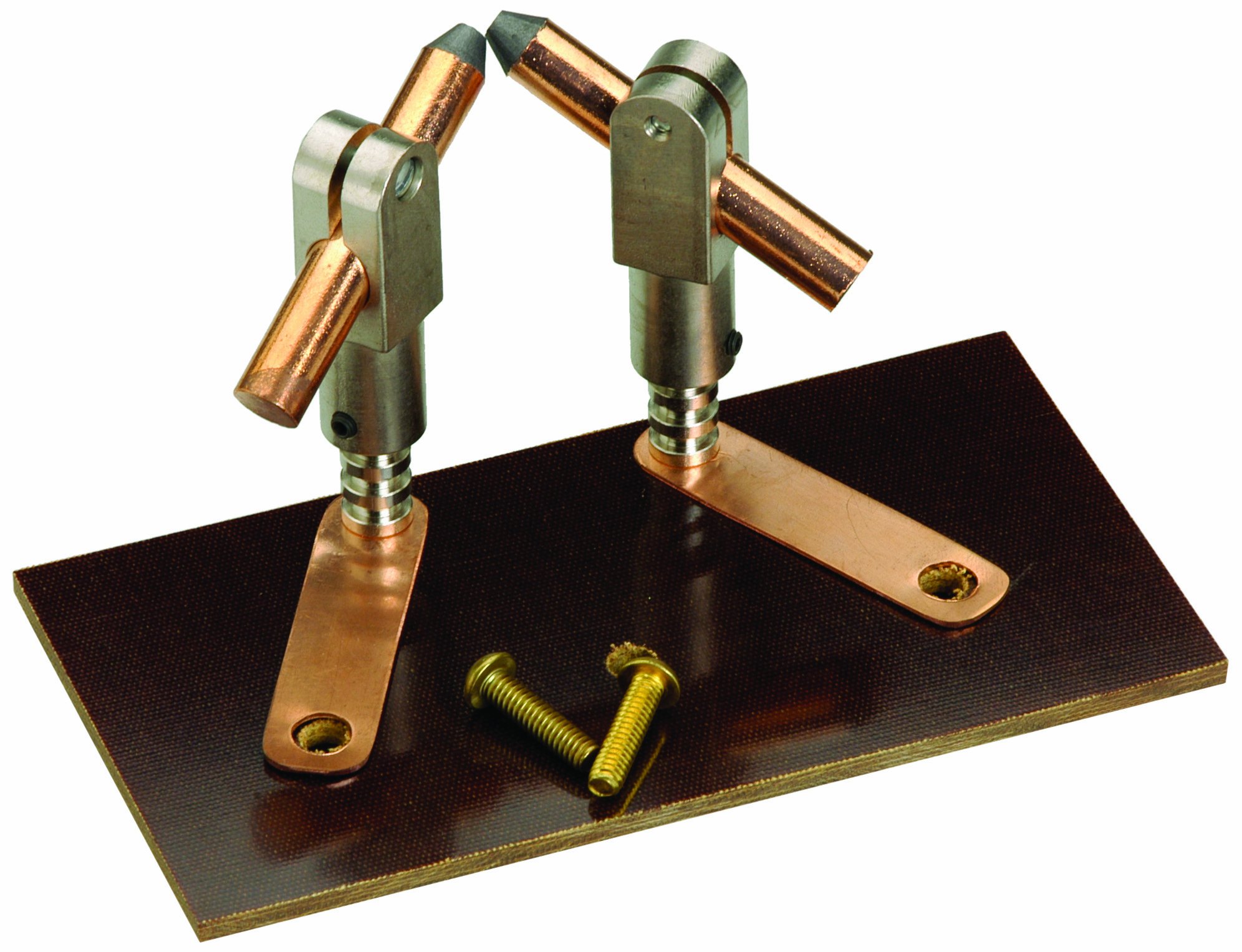

American Beauty 10513A Fixed Dual Probe Style Power Unit Attachment, 1/2" Electrode

Be the first to review this item

ASIN B007S2162Y

Specifications for this item
Number of Items
1
Part Number
10513A
Brand Name
American Beauty Tools
Size Name
1/2" Electrode
UNSPSC Code
23271800

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 13 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Copper-coated carbon electrodes can be easily notched/shaped, allowing the user to customize the handpiece to their specific application
  • RoHS compliant
  • Tapered pins connection type
  • These useful accessories attach directly to power units for production applications
  • 1/2" Electrode size

Package Details

Shipping Weight: 1.2 pounds
Package Size: 8.2 x 6.5 x 4.7 inches

Product Description

The widest selection of resistance soldering handpieces in the world. Hand pieces are designed and built to provide absolute performance in even the toughest environments. By generating heat instantaneously and right at the point of contact, you are able to easily handle the historically difficult soldering jobs. Stationary dual carbon electrode panel attachment for mounting to the front of your resistance soldering power unit. Model 10513A attaches to American Beauty Model 105B2 power unit (1,100 Watts) by using 1/4-20 brass screws in any two of three output terminals (choose the correct terminals for the desired output). Model 10513B attaches to American Beauty. These useful accessories attach directly to power units for production applications. For instance, if solder joints are to be made on two terminals on a nearly-completed power relay, hold the relay with the right hand and pass the relay between the electrodes while applying solder with the left hand and cycling on the power with the Model 10519 footswitch. Hundreds of accurate repeat joints can be made this way once the job is properly set up.
