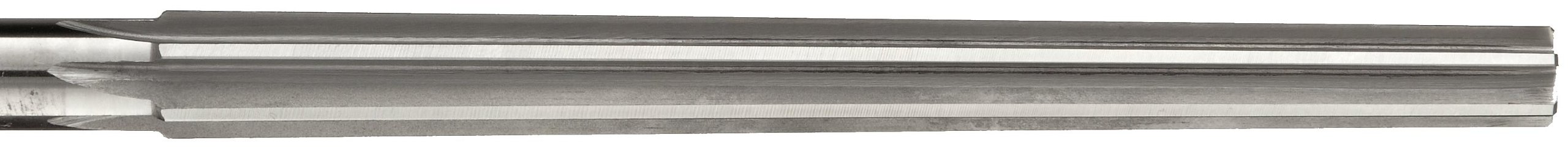

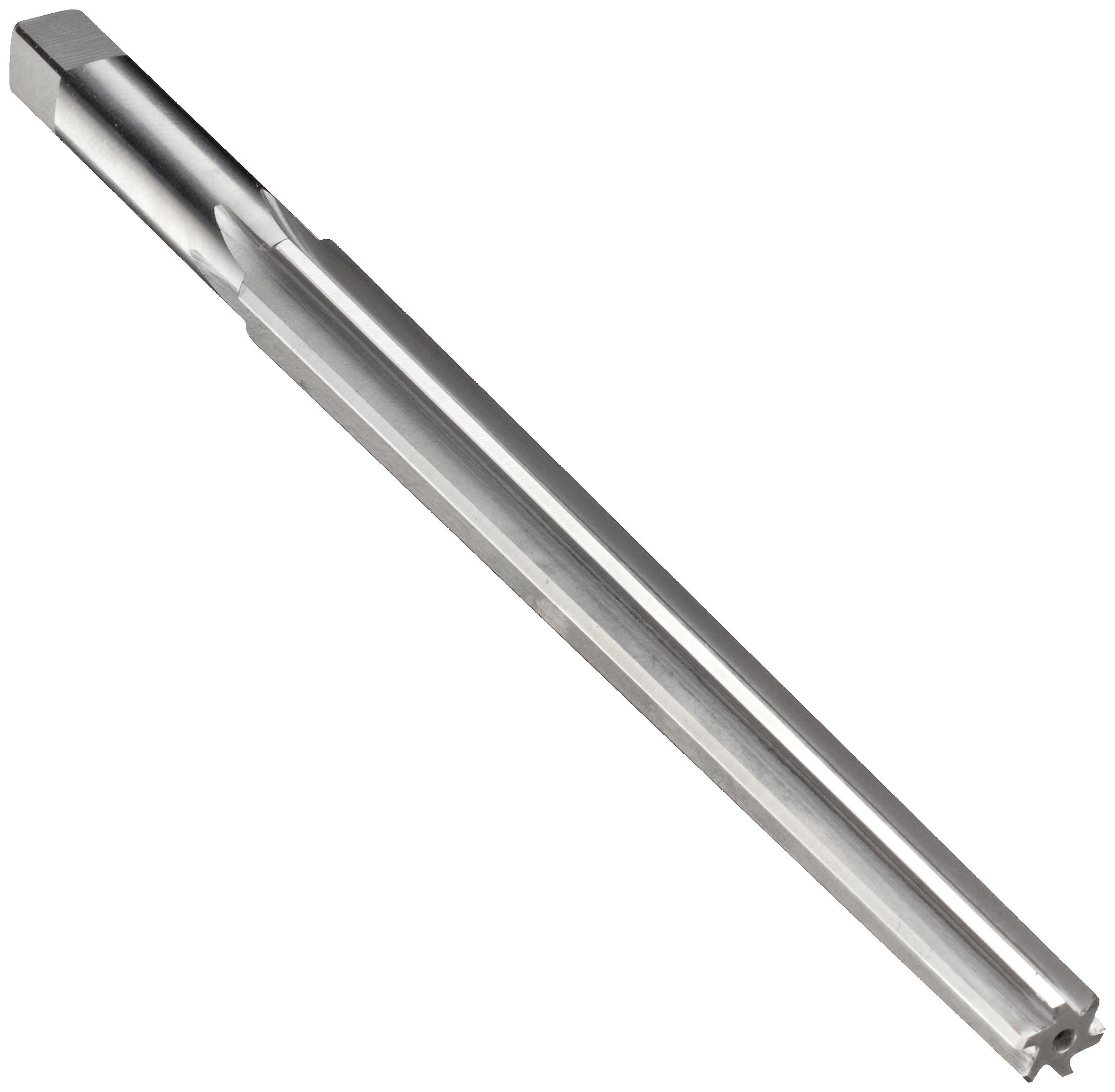

Alvord Polk 155-0 High-Speed Steel Taper Pin Reamer, Straight Flute, Round Shank, Uncoated (Bright)

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High Speed Steel
UNSPSC Code
23241617
Brand Name
Alvord Polk
Flute Type
Straight

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 1? Order in-stock items in the next 12 hrs 2 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-17 of 17
0 Taper Pin 0.1287-0.1638" 2-15/16" 00806 B002PHNAB2 1 $26.47 Buy Options
1 Taper Pin 0.1447-0.1798" 2-15/16" 00807 B002PHNABC 1 $24.95 Buy Options
2 Taper Pin 0.1605-0.2008" 3-3/16" 00808 B002PHNABM 1 $27.43 Buy Options
3 Taper Pin 0.1813-0.2294" 3-11/16" 00809 B002PHNABW 2 $26.91 Buy Options
4 Taper Pin 0.2071-0.2604" 4-1/16" 00810 B002PHNAC6 1 $27.93 Buy Options
5 Taper Pin 0.2409-0.2994" 4-5/16" 00811 B002PHNACQ 3 $32.43 Buy Options
6 Taper Pin 0.2773-0.3540" 5-7/16" 00812 B002PHNAD0 2 $31.88 Buy Options
7 Taper Pin 0.3297-0.4220" 6-5/16" 00813 B002PHNADA 1 $42.10 Buy Options
8 Taper Pin 0.3971-0.5050" 7-3/16" 00814 B002PHNADK 1 $64.42 Buy Options
9 Taper Pin 0.4805-0.6066" 8-5/16" 00815 B002PHNADU 2 $63.79 Buy Options
10 Taper Pin 0.5799-0.7216" 9-5/16" 00816 B002PHNAE4 1 $70.60 Buy Options
2/0 Taper Pin 0.1137-0.1462" 2-9/16" 00805 B002PHNAAS 3 $28.74 Buy Options
3/0 Taper Pin 0.1029-0.1302" 2-5/16" 00804 B002PHNAAI 1 $31.36 Buy Options
4/0 Taper Pin 0.0869-0.1142" 2-5/16" 00803 B002PHNAA8 1 $27.48 Buy Options
5/0 Taper Pin 0.0719-0.0966" 2-3/16" 00802 B002PHNA9Y 1 $27.49 Buy Options
6/0 Taper Pin 0.0611-0.0806" 1-15/16" 00801 B002PHNA9O 2 $31.18 Buy Options
7/0 Taper Pin 0.0497-0.0666" 1-13/16" 00800 B002PHNA94 1 $30.41 Buy Options

Key Features

  • Straight flute reamers are recommended for general purpose reaming to make minor enlargements to preformed holes with a very precise size and roundness
  • Straight flute reamers are good for use in through or blind holes without interruptions such as keyways (through holes extend through the entire workpiece, while blind holes do not)

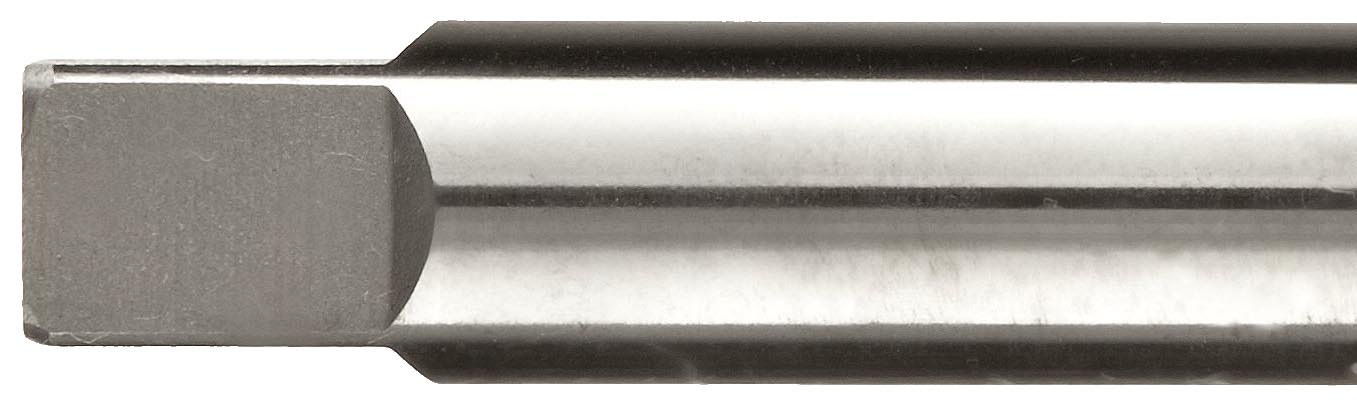

  • Round shank tools are cylindrical and should be held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications, which can cause tool freeze, loss of accuracy, and tool damage
  • Uncoated (bright) tools have no finish or coating. They are a good choice for general purpose applications
  • High-speed steel is a common general purpose steel for cutting tools, is compatible with a variety of materials, and tends to be lower in price than cobalt steel or carbide

Product Description

The Alvord Polk 155-0 straight flute taper pin reamer is a round shank tool made of high-speed steel with no finish or coating, and is most commonly chosen for reaming holes that are intended to receive taper pins. Taper pins are standardized tapered fasteners with one end having a slightly larger diameter than the other end, in order to easily enter a reamed hole and hold itself through friction; some taper pins have threaded ends to receive nuts.

Straight flute reamers are useful for uninterrupted cuts in general purpose applications. These reamers make small, circular, and precise enlargements to through and blind holes. High-speed steel is a general purpose steel for cutting tools and is compatible with many metalworking materials. It is often lower in price than other cutting tool materials.

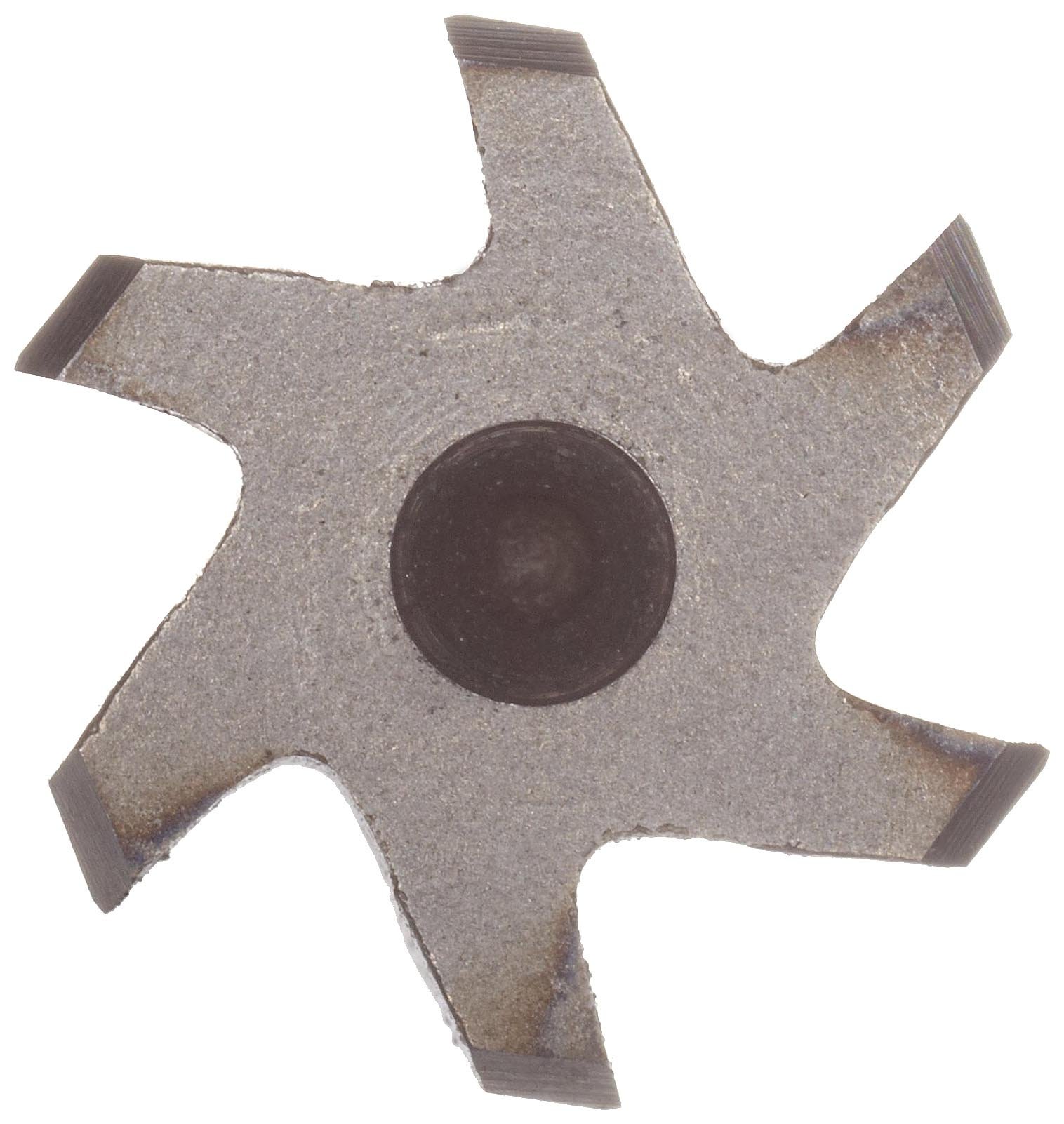

For reamers in the 155-0 series with taper pin size 7/0 to 2/0 there are four flutes, for size 0 to 8 there are six flutes, and for sizes 9 and 10 there are eight flutes. Tolerances for machining this reamer series are +.0030 / +.0060 inches.

Reamers are used to finish existing holes. When holes are created using common applications like drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameter may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes of exacting dimensions. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
