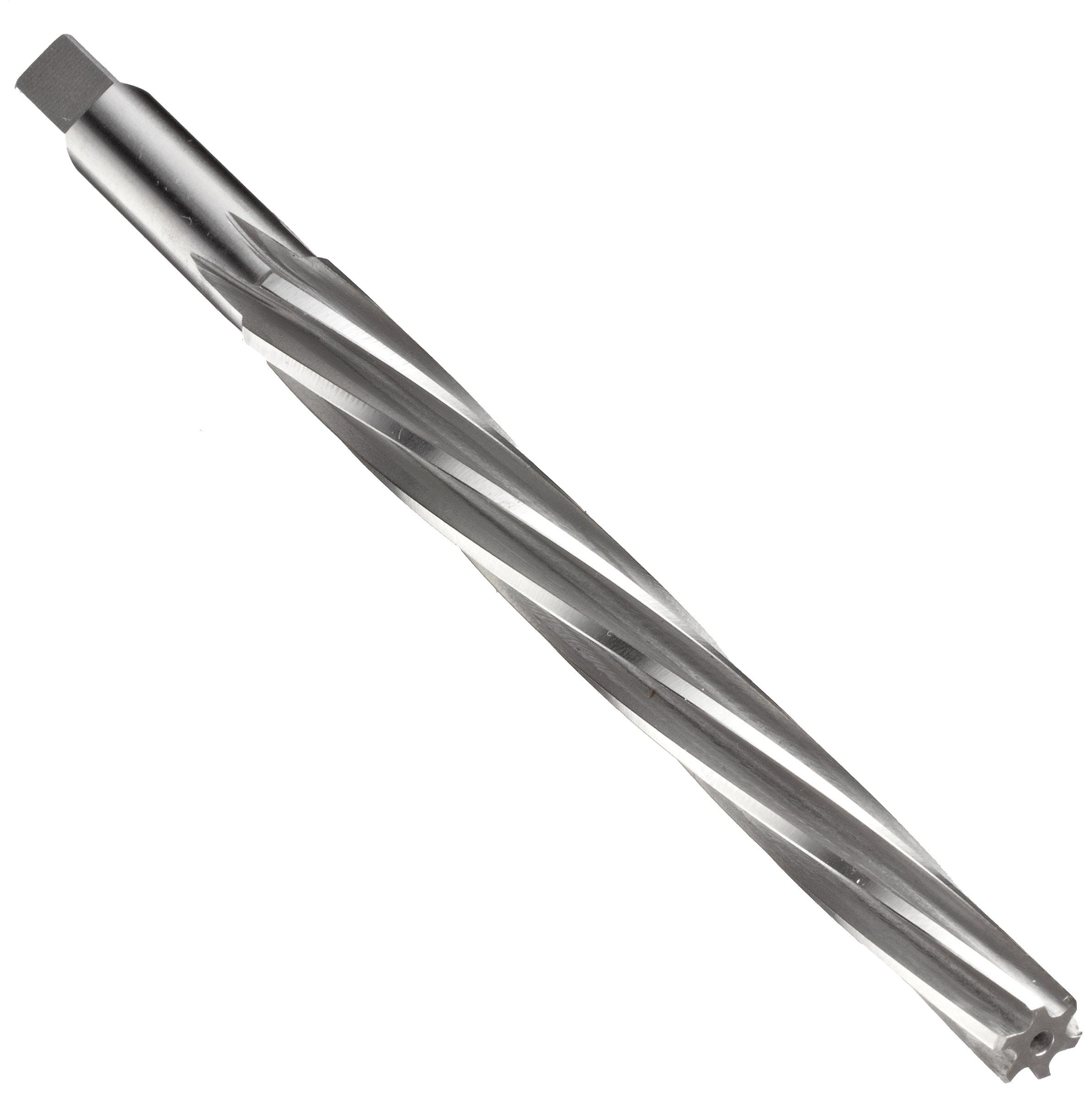

Alvord Polk 155-2 High-Speed Steel Taper Pin Reamer, Left Hand Spiral Flute, Round Shank, Uncoated (Bright)

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High Speed Steel
UNSPSC Code
23241617
Brand Name
Alvord Polk
Flute Type
Left Hand Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 14 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-17 of 17
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-17 of 17
0 Taper Pin 0.1287-0.1638" 2-15/16" 02806 B002PHNFDA yes $32.20 Buy Options
1 Taper Pin 0.1447-0.1798" 2-15/16" 02807 B002PHNFDK yes $32.20 Buy Options
2 Taper Pin 0.1605-0.2008" 3-3/16" 02808 B002PHNFE4 yes $32.20 Buy Options
3 Taper Pin 0.1813-0.2294" 3-11/16" 02809 B002PHNFEE yes $34.20 Buy Options
4 Taper Pin 0.2071-0.2604" 4-1/16" 02810 B002PHNFEY yes $34.20 Buy Options
5 Taper Pin 0.2409-0.2994" 4-5/16" 02811 B002PHNFF8 yes $35.92 Buy Options
6 Taper Pin 0.2773-0.3540" 5-7/16" 02812 B002PHNFFI yes $45.60 Buy Options
7 Taper Pin 0.3297-0.4220" 6-5/16" 02813 B002PHNFFS yes $40.99 Buy Options
8 Taper Pin 0.3971-0.5050" 7-3/16" 02814 B002PHNFG2 yes $81.80 Buy Options
9 Taper Pin 0.4805-0.6066" 8-5/16" 02815 B002PHNFGC yes $104.30 Buy Options
10 Taper Pin 0.5799-0.7216" 9-5/16" 02816 B002PHNFGM yes $116.30 Buy Options
2/0 Taper Pin 0.1137-0.1462" 2-9/16" 02805 B002PHNFD0 yes $38.30 Buy Options
3/0 Taper Pin 0.1029-0.1302" 2-5/16" 02804 B002PHNFCQ yes $29.50 Buy Options
4/0 Taper Pin 0.0869-0.1142" 2-5/16" 02803 B002PHNFCG yes $38.30 Buy Options
5/0 Taper Pin 0.0719-0.0966" 2-3/16" 02802 B002PHNFBW yes $30.18 Buy Options
6/0 Taper Pin 0.0611-0.0806" 1-15/16" 02801 B002PHNFBM yes $30.18 Buy Options
7/0 Taper Pin 0.0497-0.0666" 1-13/16" 02800 B002PHNFBC yes $39.40 Buy Options

Key Features

  • Left-hand spiral reamers are recommended for reaming holes with interruptions, as they prevent damage to the workpiece edge and tool
  • Left-hand spiral reamers are good for use in through holes (holes that extend all the way through a workpiece), as they push chips ahead of the tool and into the hole
  • Round shank tools are cylindrical and should be held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications, which can cause tool freeze, loss of accuracy, and tool damage
  • Uncoated (bright) tools have no finish or coating. They are a good choice for general purpose applications
  • High-speed steel is a common general purpose steel for cutting tools, is compatible with a variety of materials, and tends to be lower in price than cobalt steel or carbide

Product Description

The Alvord Polk 155-2 left-hand spiral flute taper pin reamer is a round shank tool made of high-speed steel with no finish or coating, and is most commonly chosen for reaming holes that are intended to receive taper pins. Taper pins are standardized tapered fasteners with one end having a slightly larger diameter than the other end, in order to easily enter a reamed hole and hold itself through friction; some taper pins have threaded ends to receive nuts.

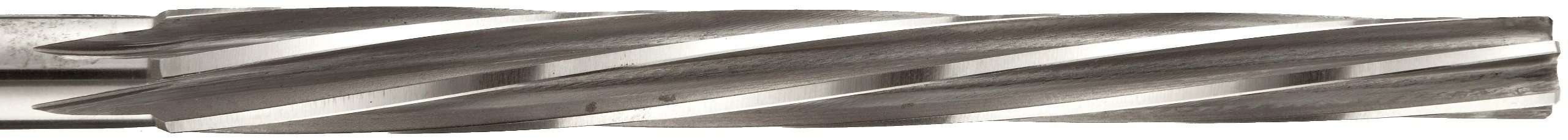

Left-hand spiral reamers are useful for interrupted cuts and in through holes. Spiral reamers prevent whole flute contact with the leading edge in an interrupted cut, as in a keyway. This prevents damage to the interruption and reamer flute. Left-hand spiral style tools also push chips ahead of the tip of the tool, instead of pulling chips out of a hole. Left-hand spiral reamers are also useful when reaming through holes, since pushing chips into the hole can cause clogging, which may damage the tool. High-speed steel is a general purpose steel for cutting tools and is compatible with many metalworking materials. It is often lower in price than other cutting tool materials.

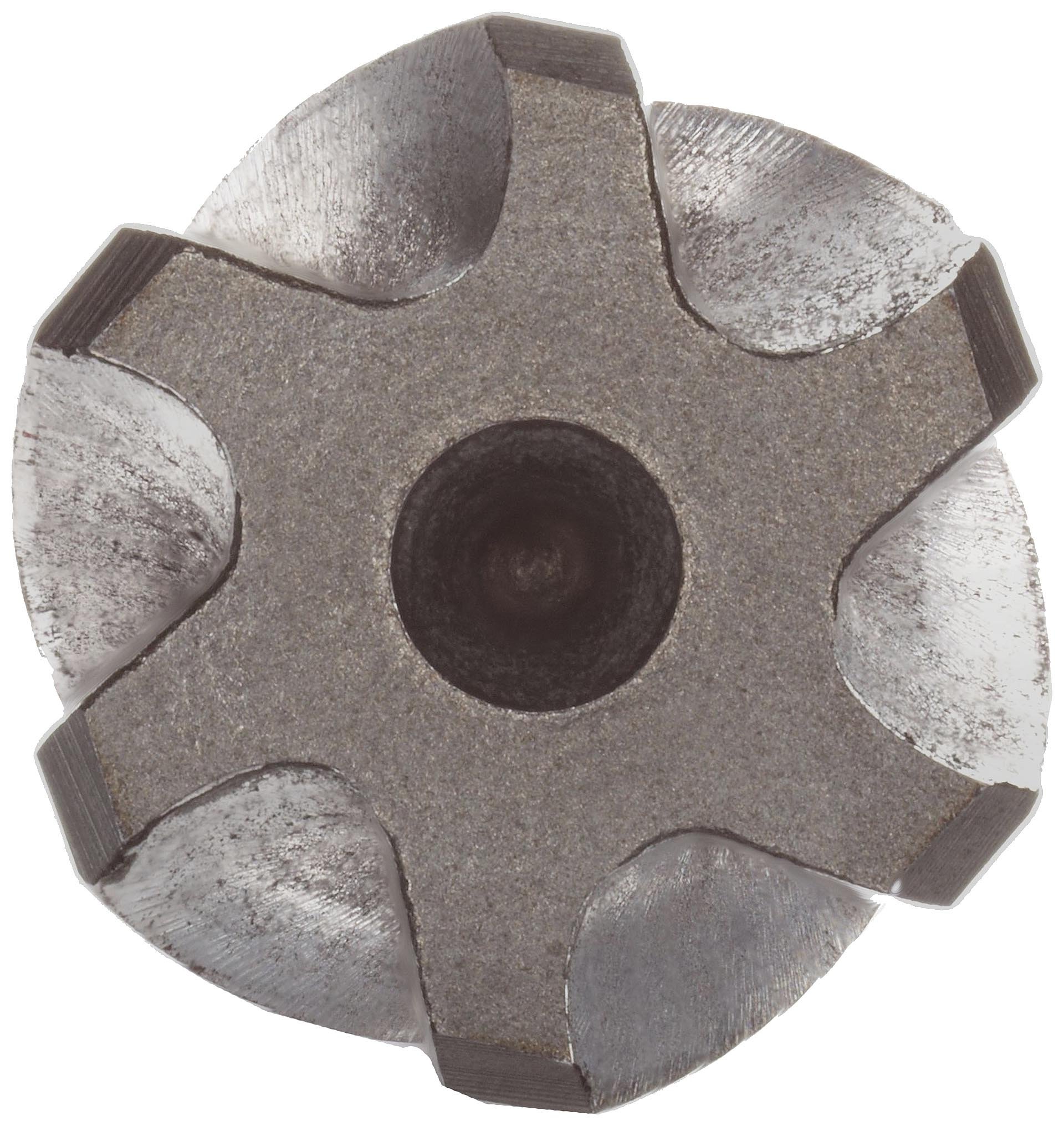

For reamers in the 155-2 series with taper pin size 7/0 to 2/0 there are four flutes, for size 0 to 8 there are six flutes, and for sizes 9 and 10 there are eight flutes. Tolerances for machining this reamer series are +.0030 / +.0060 inches.

Reamers are used to finish an existing hole. These holes are often adequate, but in some engineering applications the resulting hole is not round enough or is incorrectly sized, and therefore reaming is necessary. Reaming positively affects the mechanical properties of the hole by producing a hole with an exceptionally smooth finish and precise roundness and diameter. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
