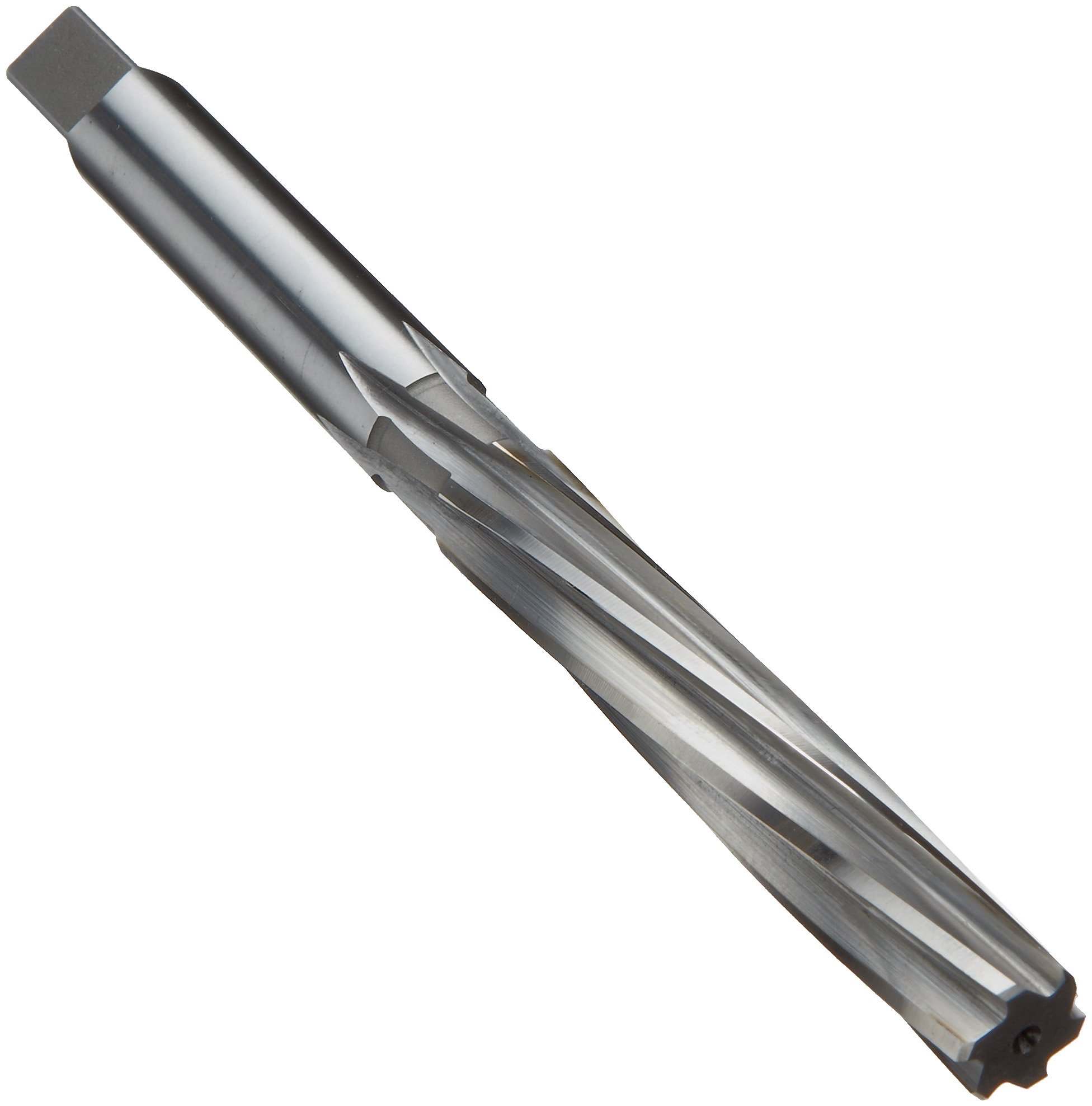

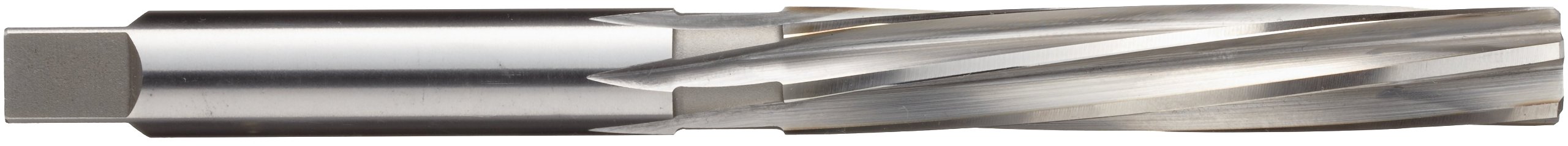

Alvord Polk 101-2 High-Speed Steel Hand Reamer, Left Hand Spiral Flute, Right Hand Cut, Uncoated (Bright)

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High Speed Steel
UNSPSC Code
27112837
Brand Name
Alvord Polk
Flute Type
Left Hand Spiral

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 1 day 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 46 Next 20 »
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 46 Next 20 »
1/8" Inch 0.1250" 3" 02600 B002PHNEKO yes $32.09 Buy Options
9/64" Inch 0.1406" 3-1/4" 02601 B002PHNEL8 yes $31.05 Buy Options
5/32" Inch 0.1562" 3-1/4" 02602 B002PHNELI yes $10.94 Buy Options
11/64" Inch 0.1719" 3-1/2" 02603 B002PHNELS yes $32.76 Buy Options
3/16 " Inch 0.1875" 3-1/2" 02604 B002PHNEM2 yes $33.61 Buy Options
13/64" Inch 0.2031" 3-3/4" 02605 B002PHNEMC yes $10.87 Buy Options
7/32" Inch 0.2188" 3-3/4" 02606 B002PHNEMM yes $35.37 Buy Options
15/64" Inch 0.2344" 4" 02607 B002PHNEN6 yes $35.37 Buy Options
1/4" Inch 0.2500" 4" 02608 B002PHNENG yes $31.35 Buy Options
17/64" Inch 0.2656" 4-1/4" 02609 B002PHNENQ yes $37.90 Buy Options
9/32" Inch 0.2812" 4-1/4" 02610 B002PHNEO0 yes $37.81 Buy Options
19/64" Inch 0.2969" 4-1/2" 02611 B002PHNEOK yes $41.27 Buy Options
5/16" Inch 0.3125" 4-1/2" 02612 B002PHNEOU yes $37.81 Buy Options
21/64" Inch 0.3281" 4-3/4" 02613 B002PHNEP4 yes $39.45 Buy Options
23/64" Inch 0.3594" 5" 02615 B002PHNEPY yes $38.21 Buy Options
3/8 " Inch 0.3750" 5" 02616 B002PHNEQ8 yes $60.80 Buy Options
25/64" Inch 0.3906" 5-1/4" 02617 B002PHNEQI yes $46.71 Buy Options
13/32" Inch 0.4062" 5-1/4" 02618 B002PHNER2 yes $48.17 Buy Options
7/16" Inch 0.4375" 5-1/2" 02620 B002PHNERM yes $43.23 Buy Options
29/64" Inch 0.4531" 5-3/4" 02621 B002PHNERW yes $49.76 Buy Options

Key Features

  • Left-hand spiral reamers are good for use in through holes (holes that extend all the way through a workpiece), as they push chips ahead of the tool and into the hole
  • Spiral reamers are recommended for reaming holes with interruptions, as they prevent damage to the workpiece edge and tool
  • Hand reamers fit into a tap wrench, adjustable hand wrench, or standard tap/reamer chucks
  • Uncoated (bright) tools have no finish or coating. They are a good choice for general purpose applications
  • High-speed steel is a common general purpose steel for cutting tools, is compatible with a variety of materials, and tends to be lower in price than cobalt steel or carbide

Product Description

The Alvord Polk 101-2 left-hand spiral flute reamer is tool made of high-speed steel with no finish or coating, and is most commonly chosen for reaming interrupted cuts by hand.

Left-hand spiral reamers are useful for interrupted cuts and in through holes. Spiral reamers prevent whole flute contact with the leading edge in an interrupted cut, as in a keyway. This prevents damage to the interruption and reamer flute. Left-hand spiral style tools also push chips ahead of the tip of the tool, instead of pulling chips out of a hole. Left-hand spiral reamers are also useful when reaming through holes, since pushing chips into the hole can cause clogging, which may damage the tool. High-speed steel is a general purpose steel for cutting tools and is compatible with many metalworking materials. It is often lower in price than other cutting tool materials. Right-hand cut tools rotate counterclockwise as they cut, when viewed facing the tip of the tool. Hand reamers have a different shank type than other reamers – the shank itself is round, but the end opposite the tip has a squared-off profile for a short length of the shank, which allows the reamer to fit into a tap wrench, adjustable hand wrench, or standard tap/reamer chucks. The unique curved profile at the tip is meant to allow the reamer to enter a hole and center itself.

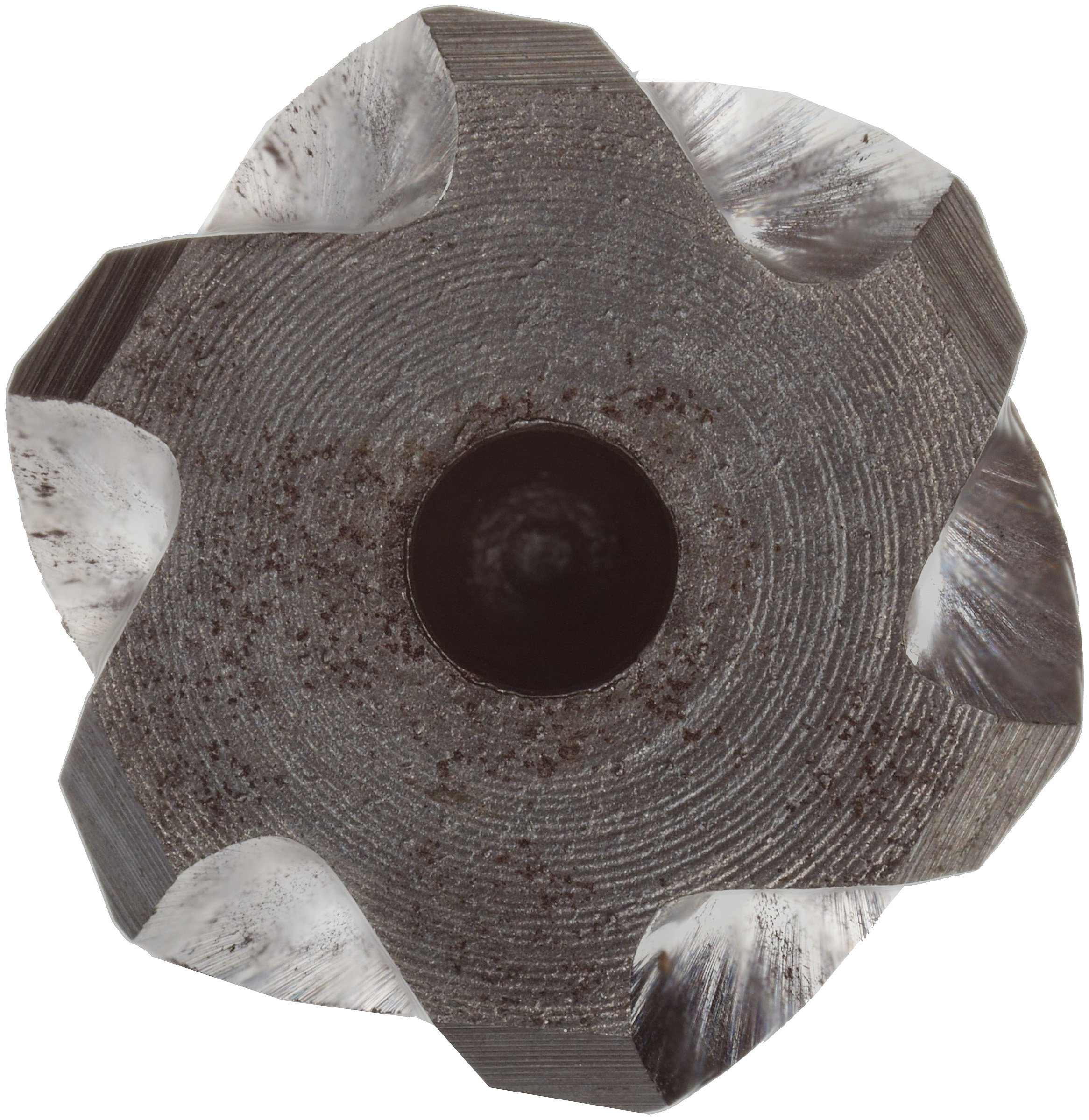

For reamers in the 101-2 series with 0.1250 – 0.5312 inches diameter there are six flutes, for 0.5512 – 1.1250 inches diameter there are eight flutes, and for 1.1875 – 1.5000 inches diameter, there are 10 flutes. Tolerances are +0.0001/+0.0004 inches for reamers in the 101-2 series with diameters of 0.1250 to 0.2500 inches, +0.001/+0.005 inches for diameters of 0.2656 to 1.0000 inches, and +0.002/+0.006 for diameters of 1.0625 to 1.5000 inches in the 101-2 series.

Reamers are used to finish existing holes. When holes are created using common applications like drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameter may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes of exacting dimensions. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
