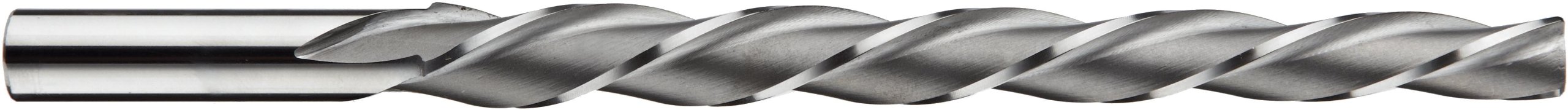

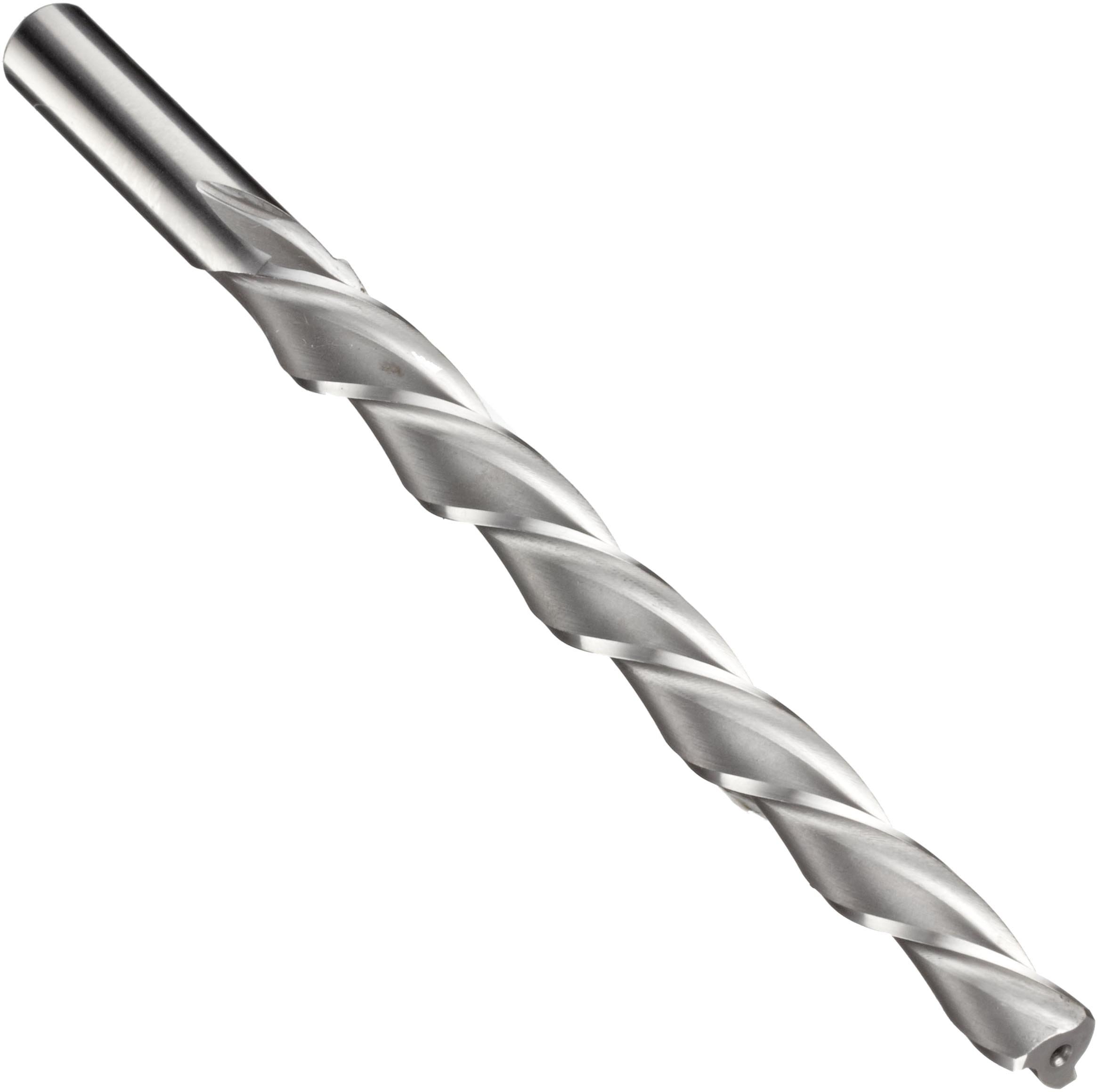

Alvord Polk 155-H High-Speed Steel Taper Pin Reamer, Left Hand Helical Flute, Round Shank, Uncoated (Bright)

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
High Speed Steel
Brand Name
Alvord Polk
Flute Type
Left Hand Fast Helix

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 4 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-16 of 16
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-16 of 16
0 Taper Pin 0.1287-0.1638" 2-15/16" 03806 B002PHNG66 1 $27.36 Buy Options
1 Taper Pin 0.1447-0.1798" 2-15/16" 03807 B002PHNG6G 1 $28.25 Buy Options
2 Taper Pin 0.1605-0.2008" 3-3/16" 03808 B002PHNG6Q 1 $28.28 Buy Options
3 Taper Pin 0.1813-0.2294" 3-11/16" 03809 B002PHNG7A 1 $30.25 Buy Options
4 Taper Pin 0.2071-0.2604" 4-1/16" 03810 B002PHNG7K 1 $30.25 Buy Options
5 Taper Pin 0.2409-0.2994" 4-5/16" 03811 B002PHNG7U 1 $35.18 Buy Options
6 Taper Pin 0.2773-0.3540" 5-7/16" 03812 B002PHNG84 1 $39.03 Buy Options
7 Taper Pin 0.3297-0.4220" 6-5/16" 03813 B002PHNG8E 1 $48.73 Buy Options
8 Taper Pin 0.3971-0.5050" 7-3/16" 03814 B002PHNG8O 1 $54.26 Buy Options
9 Taper Pin 0.4805-0.6066" 8-5/16" 03815 B002PHNG98 1 $74.20 Buy Options
10 Taper Pin 0.5799-0.7216" 9-5/16" 03816 B002PHNG9I 1 $87.58 Buy Options
2/0 Taper Pin 0.1137-0.1462" 2-9/16" 03805 B002PHNG5M 1 $30.25 Buy Options
3/0 Taper Pin 0.1029-0.1302" 2-5/16" 03804 B002PHNG5C 1 $30.25 Buy Options
4/0 Taper Pin 0.0869-0.1142" 2-5/16" 03803 B002PHNG52 1 $30.25 Buy Options
5/0 Taper Pin 0.0719-0.0966" 2-3/16" 03802 B002PHNG4S 1 $30.25 Buy Options
6/0 Taper Pin 0.0611-0.0806" 1-15/16" 03801 B002PHNG48 10 $33.49 Buy Options

Key Features

  • Helical reamers are intended for use in a CNC machine, drill press, or similar, since a lot of torque is needed to effectively drive the tool
  • Taper pin reamers are intended to ream holes for taper pins, which are a standardized fastener
  • Left-hand helical reamers are good for use in through holes (holes that extend all the way through a workpiece) in difficult or long-chipping materials, as they push chips ahead of the tool and into the hole
  • Helical reamers are recommended for reaming holes with interruptions, as they prevent damage to the workpiece edge and tool, when used in a machine with rigid toolholding
  • Uncoated (bright) tools have no finish or coating. They are a good choice for general purpose applications

Product Description

The Alvord Polk 155-H left-hand helical flute taper pin reamer is a round shank tool made of high-speed steel with no finish or coating, and is most commonly chosen for reaming holes in difficult or long-chipping materials that are intended to receive taper pins. Taper pins are standardized tapered fasteners with one end having a slightly larger diameter than the other end, in order to easily enter a reamed hole and hold itself through friction.

Left-hand helical reamers are useful for interrupted cuts and in through holes. Helical reamers prevent whole flute contact with the leading edge in an interrupted cut, as in a keyway. This prevents damage to the interruption and reamer flute. Left-hand helical style tools also push chips ahead of the tip of the tool, instead of pulling chips out of a hole. Left-hand helical reamers are also useful for reaming through holes, since pushing chips into the hole can cause clogging, which may damage the tool. Helical reamers have a more aggressive rake angle than spiral reamers. This means that while they are both used for similar purposes, helical reamers are intended to be used by a drill press or CNC machine, unlike a spiral reamer, which can be used either by hand or in a machine. Helical reamers cannot easily be used by hand, since the action of the high rake angle means that more force is needed to drive the tool, when used in manually-fed machines they will sometimes push the reamer back up out of the hole.. The round shank (minus a square section on the end) shows the user clearly that this tool is not meant to be used with a tap wrench, i.e. driven by hand. High-speed steel is a general purpose steel for cutting tools and is compatible with many metalworking materials. It is often lower in price than other cutting tool materials.

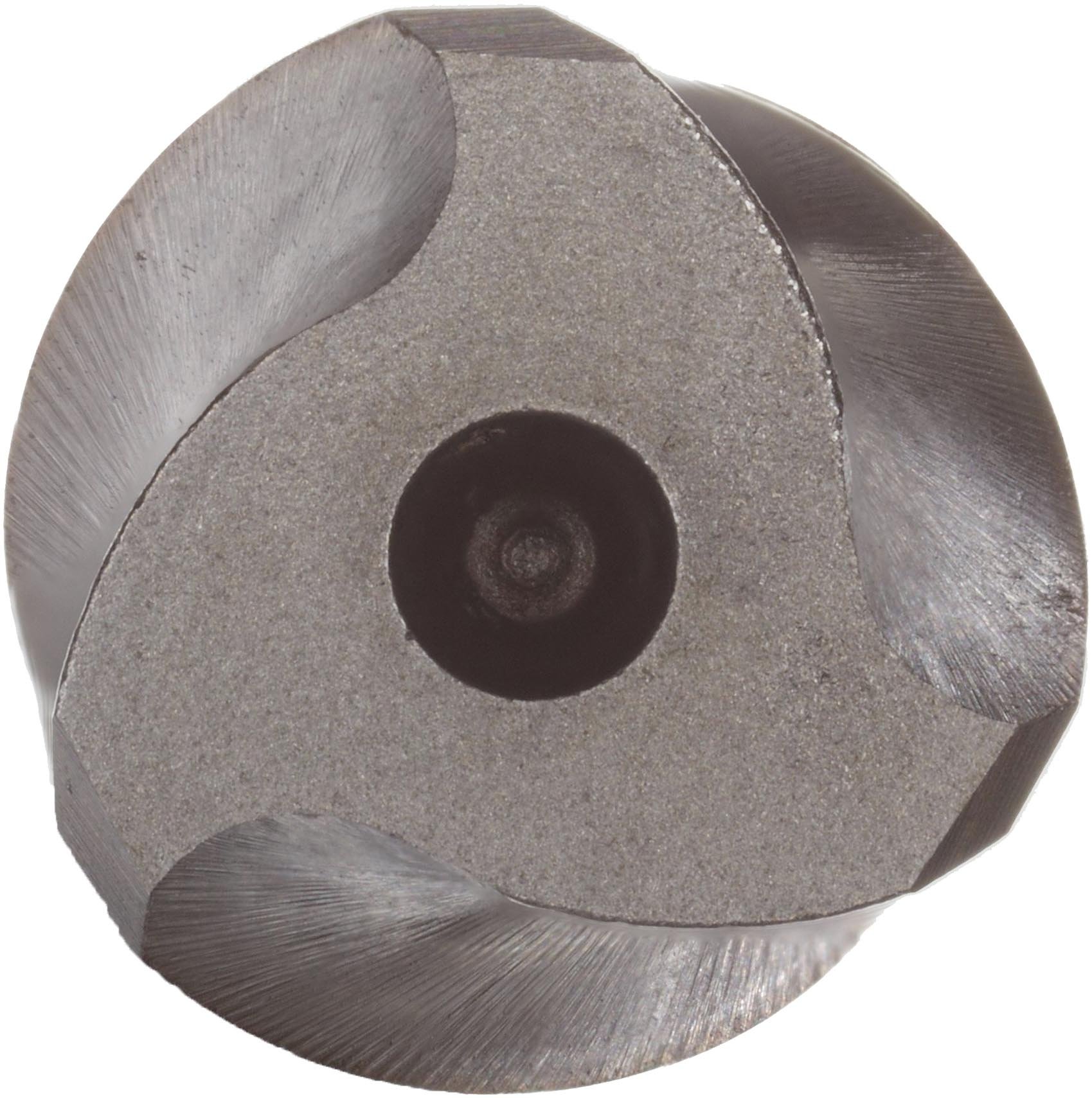

For reamers in the 155-H series with taper pin size 7/0 to 9 there are three flutes, and for size 10 there are four flutes. Tolerances for machining this reamer series are +.0030 / +.0060 inches.

Reamers are used to finish existing holes. When holes are created using common applications like drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameter may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes of exacting dimensions. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
