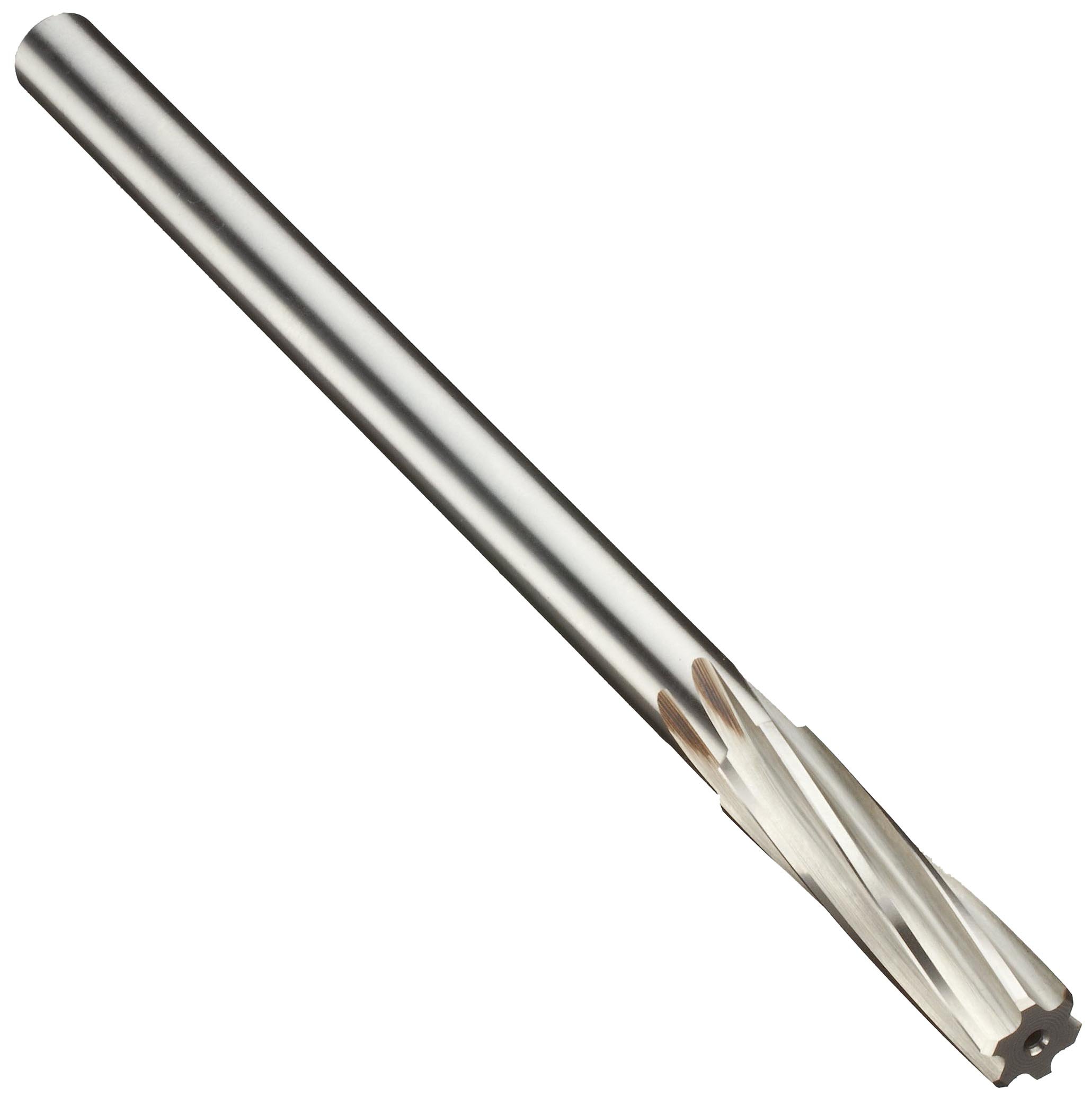

Alvord Polk 127-1 High-Speed Steel Chucking Reamer, Right Hand Spiral Flute, Round Shank, Uncoated Finish

Be the first to review this item

Product Specifications
Material Type
high_speed_steel
Mfr Part #
127-1
UNSPSC Code
23241611
Brand Name
Alvord Polk

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 14 hrs 55 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 213 Next 20 »
Size System of Measurement Decimal Equivalent Overall Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 213 Next 20 »
#1 Wire Gauge 0.2280" 6" B002PHNB7K yes $20.80 Buy Options
#2 Wire Gauge 0.2210" 6" B002PHNB7A yes $20.80 Buy Options
#3 Wire Gauge 0.2130" 5" B002PHNB66 yes $20.30 Buy Options
#4 Wire Gauge 0.2090" 5" B002PHNB5W yes $20.00 Buy Options
#5 Wire Gauge 0.2055" 5" B002PHNB5M yes $20.00 Buy Options
#6 Wire Gauge 0.2040" 5" B002PHNB5C yes $20.00 Buy Options
#7 Wire Gauge 0.2010" 5" B002PHNB4S yes $20.00 Buy Options
#8 Wire Gauge 0.1990" 5" B002PHNB48 yes $20.00 Buy Options
#9 Wire Gauge 0.1960" 5" B002PHNB3O yes $20.00 Buy Options
#10 Wire Gauge 0.1935" 5" B002PHNB3E yes $20.00 Buy Options
#11 Wire Gauge 0.1910" 5" B002PHNB2U yes $20.00 Buy Options
#12 Wire Gauge 0.1890" 4-1/2" B002PHNB2K Usually ships in 2 to 4 weeks $18.00 Buy Options
#13 Wire Gauge 0.1850" 4-1/2" B002PHNB0W Usually ships in 2 to 4 weeks $16.75 Buy Options
#14 Wire Gauge 0.1820" 4-1/2" B002PHNB0M yes $18.00 Buy Options
#15 Wire Gauge 0.1800" 4-1/2" B002PHNB0C yes $18.00 Buy Options
#16 Wire Gauge 0.1770" 4-1/2" B002PHNAZ8 yes $18.00 Buy Options
#17 Wire Gauge 0.1730" 4-1/2" B002PHNAYY yes $18.00 Buy Options
#18 Wire Gauge 0.1695" 4-1/2" B002PHNAYE yes $18.00 Buy Options
#19 Wire Gauge 0.1660" 4-1/2" B002PHNAY4 yes $18.00 Buy Options
#20 Wire Gauge 0.1610" 4-1/2" B002PHNAXU yes $18.00 Buy Options

Key Features

  • Right-hand spiral reamers are good for use in blind holes (holes that do not extend all the way through a workpiece), as they pull chips up and out of the hole
  • Spiral flute reamers are recommended for reaming holes with interruptions, as they prevent damage to the workpiece edge and tool

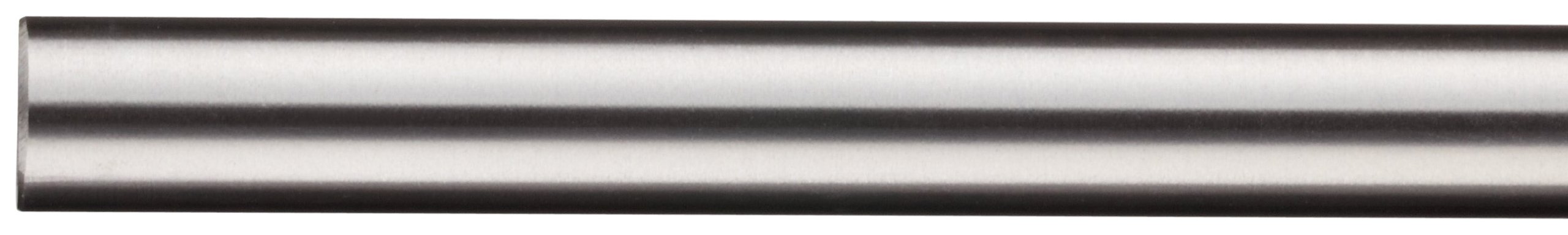

  • Round shank tools are cylindrical and should be held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications, which can cause tool freeze, loss of accuracy, and tool damage
  • (bright) tools have no finish or coating. They are a good choice for general purpose applications
  • High-speed steel is a common general purpose steel for cutting tools, is compatible with a variety of materials, and tends to be lower in price than cobalt steel or carbide

Product Description

The Alvord Polk 127-1 right-hand spiral chucking reamer (also called a machine reamer) is a general purpose round shank tool made of high-speed steel with no finish or coating, and is most commonly chosen for reaming interrupted cuts. This tool can be used in a drill press, screw machine, lathe, or other good-quality toolholder.

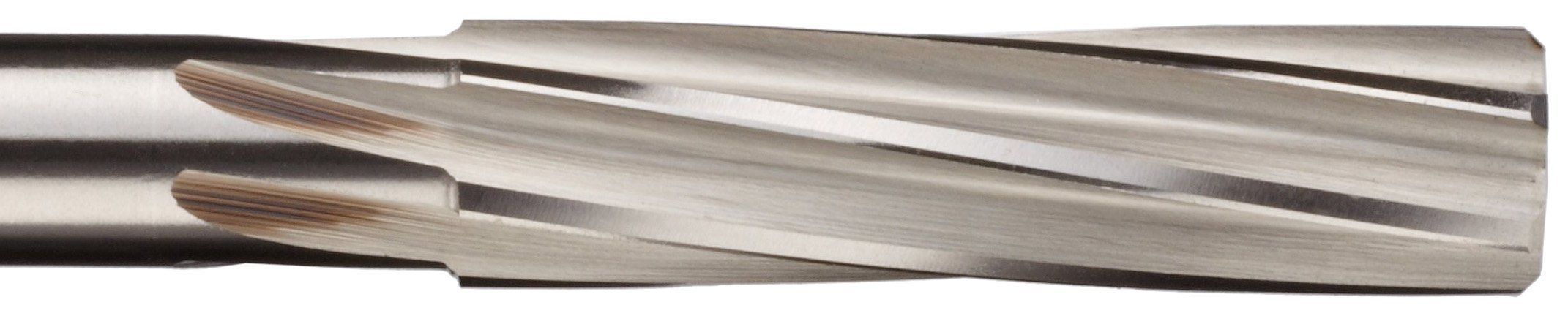

Right-hand spiral reamers are useful for interrupted cuts and in blind holes. Spiral reamers prevent whole flute contact with the leading edge in an interrupted cut, as in a keyway. This prevents damage to the interruption and the reamer flute. Right-hand spiral style tools also pull chips away from the tip of the tool, instead of driving chips in front of the tool. Right-hand spiral reamers are also useful when reaming blind holes, since pulling chips out of the hole prevents clogging, which may cause tool damage.

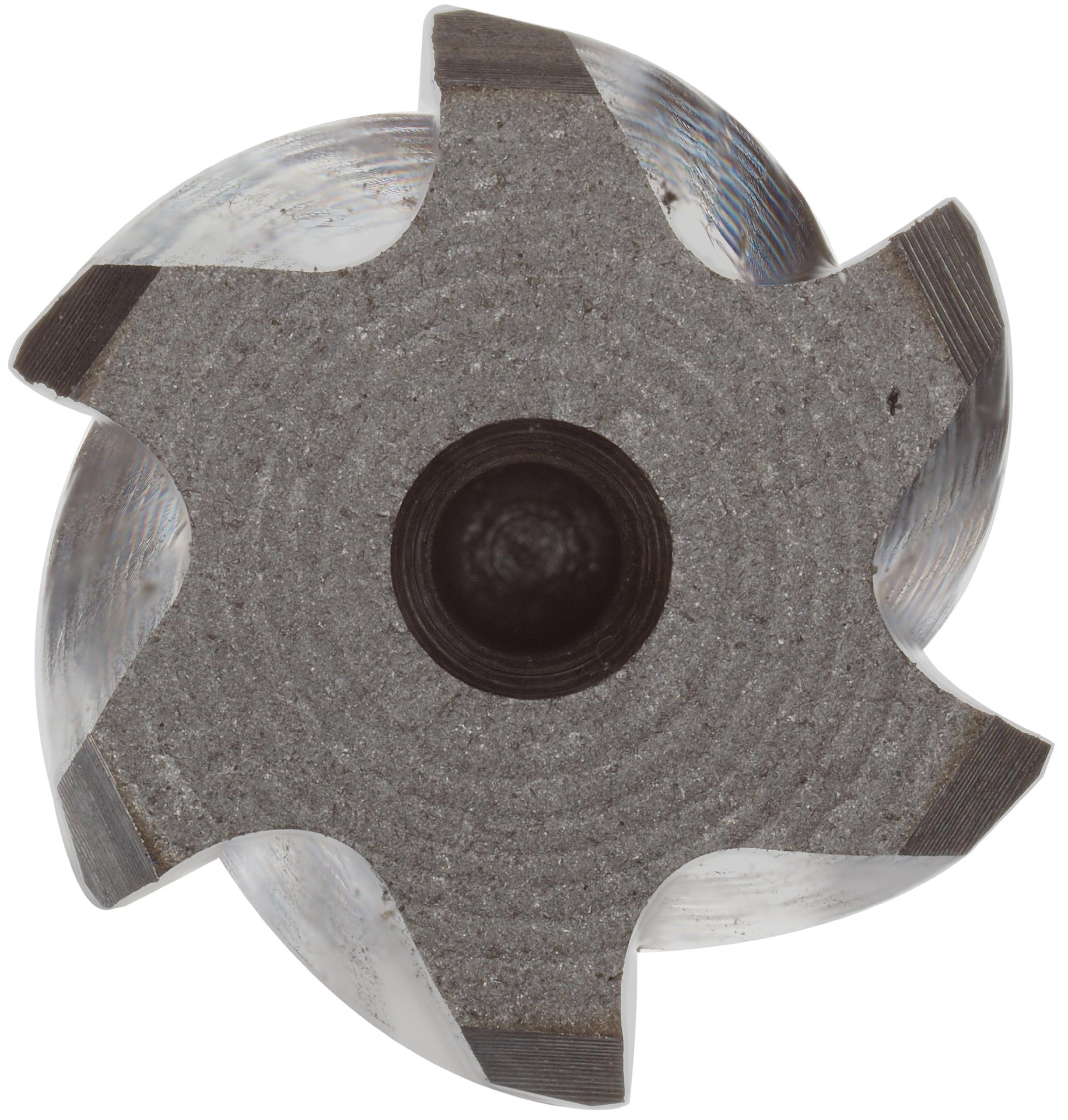

For reamers in the 127-1 series with 0.0280 – 0.1561 inches diameter there are four flutes, for 0.1562 – 0.5220 inches diameter there are six flutes, for 0.5221 – 0.8820 inches diameter there are eight flutes, for 0.8821 – 1.1950 inches diameter there are 10 flutes, and for 1.1951 – 1.5000 inches diameter, there are 12 flutes. Tolerances are +0.0002 -0.0000 inches for all reamers in the 127-1 series except for those that are dowel-pin sized, in which case tolerances are +0.0000 -0.0002 inches.

Reamers are used to finish existing holes. When holes are created using common applications like drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameter may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes of exacting dimensions. Reaming is often used before tapping screw threads. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
