Alvord Polk 127-0 High-Speed Steel Chucking Reamer, Straight Flute, Round Shank, Uncoated Finish

Be the first to review this item

Product Specifications
Material Type
high_speed_steel
Mfr Part #
127-0
UNSPSC Code
23241611
Brand Name
Alvord Polk

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 23? Order in-stock items in the next 17 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 1031 Next 20 »
Size System of Measurement Decimal Equivalent Overall Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 1031 Next 20 »
#1 Wire Gauge 0.2280" 6" B002PHN6PM yes $18.10 Buy Options
#2 Wire Gauge 0.2210" 6" B002PHN6PC yes $18.10 Buy Options
#3 Wire Gauge 0.2130" 5" B002PHN6OI yes $7.90 Buy Options
#4 Wire Gauge 0.2090" 5" B002PHN6O8 yes $17.40 Buy Options
#5 Wire Gauge 0.2055" 5" B002PHN6NY yes $17.40 Buy Options
#6 Wire Gauge 0.2040" 5" B002PHN6NO yes $17.40 Buy Options
#7 Wire Gauge 0.2010" 5" B002PHN6N4 yes $17.40 Buy Options
#8 Wire Gauge 0.1990" 5" B002PHN6MU yes $17.40 Buy Options
#9 Wire Gauge 0.1960" 5" B002PHN6MA yes $17.40 Buy Options
#10 Wire Gauge 0.1935" 5" B002PHN6M0 yes $17.40 Buy Options
#11 Wire Gauge 0.1910" 5" B002PHN6LQ yes $17.40 Buy Options
#12 Wire Gauge 0.1890" 4-1/2" B002PHN6LG yes $15.60 Buy Options
#13 Wire Gauge 0.1850" 4-1/2" B002PHN6JS yes $15.60 Buy Options
#14 Wire Gauge 0.1820" 4-1/2" B002PHN6JI yes $15.60 Buy Options
#15 Wire Gauge 0.1800" 4-1/2" B002PHN6J8 yes $15.60 Buy Options
#16 Wire Gauge 0.1770" 4-1/2" B002PHN6IO yes $15.60 Buy Options
#17 Wire Gauge 0.1730" 4-1/2" B002PHN6IE yes $6.22 Buy Options
#18 Wire Gauge 0.1695" 4-1/2" B002PHN6HU yes $15.60 Buy Options
#19 Wire Gauge 0.1660" 4-1/2" B002PHN6HK yes $6.30 Buy Options
#20 Wire Gauge 0.1610" 4-1/2" B002PHN6HA yes $15.60 Buy Options

Key Features

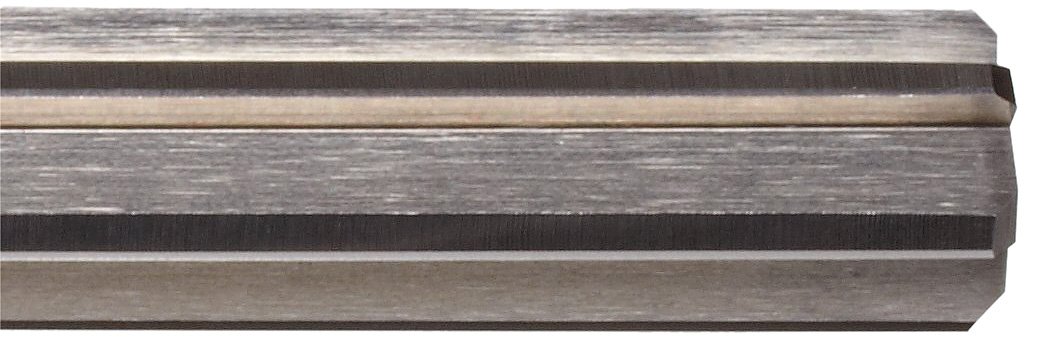

  • Straight flute reamers are recommended for general purpose reaming to make minor enlargements to existing holes with a very precise size and roundness
  • Straight flute reamers are good for use in through or blind holes without interruptions such as keyways (through holes extend through the entire workpiece, while blind holes do not)

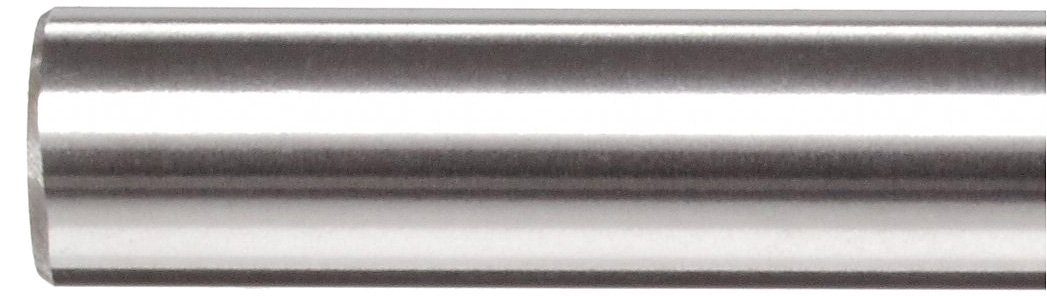

  • Round shank tools are cylindrical and should be held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications, which can cause tool freeze, loss of accuracy, and tool damage
  • Uncoated (bright) tools have no finish or coating. They are a good choice for general purpose applications
  • High-speed steel is a common general purpose steel for cutting tools, is compatible with a variety of materials, and tends to be lower in price than cobalt steel or carbide

Product Description

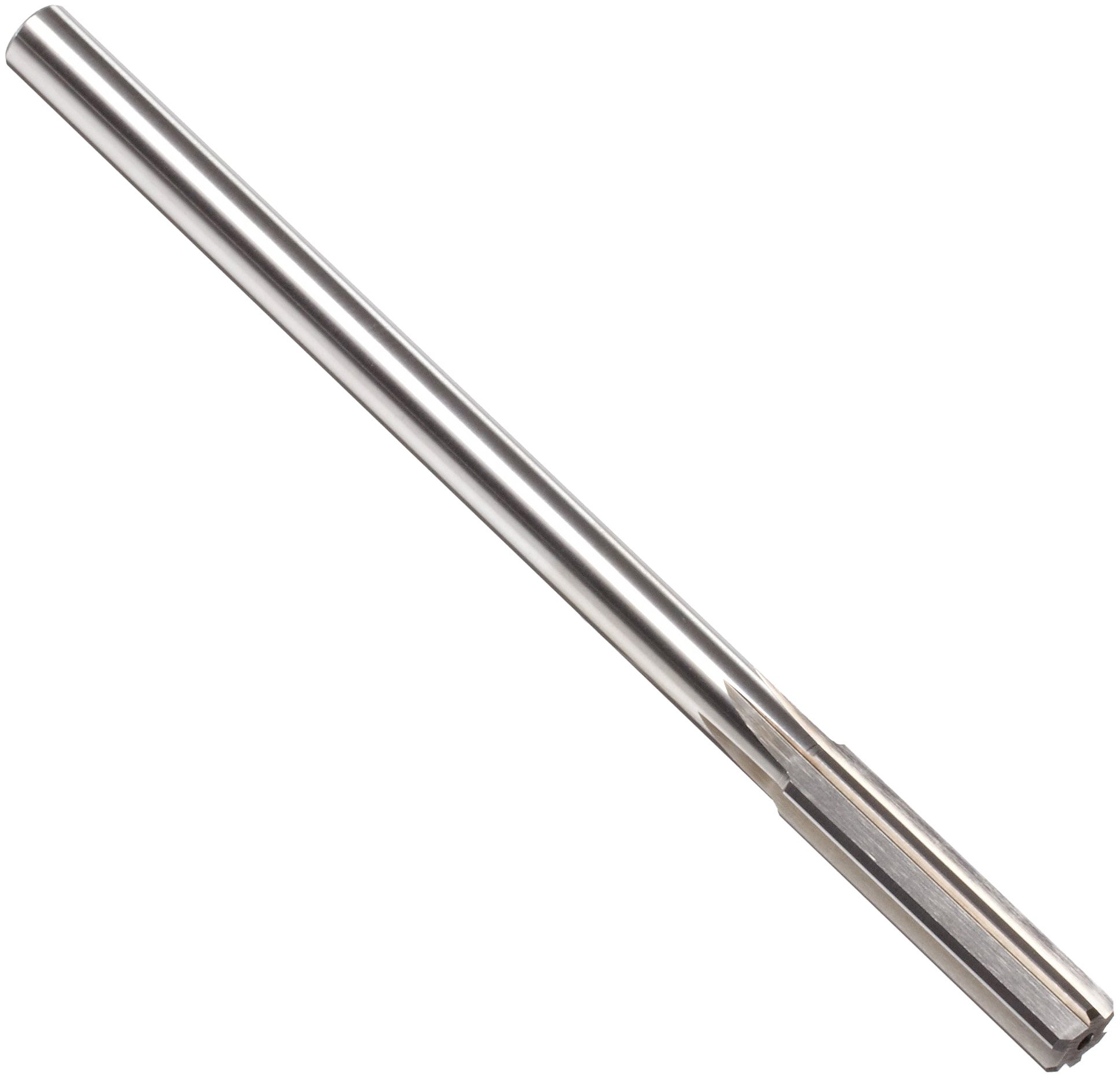

The Alvord Polk 127-0 straight flute chucking reamer (also called a machine reamer) is a general purpose round shank tool made of high-speed steel with no finish or coating, and is most commonly chosen for general purpose reaming. This tool can be used in a drill press, screw machine, lathe, or other good-quality toolholder.

Straight flute reamers are useful for uninterrupted cuts in general purpose applications. These reamers make small, circular, and precise enlargements to through and blind holes. High-speed steel is a general purpose steel for cutting tools and is compatible with many metalworking materials. It is often lower in price than other cutting tool materials.

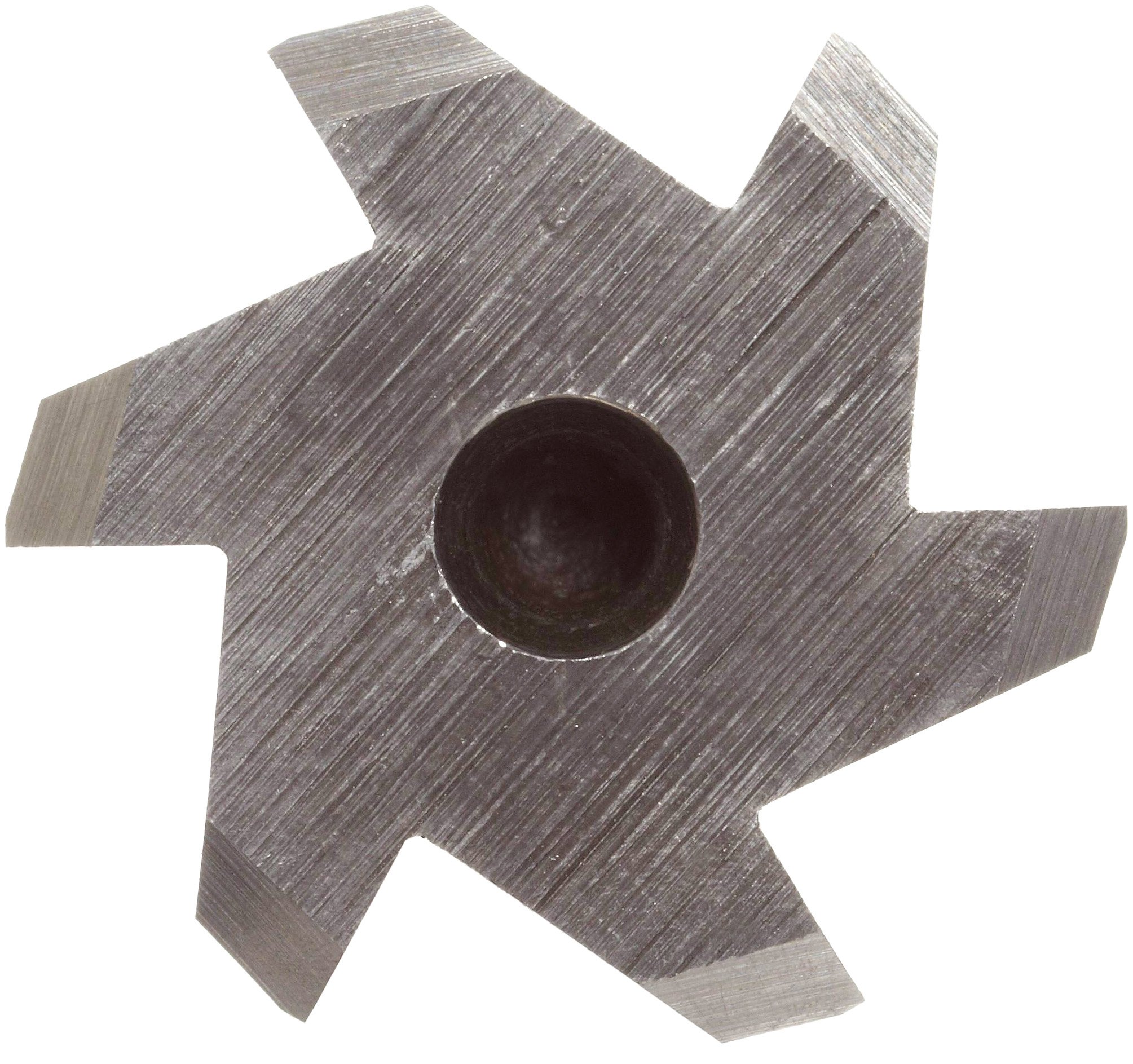

For reamers in the 127-0 series with 0.0280 – 0.1561 inches diameter there are four flutes, for 0.1562 – 0.5220 inches diameter there are six flutes, for 0.5221 – 0.8820 inches diameter there are eight flutes, for 0.8821 – 1.1950 inches diameter there are 10 flutes, and for 1.1951 – 1.5000 inches diameter, there are 12 flutes. Tolerances are +0.0002 -0.0000 inches for all reamers in the 127-0 series except for those that are dowel-pin sized, in which case tolerances are +0.0000 -0.0002 inches.

Reamers are used to finish existing holes. When holes are created using common applications like drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameter may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes of exacting dimensions. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
