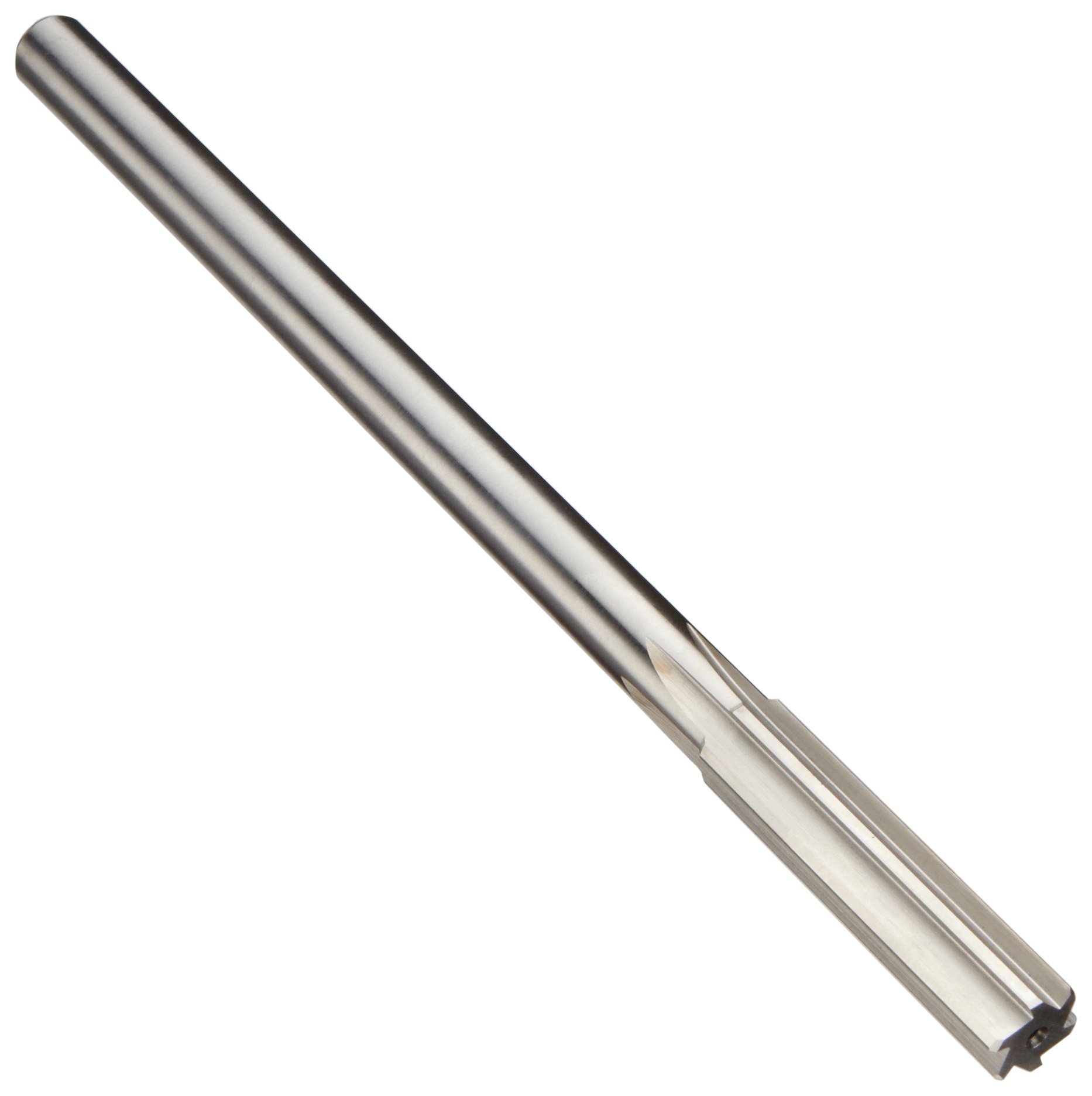

Alvord Polk 128-0 Cobalt Steel Chucking Reamer, Straight Flute, Round Shank, Uncoated (Bright)

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
Cobalt Steel
UNSPSC Code
23241611
Brand Name
Alvord Polk
Flute Type
Straight

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 hr 53 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 159 Next 20 »
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 159 Next 20 »
#1 Wire Gauge 0.2280" 6" 00313 B002PHN8BY yes $20.80 Buy Options
#2 Wire Gauge 0.2210" 6" 00312 B002PHN8BO yes $20.80 Buy Options
#3 Wire Gauge 0.2130" 5" 00309 B002PHN8AU yes $20.20 Buy Options
#4 Wire Gauge 0.2090" 5" 00308 B002PHN8AK yes $20.20 Buy Options
#5 Wire Gauge 0.2055" 5" 00307 B002PHN8AA yes $20.20 Buy Options
#6 Wire Gauge 0.2040" 5" 00306 B002PHN8A0 yes $20.20 Buy Options
#7 Wire Gauge 0.2010" 5" 00304 B002PHN89G yes $22.80 Buy Options
#8 Wire Gauge 0.1990" 5" 00303 B002PHN896 yes $19.30 Buy Options
#9 Wire Gauge 0.1960" 5" 00301 B002PHN88M yes $21.03 Buy Options
#10 Wire Gauge 0.1935" 5" 00300 B002PHN88C yes $83.66 Buy Options
#11 Wire Gauge 0.1910" 5" 00299 B002PHN882 yes $23.10 Buy Options
#12 Wire Gauge 0.1890" 4-1/2" 00298 B002PHN87S yes $19.00 Buy Options
#13 Wire Gauge 0.1850" 4-1/2" 00292 B002PHN864 yes $18.76 Buy Options
#14 Wire Gauge 0.1820" 4-1/2" 00291 B002PHN85K yes $18.76 Buy Options
#15 Wire Gauge 0.1800" 4-1/2" 00290 B002PHN85A yes $8.37 Buy Options
#16 Wire Gauge 0.1770" 4-1/2" 00288 B002PHN84Q yes $18.74 Buy Options
#17 Wire Gauge 0.1730" 4-1/2" 00287 B002PHN84G yes $19.60 Buy Options
#18 Wire Gauge 0.1695" 4-1/2" 00285 B002PHN83W yes $19.66 Buy Options
#19 Wire Gauge 0.1660" 4-1/2" 00284 B002PHN83M yes $18.76 Buy Options
#20 Wire Gauge 0.1610" 4-1/2" 00283 B002PHN83C yes $20.60 Buy Options

Key Features

  • Straight flute reamers are recommended for general purpose reaming to make minor enlargements to existing holes with a very precise size and roundness
  • Straight flute reamers are good for use in through or blind holes without interruptions such as keyways (through holes extend through the entire workpiece, while blind holes do not)
  • Round shank tools are cylindrical and should be held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications, which can cause tool freeze, loss of accuracy, and tool damage
  • Uncoated (bright) tools have no finish or coating. They are a good choice for general purpose applications
  • Cobalt steel is used for tough machining applications and on materials such as cast iron, cast steel and heat-treated steel. Cobalt steel resists abrasion and high cutting temperatures and has higher feed rates compared to high-speed steel

Product Description

The Alvord Polk 128-0 straight flute chucking reamer (also called a machine reamer) is a general purpose round shank tool made of cobalt steel with no finish or coating, and is most commonly chosen for reaming in high-temperatures generated by machining tough, hard materials applications, or with abrasive materials. Cobalt steel tools are good for machining stainless steel and nickel alloys, which are harder and generate more heat through friction, giving cobalt a longer-lasting sharp edge than an equivalent high-speed steel tool. This tool can be used in a drill press, screw machine, lathe, or other good-quality toolholder.

Straight flute reamers are useful for uninterrupted cuts in general purpose applications. These reamers make small, circular, and precise enlargements to through and blind holes. Cobalt steel is commonly chosen to make tools with exceptional wear resistance and temperature stability, and can be fed at higher rates than high-speed steel, while being more economical than carbide.

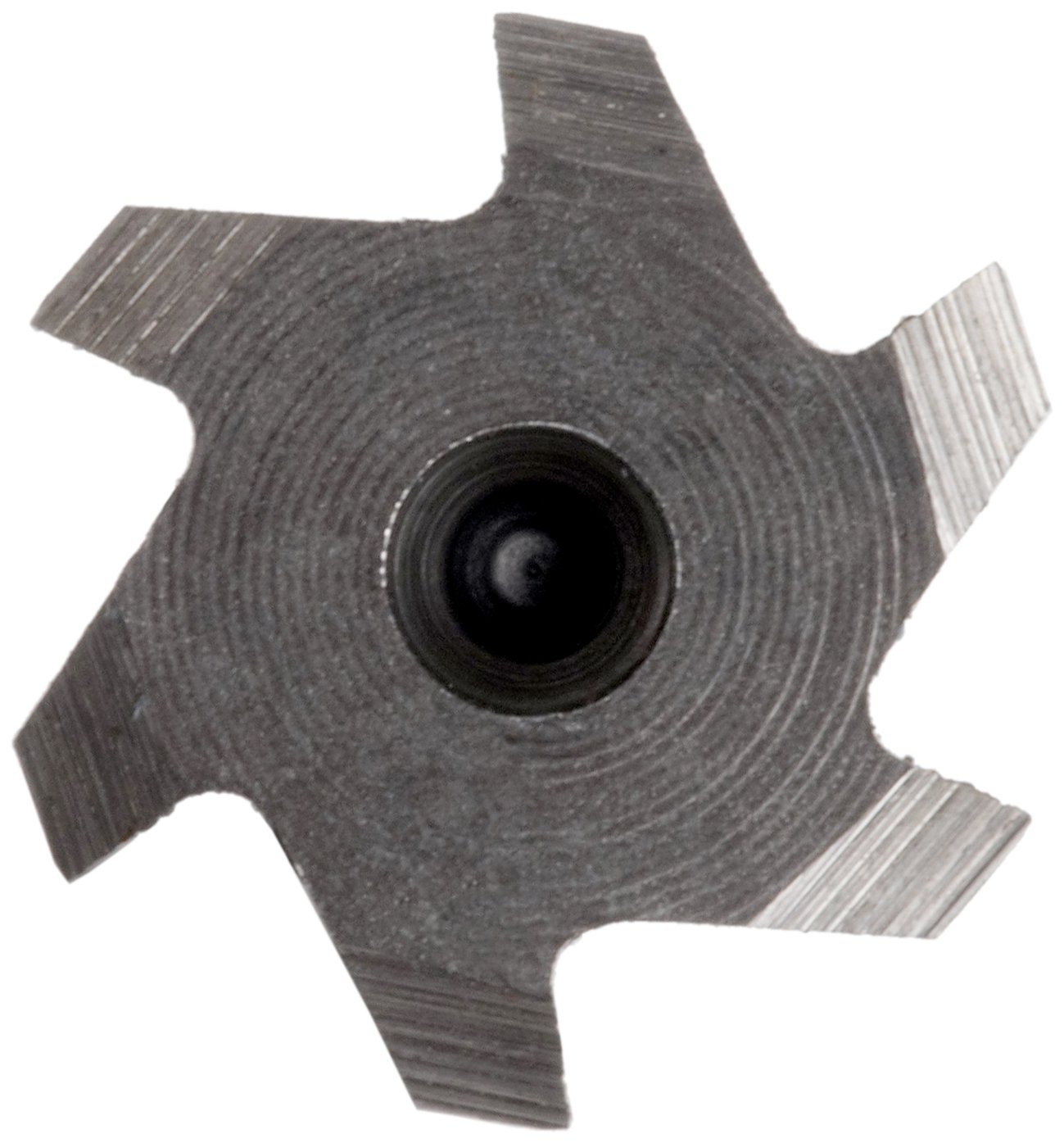

For reamers in the 128-0 series with 0.0280 – 0.1561 inches diameter there are four flutes, for 0.1562 – 0.5220 inches diameter there are six flutes, for 0.5221 – 0.8820 inches diameter there are eight flutes, for 0.8821 – 1.1950 inches diameter there are 10 flutes, and for 1.1951 – 1.5000 inches diameter, there are 12 flutes. Tolerances are +0.0002 -0.0000 inches for all reamers in the 128-0 series except for those that are dowel-pin sized, in which case tolerances are +0.0000 -0.0002 inches.

Reamers are used to finish an existing hole. These holes are often adequate, but in some engineering applications the resulting hole is not round enough or is incorrectly sized, and therefore reaming is necessary. Reaming positively affects the mechanical properties of the hole by producing a hole with an exceptionally smooth finish and precise roundness and diameter. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
