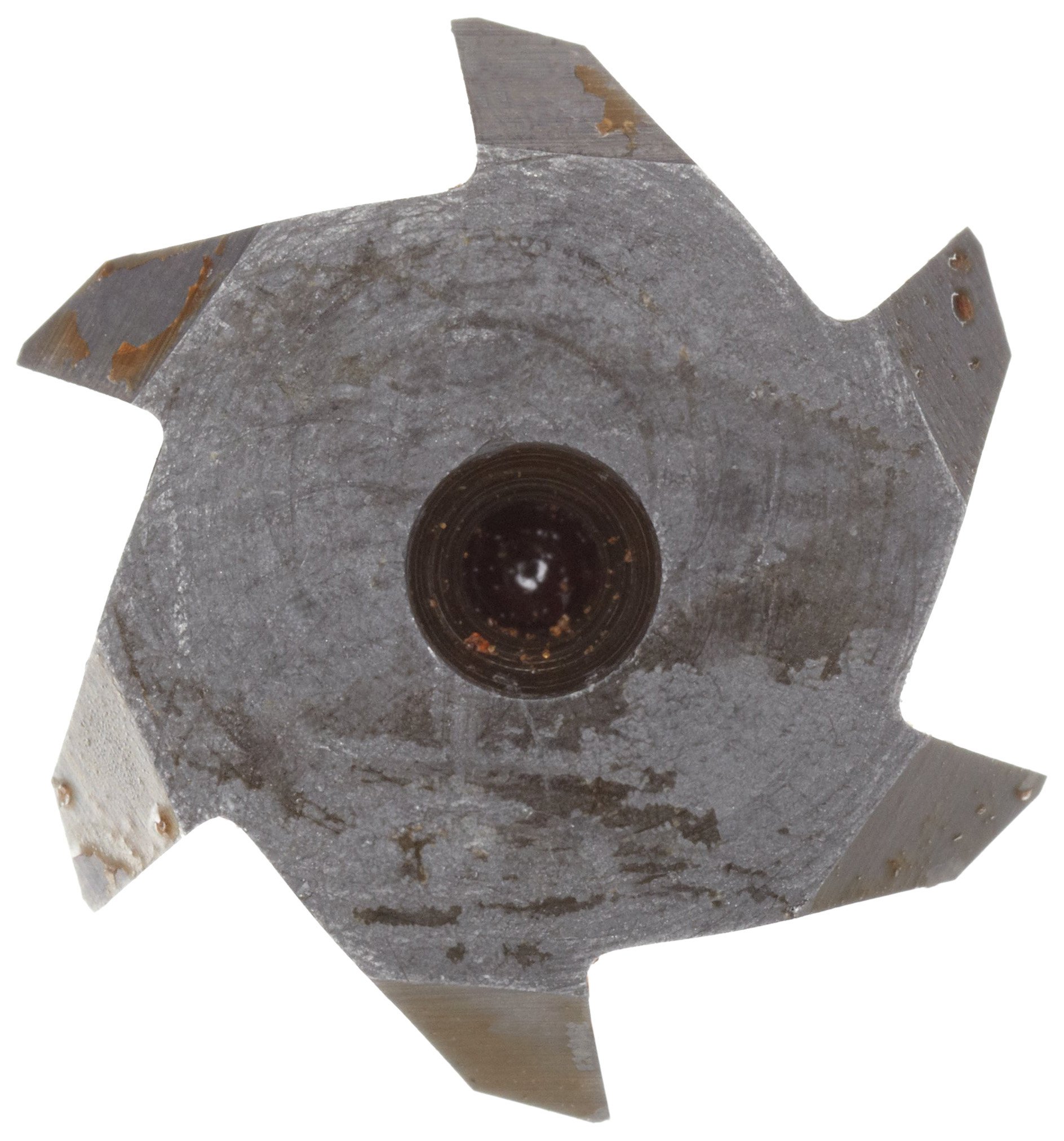

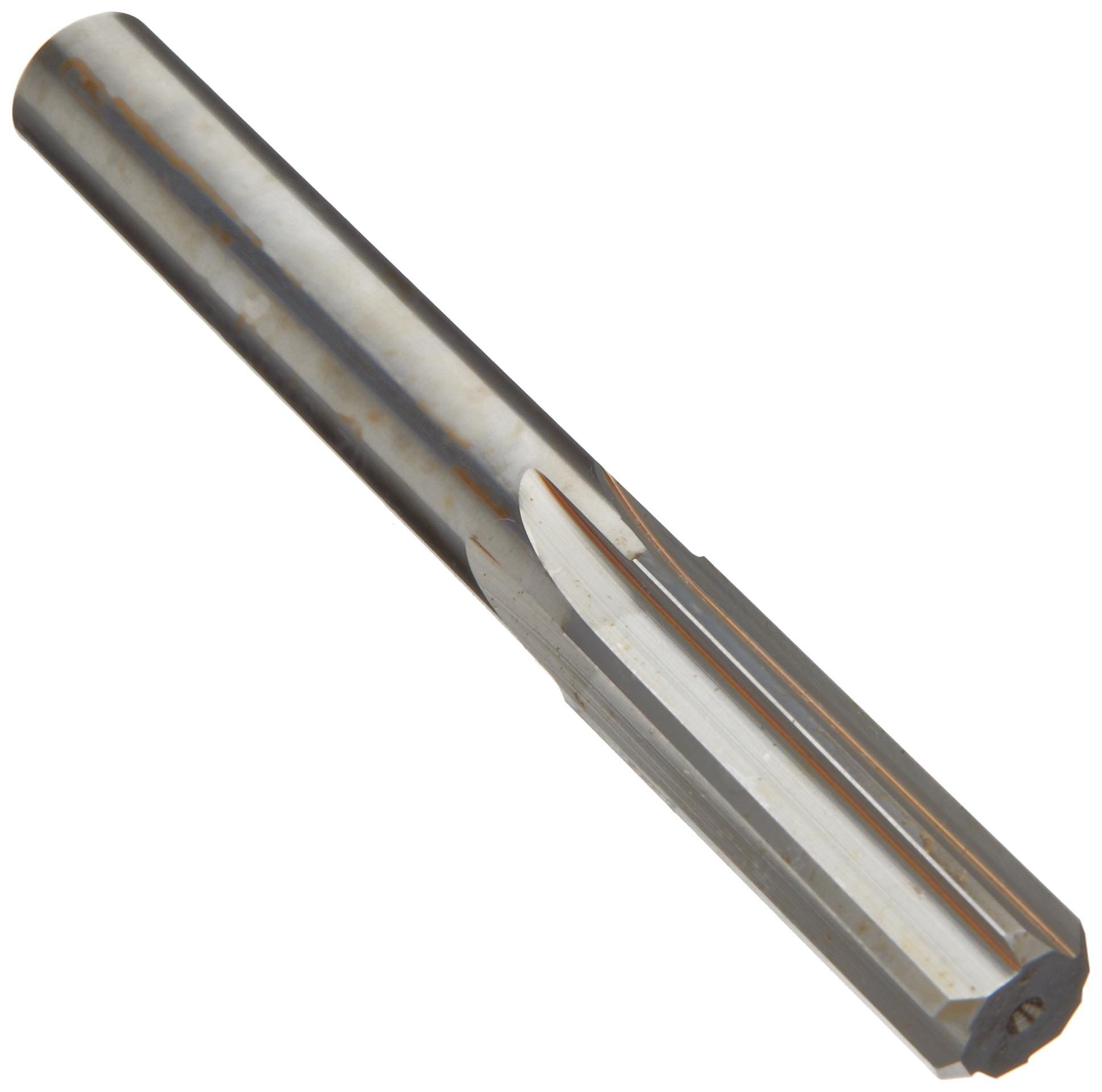

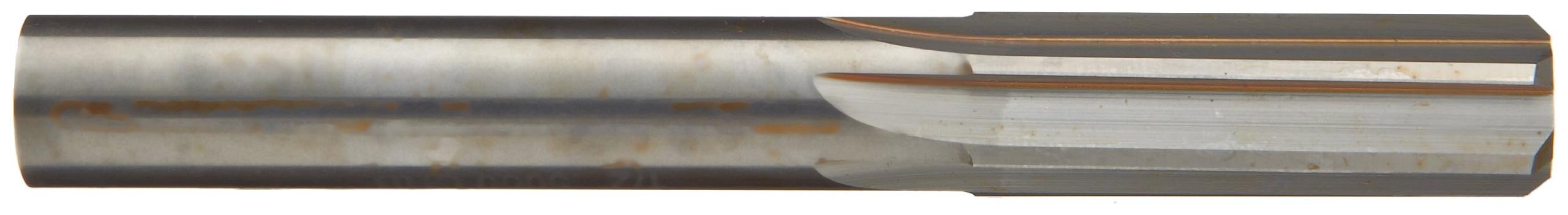

Alvord Polk 827-0 Solid Carbide Reamer, CHC (Short) Length, Straight Flute, Round Shank, Uncoated (Bright)

Be the first to review this item

Product Specifications
Cutting Direction
Right Hand
Finish Types
Uncoated (Bright)
Shank Type
Round
Material Type
Carbide
UNSPSC Code
23241611
Brand Name
Alvord Polk
Flute Type
Straight

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 7 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 99 Next 20 »
Size System of Measurement Decimal Equivalent Overall Length Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 99 Next 20 »
#1 Wire Gauge 0.2280" 3" 08101 B002PHNHS8 yes $34.87 Buy Options
#2 Wire Gauge 0.2210" 3" 08100 B002PHNHRO yes $32.12 Buy Options
#3 Wire Gauge 0.2130" 3" 08097 B002PHNHQK yes $32.12 Buy Options
#4 Wire Gauge 0.2090" 3" 08096 B002PHNHQA yes $11.83 Buy Options
#5 Wire Gauge 0.2055" 3" 08095 B002PHNHQ0 yes $32.12 Buy Options
#6 Wire Gauge 0.2040" 3" 08094 B002PHNHPG yes $32.12 Buy Options
#7 Wire Gauge 0.2010" 3" 08092 B002PHNHOW yes $30.77 Buy Options
#8 Wire Gauge 0.1990" 3" 08091 B002PHNHOC yes $32.12 Buy Options
#9 Wire Gauge 0.1960" 3" 08089 B002PHNHNS yes $12.12 Buy Options
#10 Wire Gauge 0.1935" 3" 08088 B002PHNHNI yes $32.12 Buy Options
#11 Wire Gauge 0.1910" 2-3/4" 08087 B002PHNHN8 yes $29.02 Buy Options
#12 Wire Gauge 0.1890" 2-3/4" 08086 B002PHNHMY yes $25.23 Buy Options
#13 Wire Gauge 0.1850" 2-3/4" 08080 B002PHNHKQ yes $29.02 Buy Options
#14 Wire Gauge 0.1820" 2-3/4" 08079 B002PHNHKG yes $29.02 Buy Options
#15 Wire Gauge 0.1800" 2-3/4" 08078 B002PHNHJW Usually ships in 4 to 7 weeks $29.02 Buy Options
#16 Wire Gauge 0.1770" 2-3/4" 08076 B002PHNHJC yes $29.02 Buy Options
#17 Wire Gauge 0.1730" 2-3/4" 08075 B002PHNHJ2 yes $28.81 Buy Options
#18 Wire Gauge 0.1695" 2-3/4" 08073 B002PHNHI8 yes $28.81 Buy Options
#19 Wire Gauge 0.1660" 2-3/4" 08072 B002PHNHHY yes $28.81 Buy Options
#20 Wire Gauge 0.1610" 2-3/4" 08071 B002PHNHHE yes $28.81 Buy Options

Key Features

  • Straight flute reamers are recommended for general purpose reaming to make minor enlargements to preformed holes with a very precise size and circularity
  • Straight flute reamers are good for use in through or blind holes without interruptions such as keyways (through holes extend through the entire workpiece, while blind holes do not)
  • CNC length tools are generally shorter than other machine tools. The shorter length makes for a more rigid tool, which minimizes vibration at the higher rpms available with CNC machines
  • Round shank tools are cylindrical and should be held in a good-quality toolholder in order to prevent the reamer from slipping in high torque applications, which can cause tool freeze, loss of accuracy, and tool damage
  • Carbide resists abrasion and high cutting temperatures. It can run at higher speeds and is harder than high-speed steel

Product Description

The Alvord Polk 827-0 right-hand spiral CNC length chucking reamer is a round shank tool made of tungsten carbide, and is most commonly chosen for reaming abrasive materials such as cast iron. This tool is meant for use in a CNC machine at high rpms with reduced vibration and increased accuracy compared to a longer tool. Less vibration means more precision.

Straight flute reamers are useful for uninterrupted cuts in general purpose applications. These reamers make small, circular, and precise enlargements to through and blind holes.

For reamers in the 827-0 series with 0.0280 to 0.1910 inches diameter there are four flutes, and for 0.1915 to 0.5010 there are six flutes. Tolerances are +0.0002 -0.0000 inches for all reamers in the 827-0 series.

Reamers are used to finish existing holes. When holes are created using common applications like drilling or punching they often have minute imperfections. Their roundness may be flawed, or their diameter may be slightly smaller than required. Reamers are made to exacting tolerances, so they can correct such errors and create precisely round holes of exacting dimensions. Reaming is often used before tapping screw threads.

Alvord Polk manufactures a broad family of cutting tools, brushes, and tooling components, following ISO 9001 standards for quality and environmental impact of their products. Their offices and manufacturing facilities have been located in the United States since 1881.
