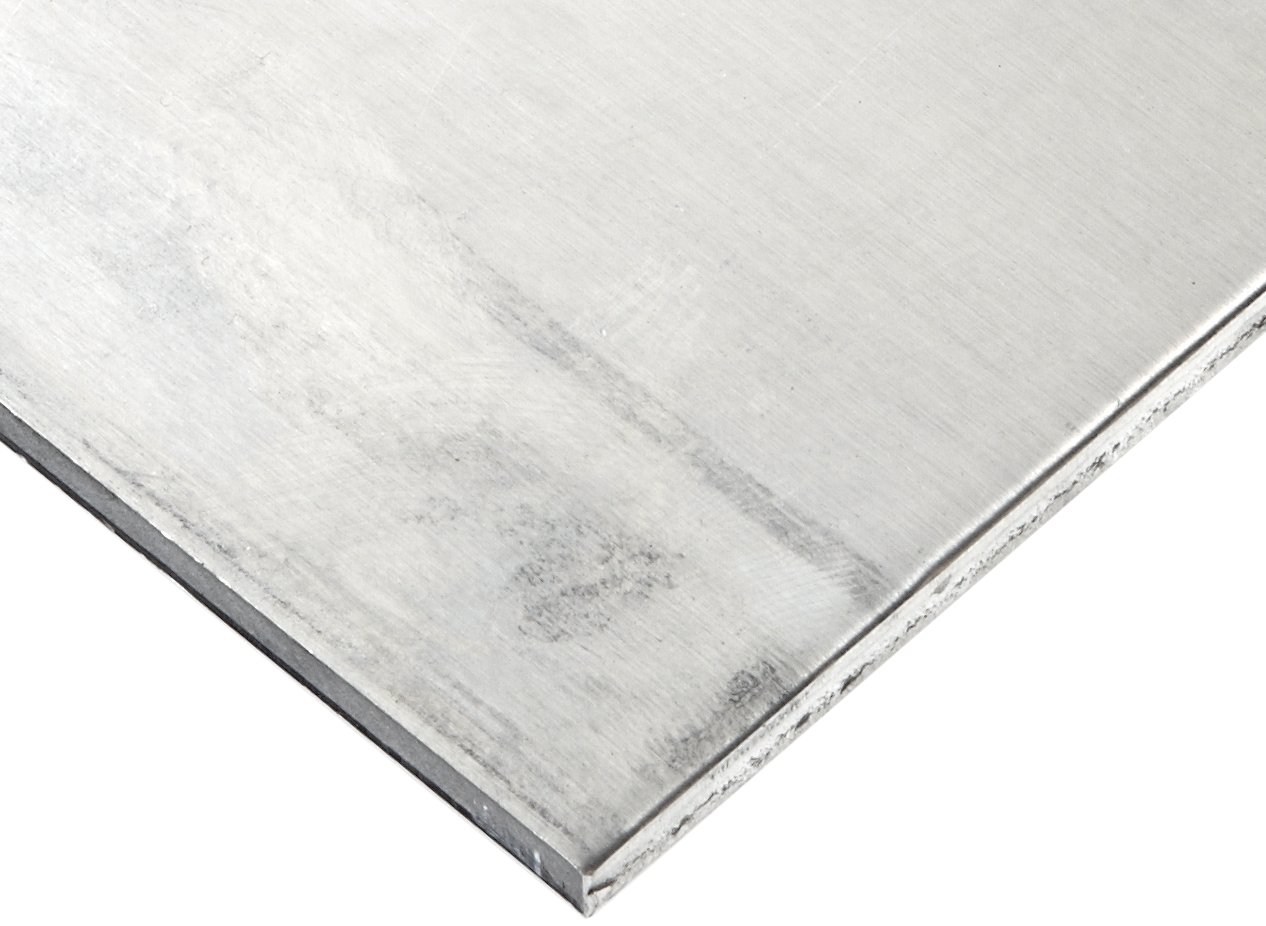

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

3003 Aluminum Sheet, Unpolished (Mill) Finish, H14 Temper, Standard Tolerance, Inch, AMS QQ-A 250/2/ASTM B209

Be the first to review this item

Product Specifications
Finish
Unpolished (Mill)
Item Shape
Sheet
Specification Met
AMS QQ-A 250/2 , ASTM B209
Temper
H14
Material Composition
Solid
Grade
3003
Material Type
Aluminum
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 19 hrs 1 min and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 26 Next 6 »
Thickness Width Overall Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 26 Next 6 »
0.032" 24" 24" 1 B003JKJBTO 12 $19.10 Buy Options
0.063" 24" 24" 1 B003JKJBVW 3 $32.25 Buy Options
0.08" 12" 12" 1 B003JKJBW6 11 $13.56 Buy Options
0.08" 24" 24" 1 B003JKJBWG Usually ships in 1 to 2 months $38.50 Buy Options
0.09" 12" 12" 1 B003JKJBXA 45 $14.06 Buy Options
0.09" 24" 24" 1 B003JKJBXU 2 $35.30 Buy Options
0.1" 12" 12" 1 B003JKJBYO 12 $9.59 Buy Options
0.1" 24" 24" 1 B003JKJBZ8 6 $42.13 Buy Options
0.19" 24" 24" 1 B003JKJC0C 6 $72.53 Buy Options
0.19" 12" 12" 1 B003JKJC02 11 $27.03 Buy Options
1/2" 24" 24" 1 B003JKJC20 Usually ships in 1 to 2 months $144.13 Buy Options
1/4" 12" 12" 1 B003JKJC0M 3 $26.63 Buy Options
1/4" 24" 24" 1 B003JKJC0W 4 $94.74 Buy Options
1/8" 12" 12" 1 B003JKJBZI 44 $16.99 Buy Options
1/8" 24" 24" 1 B003JKJBZS 7 $48.37 Buy Options
3/8" 24" 24" 1 B003JKJC1G Usually ships in 1 to 2 months $112.56 Buy Options
0.02" 12" 12" 1 B003JKJBS0 Temporarily out of stock. Order now and we'll deliver when available. $3.04 Buy Options
0.02" 24" 24" 1 B003JKJBSA 9 $14.78 Buy Options
0.025" 12" 12" 1 B003JKJBSU 42 $6.45 Buy Options
0.025" 24" 24" 1 B003JKJBT4 Temporarily out of stock. Order now and we'll deliver when available. $14.75 Buy Options

Key Features

  • 3003 aluminum provides good corrosion resistance, weldability, and formability, and is stronger than 1100 aluminum
  • Meets AMS-QQ-A-250/2 and ASTM B209 specifications
  • Unpolished (mill) surface has no finish
  • H14 temper has been strain hardened to a 1/2 hard temper
  • Standard tolerance

Product Description

The 3003 aluminum sheet with H14 temper has an unpolished (mill) surface, meets SAE Aerospace Material Specifications AMS-QQ-A-250/2 and American Society for Testing and Materials International ASTM B209 specifications, and has a standard tolerance. The 3003 aluminum alloy provides good corrosion resistance, weldability, and formability, and is stronger than 1100 aluminum. This alloy is not heat treatable, but strength can be increased by cold working. The aluminum has an H14 temper, meaning it has been strain hardened to a 1/2 hard temper.

Aluminum and aluminum alloys are lightweight compared to steel, brass, and copper, and have high strength-to-weight ratios. They offer good corrosion resistance and conductivity of heat and electricity, as well as moderate formability and machinability. Aluminum alloys include elements that modify the aluminum to achieve specific properties such as better weldability or greater strength. All series of aluminum alloys are nonmagnetic. Aluminum alloys have temper designations, indicating that the material has undergone a process to achieve certain properties of strength and hardness.

Tensile strength, used to indicate the material’s overall strength, is the peak stress it can withstand before it breaks. Corrosion resistance describes the material's ability to prevent deterioration caused by atmosphere, moisture, or other medium. Wear resistance indicates the ability to prevent surface damage caused by contact with other surfaces. Toughness describes the material's ability to absorb energy before breaking, while hardness (commonly measured as indentation hardness) describes its resistance to permanent surface deformation. Formability indicates how easily the material can be permanently shaped. Machinability describes how easily it can be cut, shaped, finished, or otherwise machined, while weldability characterizes the ability to be welded.
