Aluminum 3003 Continuous Hinge With Holes, Unfinished

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Unfinished
Mounting Type
Surface Mount
Material Type
aluminum_3003
Style Name
With Holes
UNSPSC Code
31162403
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Aug 4? Order in-stock items in the next 1 day 5 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-19 of 19
Leaf Thickness Open Width Pin Diameter Knuckle Length Screw Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-19 of 19
0.04" 1-1/4" 3/32" 1/2" #4 8 ft 1 B007XZG7YI 1 $18.42 Buy Options
0.04" 1-1/4" 3/32" 1/2" #4 6 ft 1 B005J0ISXM 77 $12.74 Buy Options
0.04" 1-1/4" 3/32" 1/2" #4 3 ft 1 B005J0VZD2 32 $10.71 Buy Options
0.04" 1-1/4" 3/32" 1/2" #4 1 ft 1 B005J0W00Y 32 $5.33 Buy Options
0.04" 1-1/2" 3/32" 1/2" #4 6 ft 1 B005J0W2OS 27 $9.96 Buy Options
0.04" 1-1/16" 3/32" 1/2" #4 6 ft 1 B005J0VVVI 81 $10.03 Buy Options
0.06" 2" 1/8" 1/2" #6 7 ft 1 B007XZG8CE 31 $19.60 Buy Options
0.06" 1-1/2" 1/8" 1/2" #6 8 ft 1 B007XZG87E 12 $16.76 Buy Options
0.06" 1-1/2" 1/8" 1/2" #6 7 ft 1 B007XZG842 34 $13.94 Buy Options
0.06" 3" 1/8" 1/2" #6 6 ft 1 B005J0K97U 4 $18.85 Buy Options
0.06" 3" 1/8" 1/2" #6 3 ft 1 B005J0WER8 14 $9.38 Buy Options
0.06" 3" 1/8" 1/2" #6 1 ft 1 B005J0WWSY 23 $5.14 Buy Options
0.06" 2" 1/8" 1/2" #6 6 ft 1 B005J0JTC6 20 $16.27 Buy Options
0.06" 2" 1/8" 1/2" #6 4 ft 1 B005J0WC2U 33 $8.26 Buy Options
0.06" 2" 1/8" 1/2" #6 3 ft 1 B005J0WVAI 21 $8.82 Buy Options
0.06" 1-1/2" 1/8" 1/2" #6 6 ft 1 B005J0W996 24 $17.32 Buy Options
0.06" 1-1/2" 1/8" 1/2" #6 3 ft 1 B005J0WU6S 26 $8.47 Buy Options
0.060" 3" 1/8" 1/2" #6 8 ft 1 B007XZG8R4 23 $19.60 Buy Options
0.060" 3" 1/8" 1/2" #6 7 ft 1 B007XZG8H4 29 $16.93 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as hollow metal doors and frames, and for use with wood and aluminum
  • Aluminum 3003 is lightweight, weldable, and more corrosion resistant than steel, though not as strong or corrosive resistant as aluminum 5052
  • Countersunk holes for convenience when mounting
  • Unfinished for projects with less exposure to corrosive environments

Product Description

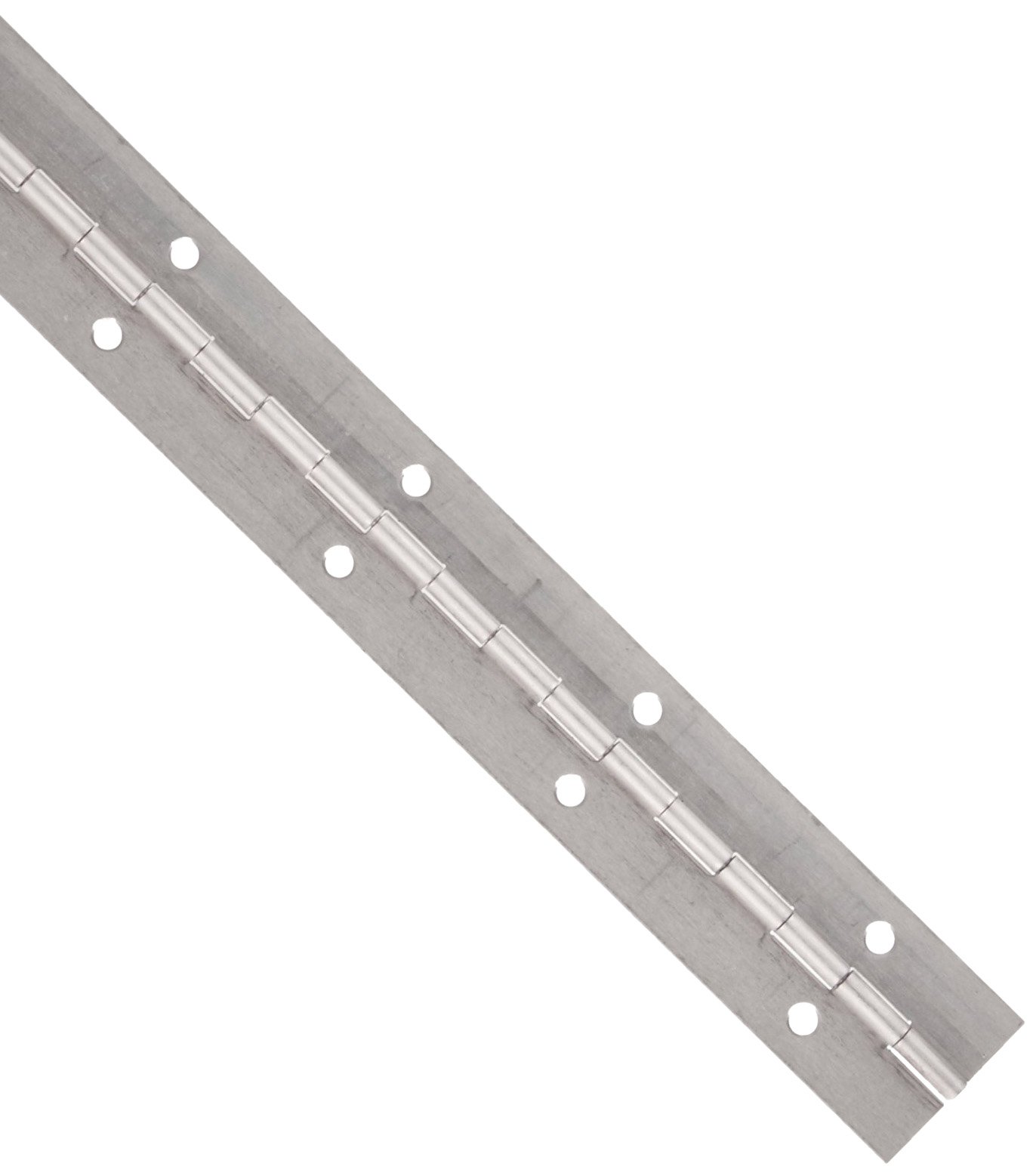

The aluminum 3003 continuous hinge has countersunk holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined. This hinge is suitable for hollow metal doors and frames, and for use with wood and aluminum. Aluminum 3003 is lightweight, weldable, and more corrosion resistant than steel. However, aluminum 3003 does not provide the same strength as aluminum 5052, stainless steel, or steel and is less corrosion resistant than aluminum 5052. Since the hinge is unfinished, it is suited for applications that will not be exposed to corrosive environments. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
