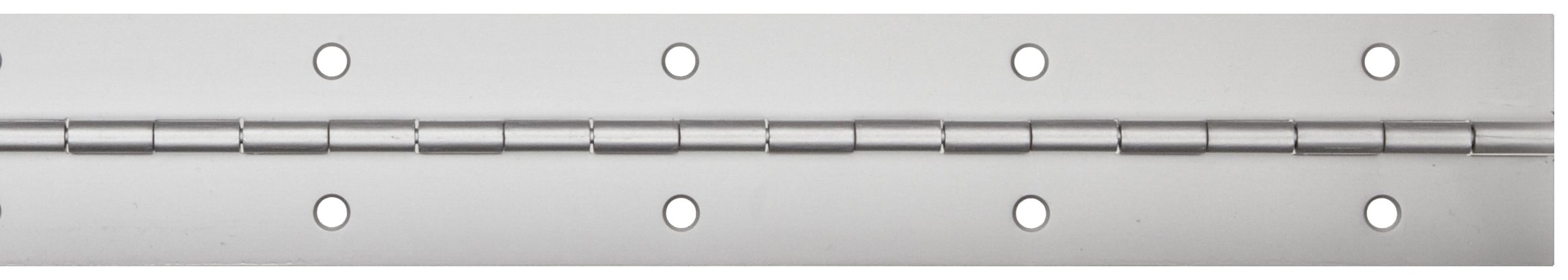

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Aluminum 3003 Continuous Hinge With Holes, Clear Anodized Finish

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Clear Anodized
Mounting Type
Surface Mount
Material Type
aluminum_3003
Style Name
With Holes
Brand Name
Small Parts

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 35 Next 15 »
Leaf Thickness Open Width Pin Diameter Knuckle Length Screw Size Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-20 of 35 Next 15 »
0.04" 2" 3/32" 1/2" #4 8 ft 1 B007XZG56I Temporarily out of stock. Order now and we'll deliver when available. $24.53 Buy Options
0.04" 2" 3/32" 1/2" #4 7 ft 1 B007XZG50O Temporarily out of stock. Order now and we'll deliver when available. $23.35 Buy Options
0.04" 2" 3/32" 1/2" #4 5 ft 1 B007XZG4SC Temporarily out of stock. Order now and we'll deliver when available. $19.71 Buy Options
0.04" 2" 3/32" 1/2" #4 4 ft 1 B007XZG4JQ Temporarily out of stock. Order now and we'll deliver when available. $20.09 Buy Options
0.04" 1-1/2" 3/32" 1/2" #4 8 ft 1 B007XZG4D2 Temporarily out of stock. Order now and we'll deliver when available. $23.63 Buy Options
0.04" 1-1/2" 3/32" 1/2" #4 7 ft 1 B007XZG43M Temporarily out of stock. Order now and we'll deliver when available. $21.90 Buy Options
0.04" 1-1/2" 3/32" 1/2" #4 5 ft 1 B007XZG3UG Temporarily out of stock. Order now and we'll deliver when available. $19.12 Buy Options
0.04" 1-1/16" 3/32" 1/2" #4 7 ft 1 B007XZG3ME Temporarily out of stock. Order now and we'll deliver when available. $22.79 Buy Options
0.04" 1-1/16" 3/32" 1/2" #4 5 ft 1 B007XZG2R0 Temporarily out of stock. Order now and we'll deliver when available. $19.76 Buy Options
0.04" 2" 3/32" 1/2" #4 6 ft 1 B005J0JBT2 14 $18.05 Buy Options
0.04" 2" 3/32" 1/2" #4 3 ft 1 B005J0JEHG 26 $13.77 Buy Options
0.04" 2" 3/32" 1/2" #4 1 ft 1 B005J0W6NA 22 $10.08 Buy Options
0.04" 1-1/2" 3/32" 1/2" #4 6 ft 1 B005J0J2E6 36 $20.26 Buy Options
0.04" 1-1/2" 3/32" 1/2" #4 3 ft 1 B005J0J6V0 37 $12.83 Buy Options
0.04" 1-1/16" 3/32" 1/2" #4 6 ft 1 B005J0IMTC 43 $16.53 Buy Options
0.04" 1-1/16" 3/32" 1/2" #4 3 ft 1 B005J0VY24 34 $8.99 Buy Options
0.06" 2" 1/8" 1/2" #6 8 ft 1 B007XZG77A 33 $24.40 Buy Options
0.06" 2" 1/8" 1/2" #6 7 ft 1 B007XZG71G Temporarily out of stock. Order now and we'll deliver when available. $22.89 Buy Options
0.06" 2" 1/8" 1/2" #6 5 ft 1 B007XZG6W6 26 $21.45 Buy Options
0.06" 2" 1/8" 1/2" #6 2 ft 1 B007XZG6L2 Temporarily out of stock. Order now and we'll deliver when available. $19.81 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as hollow metal doors and frames, and for use with wood and aluminum
  • Aluminum 3003 is lightweight, weldable, and more corrosion resistant than steel, though not as strong or corrosive resistant as aluminum 5052
  • Countersunk holes for convenience when mounting
  • Clear anodized finish for increased surface hardness, the ability to be painted, and additional protection against corrosion

Product Description

The aluminum 3003 continuous hinge has countersunk holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined. This hinge is suitable for hollow metal doors and frames, and for use with wood and aluminum. Aluminum 3003 is lightweight, weldable, and more corrosion resistant than steel. However, aluminum 3003 does not provide the same strength as aluminum 5052, stainless steel, or steel and is less corrosion resistant than aluminum 5052. The clear anodized finish gives this hinge increased surface hardness, the ability to be painted, and additional protection against corrosion. This finished hinge is suited for painted cabinetry, painted doors, and applications with dyed aluminum. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
