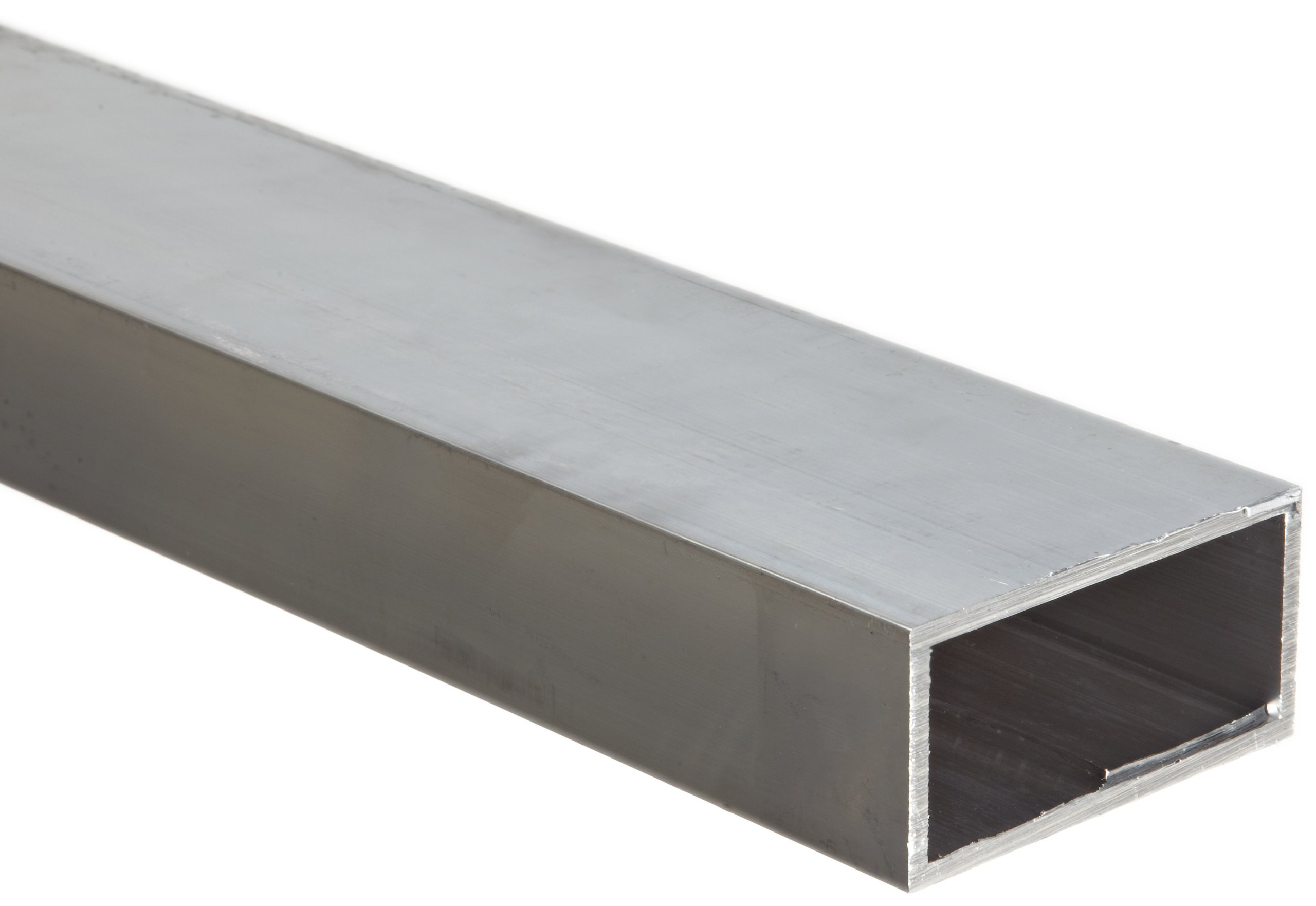

6063 Aluminum Hollow Rectangular Bar, T52 Temper, Extruded, Inch, ASTM B221

Be the first to review this item

Product Specifications
Item Shape
Hollow Rectangular Bar
Material Type
Aluminum
Brand Name
Small Parts
Length Tolerance
+0.125", -0.000  inches
Specification Met
ASTM B221
Temper
T52
Grade
6063
Metal Construction
Extruded
UNSPSC Code
30000000
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 17 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 29 Next 9 »
Item thickness string Item width string Wall thickness string Item length string Number of items ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 29 Next 9 »
1 inches 2 inches 0.125 inches 36 inches 1 B003U6I8SM yes $24.96 Buy Options
1 inches 2 inches 0.125 inches 72 inches 1 B003U6I8SW yes $43.72 Buy Options
1 inches 4 inches 0.125 inches 36 inches 1 B003U6I8T6 yes $40.74 Buy Options
1 inches 4 inches 0.125 inches 72 inches 1 B003U6I8TQ yes $62.28 Buy Options
1.25 inches 3 inches 0.125 inches 36 inches 1 B003U6I8U0 yes $37.58 Buy Options
1.25 inches 3 inches 0.125 inches 72 inches 1 B003U6I8UK Usually ships in 1 to 2 months $51.41 Buy Options
1.5 inches 2 inches 0.125 inches 36 inches 1 B003U6I8UU yes $26.48 Buy Options
1.5 inches 2 inches 0.125 inches 72 inches 1 B003U6I8VE yes $48.07 Buy Options
1.5 inches 3 inches 0.125 inches 36 inches 1 B003U6I8VO yes $35.55 Buy Options
1.5 inches 3 inches 0.125 inches 72 inches 1 B003U6I8VY yes $56.60 Buy Options
1.5 inches 4 inches 0.125 inches 36 inches 1 B003U6I8WI Usually ships in 1 to 2 months $46.02 Buy Options
1.5 inches 4 inches 0.125 inches 72 inches 1 B003U6I8X2 yes $72.39 Buy Options
1.75 inches 3 inches 0.058 inches 36 inches 1 B003U6I8XM yes $30.02 Buy Options
1.75 inches 3 inches 0.058 inches 72 inches 1 B003U6I8XW yes $40.59 Buy Options
1.75 inches 3 inches 0.125 inches 36 inches 1 B003U6I8YQ yes $39.96 Buy Options
1.75 inches 3 inches 0.125 inches 72 inches 1 B003U6I8Z0 yes $65.84 Buy Options
1.75 inches 4 inches 0.125 inches 36 inches 1 B003U6I8ZK yes $50.92 Buy Options
1.75 inches 4 inches 0.125 inches 72 inches 1 B003U6I8ZU yes $81.52 Buy Options
1.75 inches 5 inches 0.125 inches 36 inches 1 B003U6I904 yes $47.21 Buy Options
1.75 inches 5 inches 0.125 inches 72 inches 1 B003U6I90E yes $75.80 Buy Options

Key Features

  • 6063 aluminum, also known as architectural aluminum, provides excellent corrosion resistance and good weldability
  • Meets ASTM B221 specifications
  • Extruded into the shape by compressing metal and pushing it through a die
  • Heat treated for increased strength

Product Description

The 6063 aluminum rectangular tubing with T52 temper meets American Society for Testing and Materials International ASTM B221 specifications. The 6063 aluminum alloy, also known as architectural aluminum, is a medium-strength material with excellent corrosion resistance and good weldability. The material has been extruded, a process of compressing metal and pushing it through a die to create the shape. The aluminum has a T52 temper, meaning it has been heat treated for increased strength.

Aluminum and aluminum alloys are lightweight compared to steel, brass, and copper, and have high strength-to-weight ratios. They offer good corrosion resistance and conductivity of heat and electricity, as well as moderate formability and machinability. Aluminum alloys include elements that modify the aluminum to achieve specific properties such as better weldability or greater strength. All series of aluminum alloys are nonmagnetic. Aluminum alloys have temper designations, indicating that the material has undergone a process to achieve certain properties of strength and hardness.

Tensile strength, used to indicate the material’s overall strength, is the peak stress it can withstand before it breaks. Corrosion resistance describes the material's ability to prevent deterioration caused by atmosphere, moisture, or other medium. Wear resistance indicates the ability to prevent surface damage caused by contact with other surfaces. Toughness describes the material's ability to absorb energy before breaking, while hardness (commonly measured as indentation hardness) describes its resistance to permanent surface deformation. Formability indicates how easily the material can be permanently shaped. Machinability describes how easily it can be cut, shaped, finished, or otherwise machined, while weldability characterizes the ability to be welded.
