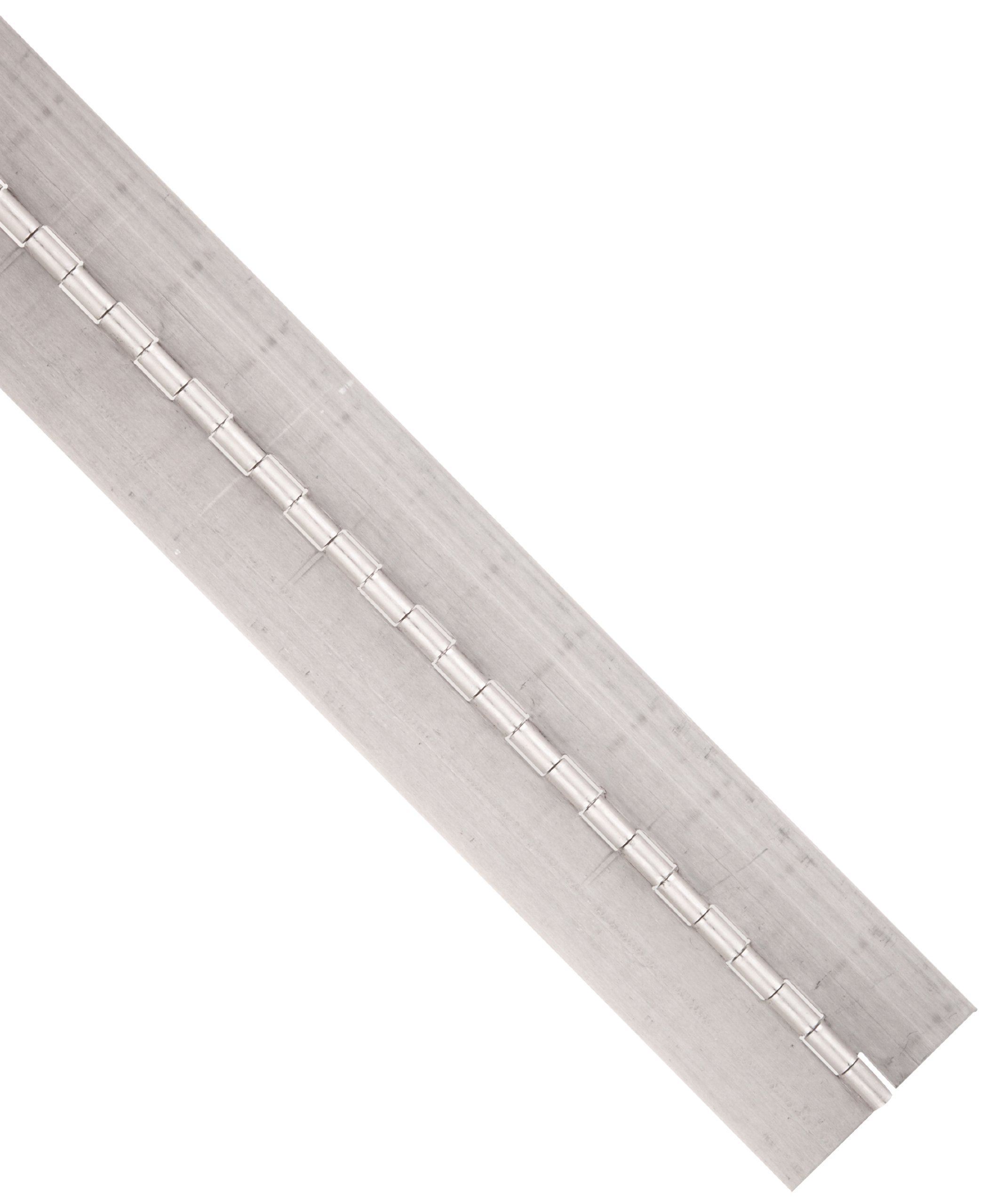

Aluminum 5052 Continuous Hinge Without Holes, Unfinished

Be the first to review this item

Product Specifications
Cross Section Shape
Flat
Exterior Finish
Unfinished
Mounting Type
Surface Mount
Material Type
aluminum_5052
Style Name
Without Holes
UNSPSC Code
31162403
Brand Name
Small Parts
Screw Size
N/A

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 11 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 123 Next 20 »
Leaf Thickness Open Width Pin Diameter Knuckle Length Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All
Currently showing 1-20 of 123 Next 20 »
0.035" 3/4" 1/16" 1/4" 8 ft 1 B006893MQG 12 $27.11 Buy Options
0.035" 3/4" 1/16" 1/4" 4 ft 1 B006893LFI 24 $16.83 Buy Options
0.035" 1-3/64" 1/16" 1/4" 8 ft 1 B006893P40 Usually ships in 2 to 3 weeks $21.19 Buy Options
0.035" 1-3/64" 1/16" 1/4" 4 ft 1 B006893O0A 21 $19.96 Buy Options
0.035" 1-1/4" 1/16" 1/4" 8 ft 1 B006893RS4 4 $27.78 Buy Options
0.035" 1-1/4" 1/16" 1/4" 4 ft 1 B006893Q94 15 $17.52 Buy Options
0.035" 1-1/2" 1/16" 1/4" 8 ft 1 B006893UGS 41 $18.75 Buy Options
0.035" 1-1/2" 1/16" 1/4" 4 ft 1 B006893T3M 30 $20.12 Buy Options
0.04" 2" 5/64" 1/2" 8 ft 1 B007HBM2A6 27 $13.57 Buy Options
0.04" 1-1/4" 5/64" 1/2" 8 ft 1 B007HBM17U Temporarily out of stock. Order now and we'll deliver when available. $10.06 Buy Options
0.04" 2" 5/64" 1/2" 7 ft 1 B007HBM1TS 44 $25.88 Buy Options
0.04" 1-1/2" 5/64" 1/2" 8 ft 1 B007HBM0QW Temporarily out of stock. Order now and we'll deliver when available. $10.25 Buy Options
0.04" 2" 5/64" 1/2" 6 ft 1 B005QSMA04 13 $11.15 Buy Options
0.04" 1-1/4" 5/64" 1/2" 6 ft 1 B005QSM6E4 59 $10.27 Buy Options
0.04" 1-1/2" 5/64" 1/2" 6 ft 1 B005QSM7A2 51 $13.93 Buy Options
0.05" 2-1/2" 7/64" 1/2" 8 ft 1 B007HBMD0A Temporarily out of stock. Order now and we'll deliver when available. $14.32 Buy Options
0.05" 2-1/2" 7/64" 1/2" 7 ft 1 B007HBMCH4 37 $14.69 Buy Options
0.05" 3" 7/64" 1/2" 4 ft 1 B007HBMDOG 13 $9.46 Buy Options
0.05" 1-1/4" 7/64" 1/2" 7 ft 1 B007HBM5MQ Temporarily out of stock. Order now and we'll deliver when available. $11.37 Buy Options
0.05" 2-1/2" 7/64" 1/2" 5 ft 1 B007HBMC0G Temporarily out of stock. Order now and we'll deliver when available. $10.66 Buy Options

Key Features

  • Surface-mounted for applications requiring continuous support along the full length of the hinge, such as hollow metal doors and frames, and for use with wood and aluminum
  • Aluminum 5052 is weldable, stronger than aluminum 3003, and more corrosion resistant than steel and aluminum 3003
  • No holes allow hinge to be spot welded in place or drilled for use with screws and rivets
  • Unfinished for projects with less exposure to corrosive environments

Product Description

The aluminum 5052 continuous hinge has no holes and is suitable for surface-mounted applications requiring uninterrupted support along the full length of the pieces being joined. This hinge is suitable for hollow metal doors and frames, and for use with wood and aluminum. Aluminum 5052 is weldable, stronger than aluminum 3003, and more corrosion resistant than steel and aluminum 3003. However, aluminum 5052 does not provide the same strength as steel and stainless steel. This hinge can be customized for various surface-mounting needs because it does not have pre-drilled holes; it must be spot welded in place, or drilled for use with screws and rivets. Since the hinge is unfinished, it is suited for applications that will not be exposed to corrosive environments. The range of motion for this hinge is 270 degrees from the folded position.

Continuous hinges, also called piano hinges, provide support to run the full length of the doors, panels, or pieces being joined together. They are manufactured in a variety of materials and sizes, with or without holes, finished or unfinished, and can be cut to specific sizes. They also vary by knuckle length, pin diameter, leaf thickness, and open width. The knuckle is the tubular part of the hinge through which the pin passes, and knuckle length is the measurement of an individual section. The pin runs the length of the hinge holding the leaves together. The leaf is the flat metal portion of the hinge that extends laterally from the knuckle and revolves around the pin. Open width is the dimension from the outer edge of one leaf to the outer edge of the other when the hinge is fully open.
