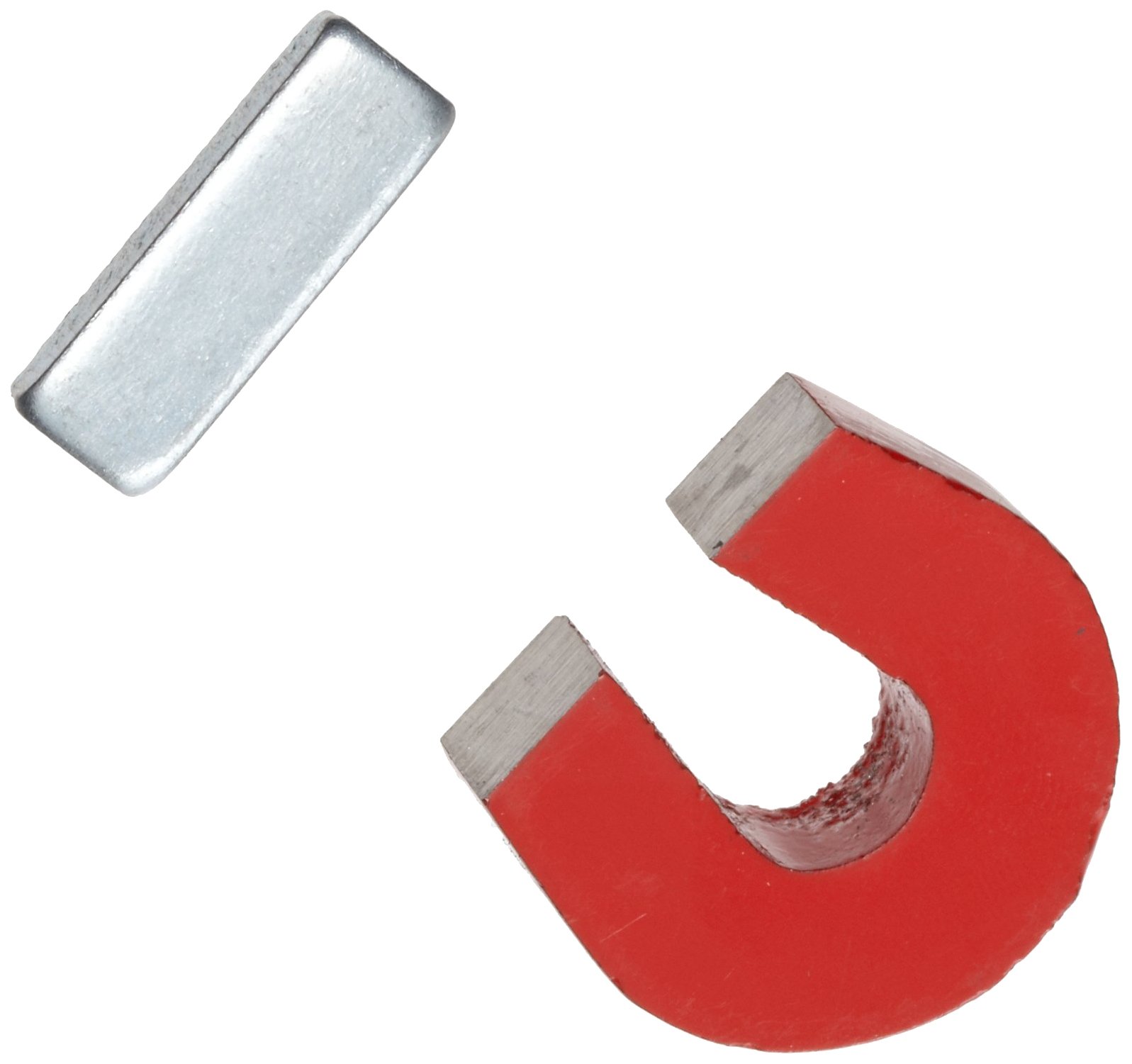

Red Cast Alnico 5 Horseshoe Magnet With Keeper, 1.133" Wide, 1" High, 0.318" Thick (Pack of 1)

Be the first to review this item


Specifications for this item
Number of Items
Overall Width
1.133  inches
Material Type
Cast Alnico 5
Part Number
Item Weight
0.1 pounds
0.318  inches
Brand Name
Small Parts
Upper Temperature Range
975  Degrees Fahrenheit
Hazmat item
Y  Unknown
Overall Length
1  inches

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Cast Alnico 5 horseshoe magnet offers high heat resistance and medium magnetic pull
  • Maximum of 2 lb. of pull strength
  • High resistance to corrosion
  • Low resistance to demagnetizing
  • Magnet assembly includes a keeper to retain magnetic strength

Package Details

Shipping Weight: 0.1 pounds
Package Size: 4.8 x 2.8 x 0.3 inches

Product Description

The cast Alnico 5 horseshoe magnet with red coating offers high heat resistance and medium magnetic pull, and comes with a keeper to retain magnetic strength. The magnet provides a maximum of 2 lb. of pull strength to a perpendicular surface (pounds of pull strength does not apply to shear force). The magnet can withstand temperatures up to 975 degrees F. Resistance to demagnetizing is low and resistance to corrosion is high.

Alnico magnets are made by casting or sintering aluminum, nickel, and cobalt with iron and small amounts of other metals to enhance the magnet grade’s specific properties. Magnetism is very stable in Alnico magnets, even in high-temperature technical applications. They can be formed in fairly complex shapes and produce highly magnetic fields in certain configurations. Alnico magnets are easily de-magnetized and re-magnetized. Alnico magnets can be plated with a variety of metals or given a coating that is usually red. They do not corrode.
