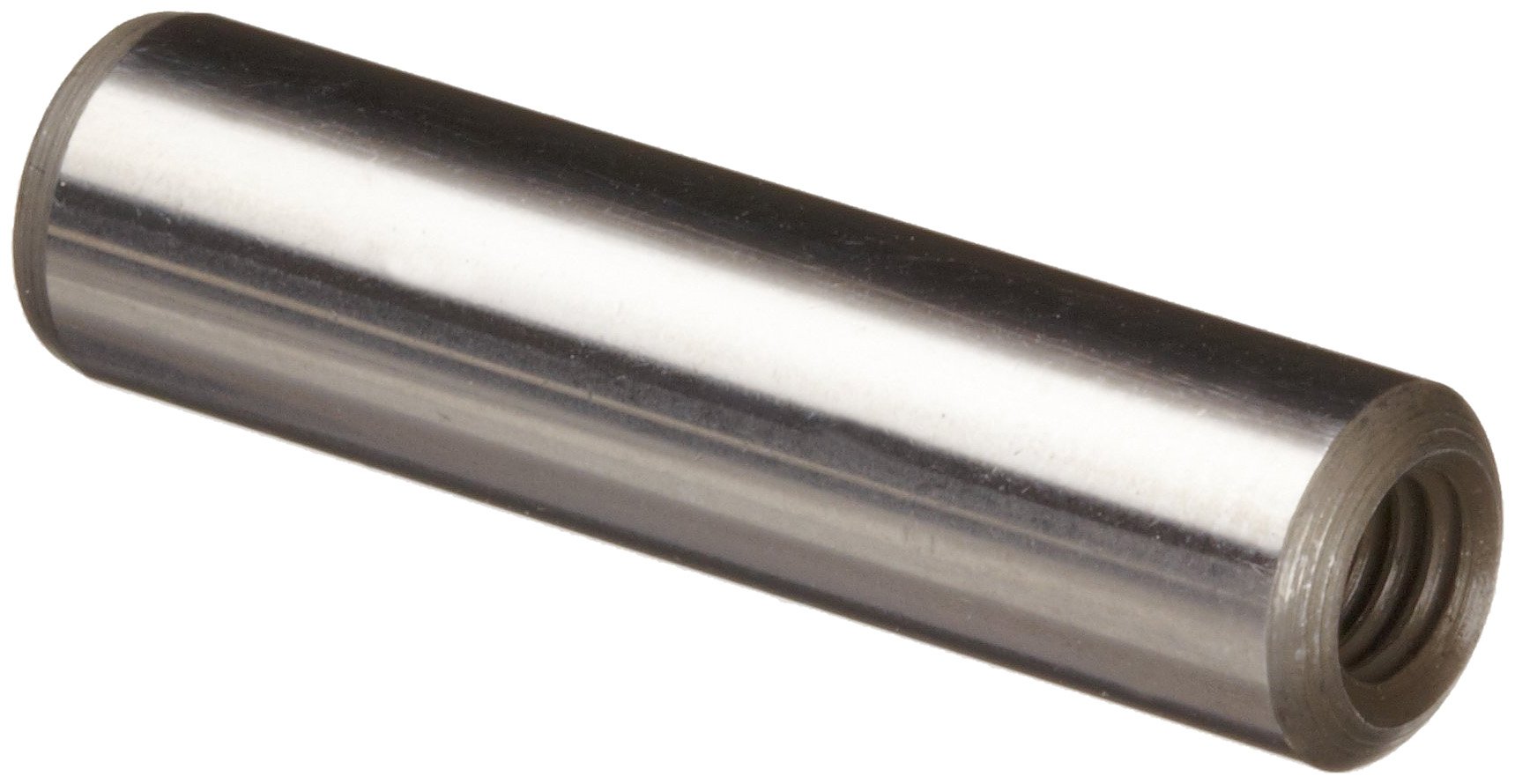

Alloy Steel Flat Vented Pull-Out Dowel Pin
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Finish Types
- Plain
- Length Tolerance
- +0.01"/-0.01 inches
- Material Type
- Case Hardened Alloy Steel
- Outside Diameter Tolerance
- +0.0001"/-0.0001 inches
- Pin Type
- Standard Flat Vented Pull-Out
- Specification Met
- ASME/ANSI B18.8.2-2000
- System of Measurement
- Inch
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, May 24? Order in-stock items in the next 17 hours 23 minutes and choose One-Day Shipping at checkout.
Key Features
- Length tolerance: +/- 0.010"
- Core hardness: 47-58 Rockwell C
- Diameter tolerance: +/- 0.0001"
- Surface hardness: 60-64 Rockwell C
- Meets specification ASME B18.8.2
Product Description
Internally threaded hole allows removal of pull dowels with a standard screw. Typically used in blind hole applications. Dowels feature a groove cut to allow trapped air to be released. Constructed of heat treated alloy steel for long tool life.
