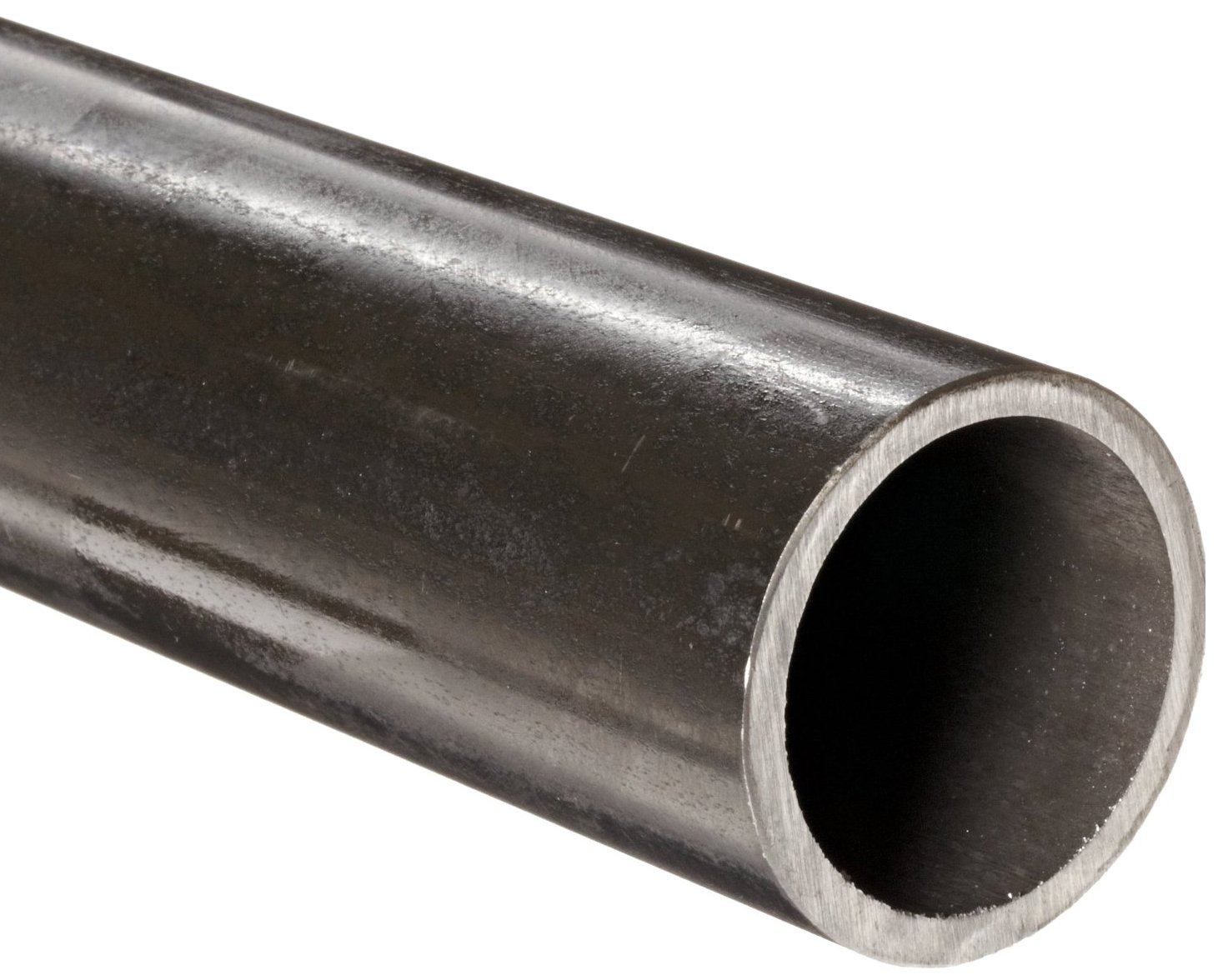

Alloy Steel 4130 Round Tubing, MIL-T 6736B

Be the first to review this item

Product Specifications
Specification Met
MIL-T 6736B
Item Shape
Round
Material Type
chromium_molybdenum_steel_4130
Brand Name
Small Parts
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-20 of 53 Next 20 »
Outside Diameter Inside Diameter Wall Thickness Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 53 Next 20 »
1/4" 0.134" 0.058" 12" 1 B000H9LQPC 2 $5.93 Buy Options
5/16" 0.1825" 0.065" 36" 1 B000H9QCL0 1 $33.19 Buy Options
5/16" 0.1825" 0.065" 12" 1 B000H9QCK6 5 $11.34 Buy Options
3/8" 0.277" 0.049" 48" 1 B000H9K1QM 1 $18.27 Buy Options
3/8" 0.245" 0.065" 48" 1 B000H9K1T4 1 $23.23 Buy Options
3/8" 0.245" 0.065" 24" 1 B000H9K1SA 1 $15.34 Buy Options
1/2" 0.384" 0.058" 36" 1 B000H9PJ3C 1 $25.44 Buy Options
1/2" 0.384" 0.058" 12" 1 B000H9NZ4M Usually ships in 3 to 5 weeks $11.17 Buy Options
3/4" 0.56" 0.095" 72" 1 B000H9M1QU 1 $30.79 Buy Options
3/4" 0.56" 0.095" 12" 1 B000H9PEB4 Usually ships in 4 to 5 weeks $9.70 Buy Options
3/4" 0.652" 0.049" 12" 1 B000H9P12Q 1 $7.93 Buy Options
3/4" 0.56" 0.095" 60" 1 B000H9PEBO 1 $28.79 Buy Options
3/4" 0.375" 0.1875" 12" 1 B000H9P7OS 3 $15.58 Buy Options
7/8" 0.709" 0.083" 36" 1 B000H9P7LQ 1 $29.50 Buy Options
7/8" 0.745" 0.065" 60" 1 B000H9NH0O 1 $32.84 Buy Options
7/8" 0.745" 0.065" 36" 1 B000H9K0CC 1 $24.74 Buy Options
7/8" 0.709" 0.083" 48" 1 B000H9P7MA 1 $33.07 Buy Options
1" 0.93" 0.035" 12" 1 B000H9PJ1Y 2 $9.47 Buy Options
1" 0.902" 0.049" 24" 1 B000H9K0G8 1 $17.08 Buy Options
1" 0.50" 0.25" 12" 1 B000H9V9FY 2 $18.72 Buy Options

Key Features

  • Round metal tubing for use in aircraft and transportation structural applications
  • Alloy steel 4130 for more bendability and weldability than alloy steel 4140/4142
  • Seamless construction for a smoother bore than welded tubing
  • Meets MIL-T-6736B and SAE AMS6360 specifications for quality assurance

Product Description

This alloy steel 4130 seamless round tubing is suitable for use in aircraft and transportation structural applications. The tubing is seamless for a smoother bore than welded tubing. It is alloyed with chromium and molybdenum and has more bendability and weldability than alloy steel 4140/4142. This seamless round tubing meets MIL-T-6736B and Society of American Engineers (SAE) AMS6360 specifications for quality assurance and is suitable for use in applications such as bicycle frames and automotive roll cages.

Metal tubing, also called fractional tubing, is used to transfer liquids, air, or solids, and it is characterized by a round shape and a hollow center. Metal tubing is commonly made with various grades of austenitic stainless steel, aluminum, copper, brass, and titanium materials and their alloys. Construction types include seamless, welded, or welded and drawn. Seamless tubing has no seam or weld point, which enables it to better withstand high pressure and resist corrosion. Welded tubing, made by rolling and welding metal sheet stock, is weaker than and not as rounded as seamless tubing, but it has a more consistent wall thickness for tighter wall tolerances. Welded and drawn tubing, also known as "drawn over mandrel" (DOM), is typically welded tubing that is drawn through a die and over a mandrel to create a smooth inner diameter, which gives the tubing comparable corrosion resistance to seamless tubing while still offering welded tubing's tighter wall tolerances. Compression, vacuum, sanitary, and flared fittings connect tubing or redirect flow in a fluid handling system. Metal tubing is used in HVAC and plumbing systems and for applications in the aerospace, automotive, chemical processing, food and beverage, manufacturing, and medical industries.
