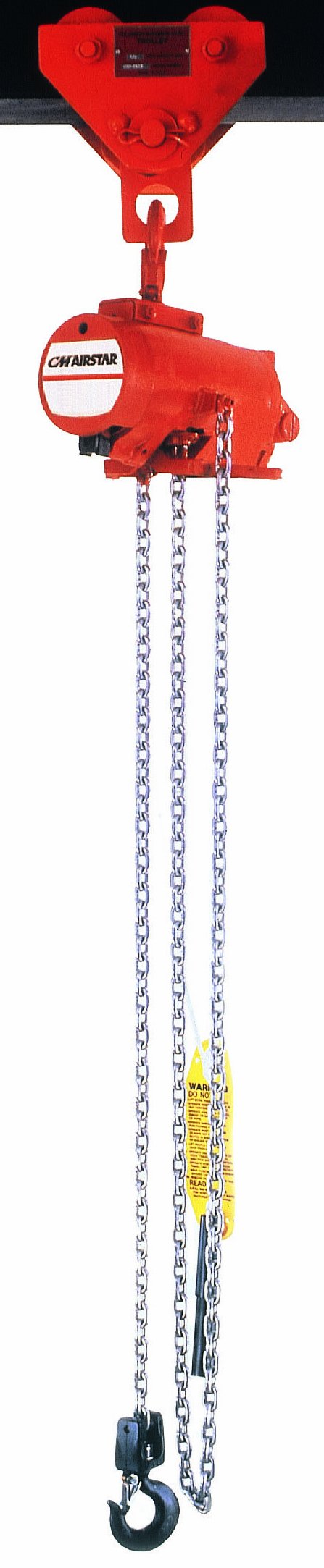

CM 7404A AirStar Spark Resistant Link Chain Air Hoist with Pull Cord Control and Hook Suspension, 1500 lbs Capacity, 10' Lift Height, 29 fpm Lift Speed, 48 SCFM, 90 psi

Be the first to review this item

ASIN B008VGK4D8

Specifications for this item
Number of Items
1
Overall Height
15-1/4  inches
Maximum Lifting Height
10  feet
Maximum Lifting Speed
29  FPM
Material Type
Aluminum
Part Number
7404A
Inside Width
1-1/8  inches
Brand Name
CM
Mounting Type
Swivel Hook
Maximum Pressure
90  PSI
Load Capacity
750  pounds
List price:
$4,748.00
Price:
$3,668.08
You save:
$1,079.92 (23%)
Quantity:

Usually ships in 2 to 3 weeks

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Positive action, heavy duty shoe type brake that holds the load
  • Accurately machined heat treated alloy steel spur gears
  • Aluminum frame and end cover contributes to the lightweight, easily portable, and rugged design
  • Pull cord control hoists provide a lightweight, economical hoist for accurate control of loads
  • Lifetime warranty

Package Details

Shipping Weight: 49 pounds
Package Size: 30 x 30 x 15 inches

Product Description

The CM AirStar chain hoist features variable speed pneumatic power in a compact lightweight hoist for general commercial applications lifting loads. Hoistaloy stainless steel load chain for spark resistant, medium duty loads. Spark resistant models for hazardous environments. Multi-vane rotary air motor for high torque, smooth operation. Inlet air swivel with built-in strainer provides free hoist movement. External brake adjustment. Limit stops prevent over-travel in upper and lowering directions. Equa-torque gearing of alloy steel, heat treated spur gears are accurately machined to provide a close meshed, compact gear reduction. Tapped exhaust port 1/2 NPTF, for cleanroom applications or to add a supplemental muffler in addition to the built-in muffler for even quieter operation. Metric rated. Made in USA. Air consumption: 48 SCFM at 90 psi. Air inlet: 3/8 NPTF. Swivel hook mounting. Powder-Coat finish. 18" headroom. Double reeving. 52 FPM maximum lowering speed.
