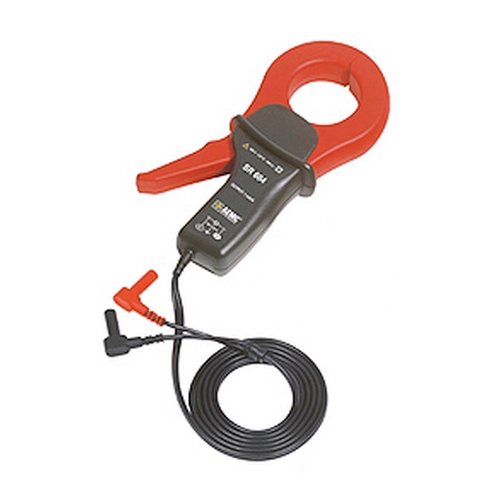

The SR704 has an integral 5 feet lead terminated by shrouded banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important. The Model SR704 is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States. Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measure-ments of current for power and power quality measurements. The high quality magnetic cores and uniform windings provide sensitivity for very low level current measurements, as well as measurements up to 1200AAC. The Model SR704 works as a traditional current transformer (with a ratio of 1000:1) and provides current outputs in mA/A for use on DMMs, power and harmonic meters, data loggers, recorders or instruments with current ranges. The Model SR701 uses a custom Nickel Cove to improve accuracy and phase shift on the low end of the measurement range. Ergonomic design and easy operation. Available with mA output signals. Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters. Applications: power quality measuring, low industrial loads, measuring around cable bundles, power load monitoring, waveform analysis. Overload: 1200A for 40 min ON, 20 min OFF. Frequency Range: 30Hz to 5kHz; current derating above 1kHz using the formula: 1000A x 1F (in kHz). Working/Common Mode Voltage: 600Vrms CAT III. Operating Temperature: -14 to 122 degree F. Storage Temperature: -4 to 158 degree F. Operating Relative Humidity: 0 to 85 percent at 35 degree C. Measures: 4-23/64" length by 8-1/2" width by 1-49/64" height. Polycarbonate Material: Handles: Polycarbonate + ABS, Gray, UL94 V0. Jaws: Polycarbonate, Red, UL94 V0.
