AEMC SR700 TRMS AC Current Probe with 5' Lead

Be the first to review this item

Product Specifications
UNSPSC Code
41111905
Brand Name
AEMC

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 12 hrs 22 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-3 of 3
1A, 10A, 100A, 1000A Current, 1mV/A Output 2116.33 B008S08952 yes $299.00 Buy Options
1mA to 1200A AC Current, 1mA/A Output, 5 Ohms Resistance 2116.3 B008S08722 yes $160.73 Buy Options
1mA to 1200A AC Current, 1mV/A Output, 100 Kilohms Resistance 2116.32 B008S0887G yes $299.00 Buy Options

Key Features

  • Measurement range of 1mA to 1200AAC
  • Large jaw opening accommodates conductors up to two 500kcmil
  • Improved ergonomic design and easy operation
  • High content nickel metal core
  • Conforms to EN 61010, 600V CAT III

Product Description

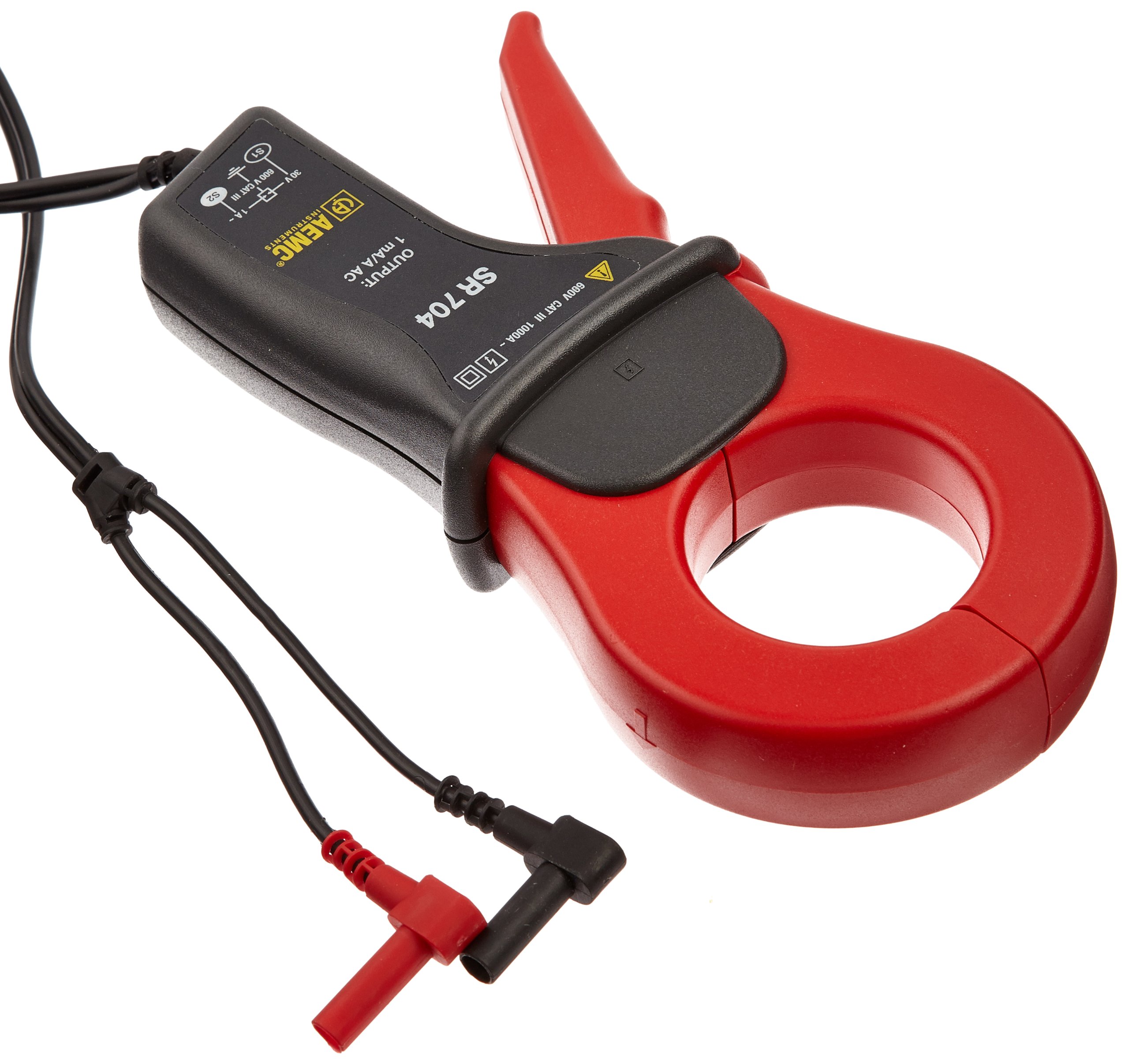

The SR704 has an integral 5 feet lead terminated by shrouded banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important. The Model SR704 is designed for use in industrial and utility environments. The unique ergonomic design allows it to easily clamp onto cables or small bus bars. It is built to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States. Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measure-ments of current for power and power quality measurements. The high quality magnetic cores and uniform windings provide sensitivity for very low level current measurements, as well as measurements up to 1200AAC. The Model SR704 works as a traditional current transformer (with a ratio of 1000:1) and provides current outputs in mA/A for use on DMMs, power and harmonic meters, data loggers, recorders or instruments with current ranges. The Model SR701 uses a custom Nickel Cove to improve accuracy and phase shift on the low end of the measurement range. Ergonomic design and easy operation. Available with mA output signals. Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters. Applications: power quality measuring, low industrial loads, measuring around cable bundles, power load monitoring, waveform analysis. Overload: 1200A for 40 min ON, 20 min OFF. Frequency Range: 30Hz to 5kHz; current derating above 1kHz using the formula: 1000A x 1F (in kHz). Working/Common Mode Voltage: 600Vrms CAT III. Operating Temperature: -14 to 122 degree F. Storage Temperature: -4 to 158 degree F. Operating Relative Humidity: 0 to 85 percent at 35 degree C. Measures: 4-23/64" length by 8-1/2" width by 1-49/64" height. Polycarbonate Material: Handles: Polycarbonate + ABS, Gray, UL94 V0. Jaws: Polycarbonate, Red, UL94 V0.
