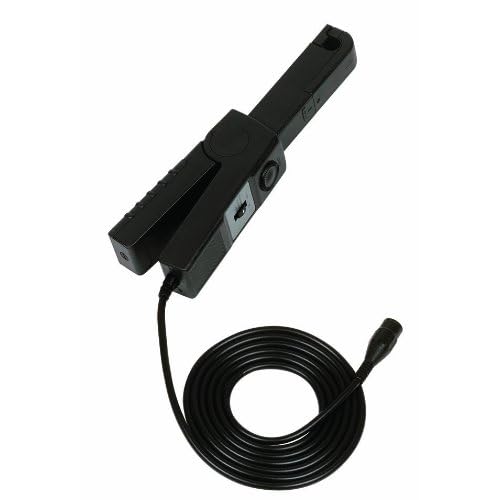

AEMC SL261 AC/DC Current Probe with BNC Connection and 6.5' Coaxial Cable, 100mA to 100A Range, 10A-100mV/A, 100A-10mV/A Output

Be the first to review this item

ASIN B008S07W6Y

Specifications for this item
Overall Height
1-53/128  inches
Overall Width
9-11/128  inches
Range
100mA to 100A
Part Number
1201.51
Item Depth
2-81/128 inches
Brand Name
AEMC
Maximum Measurement
100mA to 100A
Number of Items
1
Temperature Range
32/122  Degrees Fahrenheit
UPC
685338080032
EAN
0685338080032
Output Type
10A-100mV/A, 100A-10mV/A
UNSPSC Code
41111905

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 11 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Low AC and DC measurements
  • 50mA to 120AAC/150ADC
  • Unique design for probing in crowded wiring in industrial and automotive environments
  • Hall effect sensor technology
  • Use with DMMs, voltmeters and other voltage measuring instruments

Package Details

Shipping Weight: 1.35 pounds
Package Size: 10.4 x 6.8 x 2.8 inches

Product Description

The model SL261 is designed for AC/DC current measurement capabilities using hall effect technology. It measures from a few mA to over 100A. The "screw driver" shape, with its narrow elongated prod, was chosen to permit probing in crowded cable bundles, or measuring in tight areas such as on circuit boards, motor controllers and automotive circuitry. The electronics and batteries are self - contained in the handles. It is an excellent companion to DMMs, recorders and loggers, oscilloscopes and waveform displaying instruments. Low phase shift also insures reliable power and power quality measurements. The model SL261 is designed for current measuring and displaying on oscilloscopes. AC + DC output signals proportional to the total current are provided for true RMS measurements. Low AC and DC measurements. 50mA to 120AAC/150ADC. Unique design for probing in crowded wiring in industrial and automotive environments. Hall effect sensor technology. Use with DMMs, voltmeters and other voltage measuring instruments. Double insulation, CE mark. 10A and 100A Nominal range. 100mA to 100A Measurement range. Voltage output transformation ratio. 10A-100mV/A, 100A-10mV/A Output signal. Overload: red LED indicates input greater than the selected range. DC to 100kHz (-3dB with current derating) Frequency range. 600Vrms Working/Common mode voltage. 6.5' coaxial cable output termination. Operating temperature: 32 degree to 122 degree F. Storage temperature: -22 degree to 176 degree F. 0.46" Jaw opening. Dimensions: 9-11/128" width by 1-53/128" height by 2-81/128" depth. Weight 11.6oz with battery.
