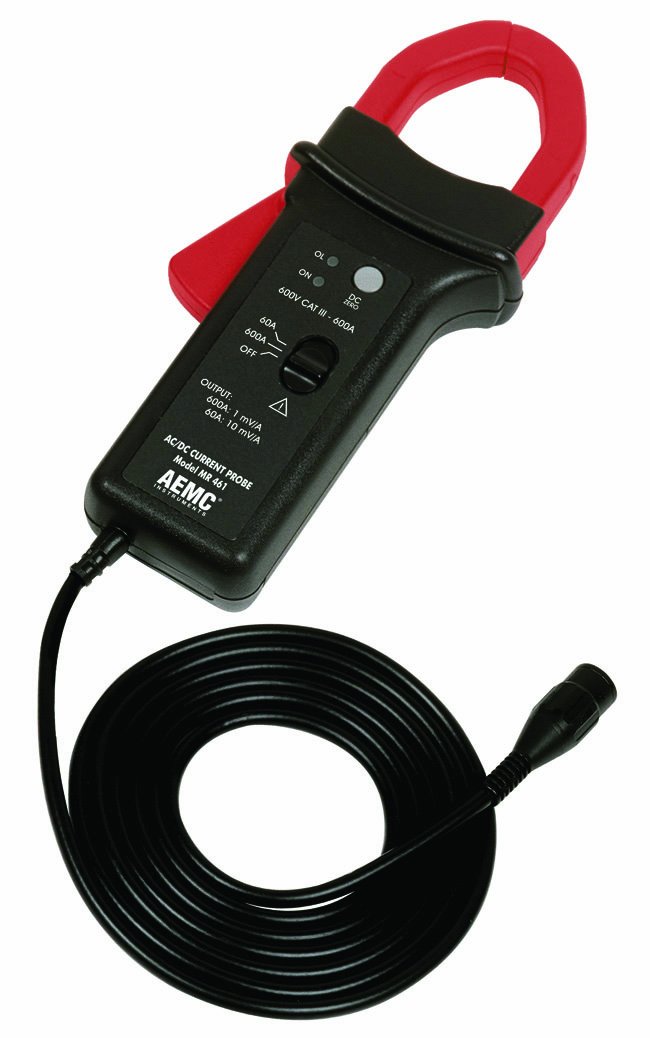

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

AEMC MR Series AC/DC Current Probe with 6' BNC Connection

Be the first to review this item

Product Specifications
UNSPSC Code
41111905
Brand Name
AEMC

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 3? Order in-stock items in the next 14 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Specifications Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-2 of 2
0.2 to 1500A Range, 150A-10mV/A, 1500A-1mV/A Output 1200.73 B008S07U7A yes $414.00 Buy Options
0.2 to 600A Range, 40A-10mV/A, 400A-1mV/A Output 1200.72 B008S07R0A yes $374.00 Buy Options

Key Features

  • Distinct jaw shapes to be used for hooking or prying around the conductor
  • Auto-zero push button
  • Conforms to EN 61010, 600V, cat. III safety standard
  • Low phase shift for power measurements; mV output signals
  • Designed for DMMs, recorders, oscilloscopes, power and harmonic meters

Product Description

The AEMC MR series AC/DC Probes are professional AC/DC current probes designed to extend current measuring capabilities of DMMs, oscilloscopes and other instruments. They are built to the latest safety and performance standards, including the CE Mark and UL approval. Two different hook-shaped jaws are offered, both permitting the user to "pry" or "hook" onto cables (will accept 2 x 500MCM) or even onto small bus bars. The MR series probes use hall effect technology and measure AC and DC current. The electronics and batteries are self-contained in the handles. The output of the AC/DC probes is 1mV/A and 10mV/A. The model MR561 measures to 1000AAC/1500AAC. The model MR461 has two ranges and an auto-zero push button (patent pending) for quick DC zeroing. There is no output filtering - true RMS with DC component measure- ments are possible. Phase shift is excellent, making the MR series of current probes well suited for power and power quality applications. The model MR561 is designed for oscilloscopes, waveform displaying instruments and other frequency sensitive displaying instruments with BNC inputs. Measurement range of 400AAC/600ADC. Measurement range of 1000AAC/1500ADC. Double Insulation. CE mark. Applications: DC motors, batteries, automobile engine testing, power measuring quality analysis, power load monitoring. 40AAC/60ADC and 400AAC/600ADC Nominal range. 0.2 to 600A Measurement range. 40A-10mV/A, 400A-1mV/A Output signal. 1000AAC and 2000ADC continuous up to 1kHz Overload DC to 10kHz at -3dB Frequency range. 600Vrms Working/Common mode voltage. 9V Alkaline battery (approx. 50 hours life). 6' BNC output termination. Operating temperature: 14 degree to 131 degree F. Storage temperature: -40 degree to 176 degree F. 1.2" Jaw opening. Dimensions: 8-51/64" width by 3-11/16" height by 1-93/128" depth. Weight 15oz.
