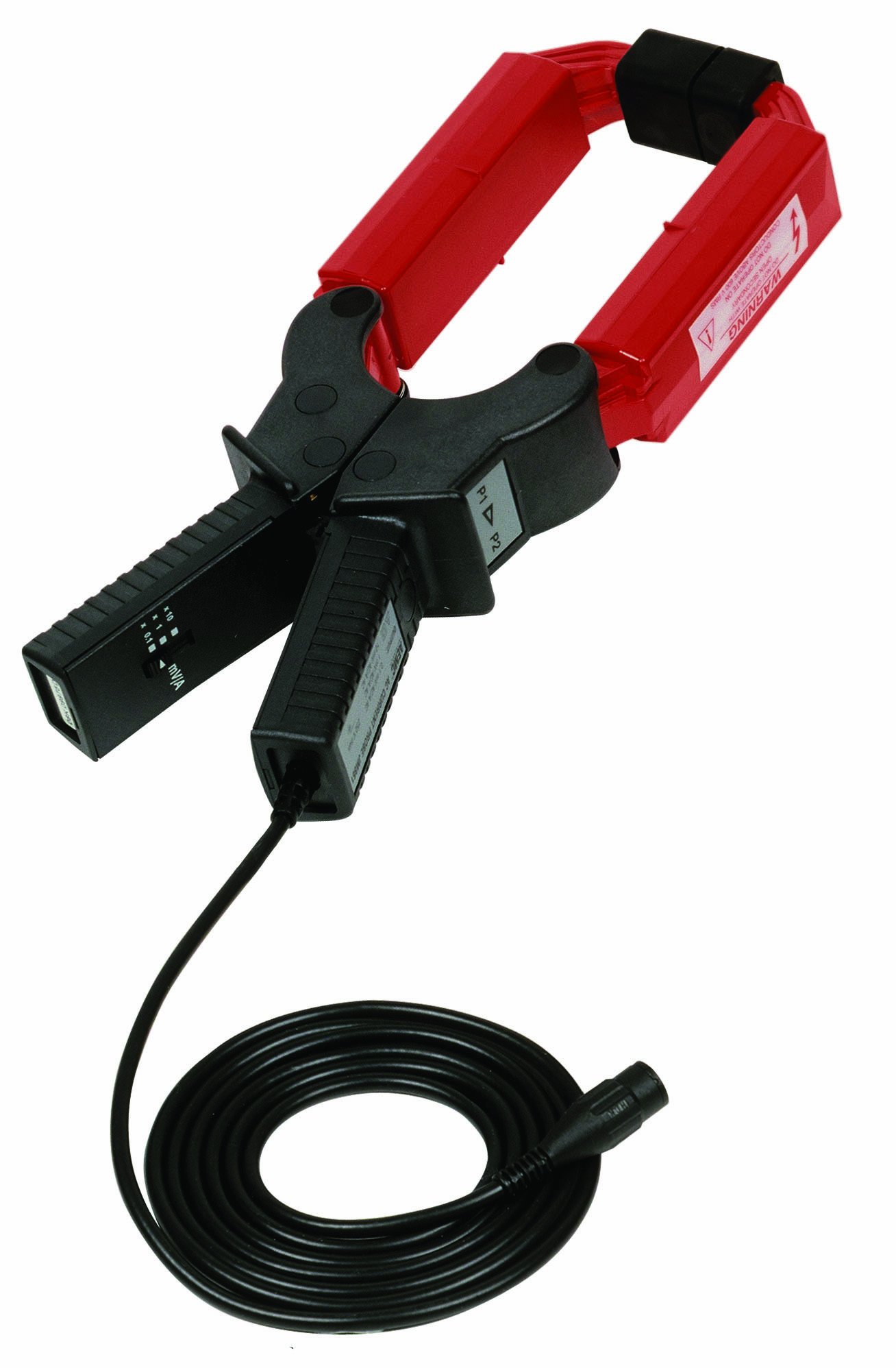

AEMC JM861 AC Current Probe with BNC Connection and 6.5' Coaxial Cable, 1A to 9000A Range, 0.1mV/A Output

Be the first to review this item

ASIN B008S0732C

Specifications for this item
Number of Items
1
Range
90A, 900A, 9000A
Part Number
2110.9
UPC
685338090123
Item Weight
2 pounds
Size Name
1A to 9000A Range, 0.1mV/A Output
Brand Name
AEMC
EAN
0685338090123
Maximum Measurement
90A, 900A, 9000A
Output Type
Peak 30A-10mVAC/AAC, 300A-1mVAC/AAC, 3000A-0.1mVAC/AAC
UNSPSC Code
41111905

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 1 day 15 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Nominal range: 30A, 300A, 3000A
  • Output: 10mA/AAC, 1mV/AAC, 0.1mA/AAC
  • Oscilloscope current probe for applications in industrial and power environment
  • Analyze, measure and accurately display distorted current waveforms and harmonics
  • Large jaw window for use on cables and bus bars

Package Details

Shipping Weight: 4.1 pounds
Package Size: 15 x 11.2 x 3.8 inches

Product Description

The model JM861 is designed for oscilloscopes, waveform displaying instruments and other instruments able to benefit from its frequency response. The model JM861 encompasses a special circuit and three ranges to maximize frequency response performance. Accurately measures AC current waveforms and has proportional mV output for direct readings on oscilloscopes. Three-position slide switch on the handle selects ranges. Large jaw window enables use on cables and bus bars. Nominal range: 30A, 300A, 3000A. Output: 10mA/AAC, 1mV/AAC, 0.1mA/AAC. Oscilloscope current probe for applications in industrial and power environments. Analyze, measure and accurately display distorted current waveforms and harmonics. Current range from 1 to 2400A RMS, large jaw window for use on cables and bus bars. Direct BNC connection to scope. Applications: electrical utility, HVAC, industrial maintenance, laboratory, plant maintenance, power quality. Double Insulation amd CE mark.
