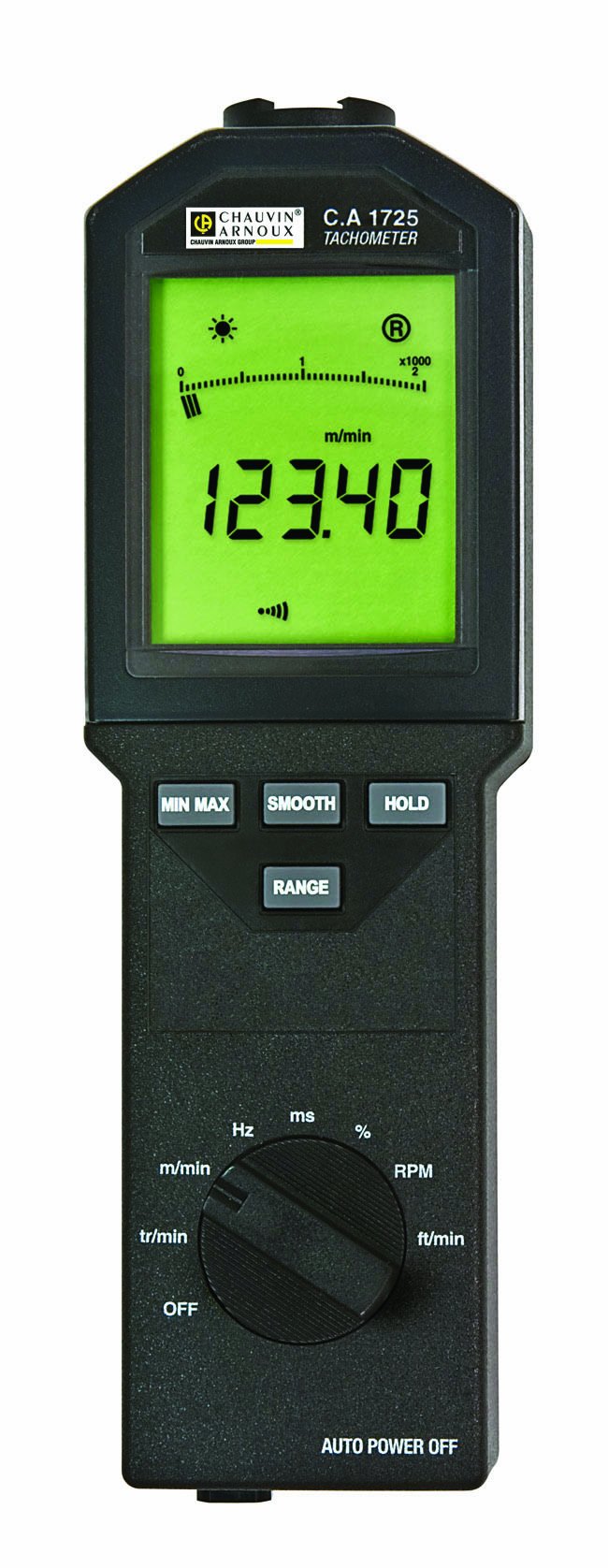

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Other Documentation

AEMC CA1720 Series Infrared Tachometer, 6 to 100,000 rpm Range

Be the first to review this item

Product Specifications
Brand Name
AEMC

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 1 day 10 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Specifications Pkg Qty Mfr Part # ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-2 of 2
- 1 1748.1 B008S0HD86 1 $460.44 Buy Options
With USB Interface 1 1748.3 B008S0HDUE 2 $528.94 Buy Options

Key Features

  • Contact/noncontact portable tachometer for measuring the speed of motors, conveyor belts, and other moving and rotational systems
  • Measures rotational speed, linear speed, frequency, period, duty cycle, and count for versatility
  • Takes noncontact measurements using an infrared beam that works at a distance of 1 to 50cm for operator safety
  • Digital display presents test results and the unit of measurement, and incorporates an analog bar graph for readability
  • Rated to IP 51 level of protection against dust and dripping water

Product Description

The AEMC CA1720 Series portable contact/noncontact tachometer measures rotational speed, linear speed, frequency, period, duty cycle, and count, has an infrared beam for noncontact measurements, and a digital display. This contact/noncontact portable tachometer is used for measuring the speed of motors, conveyor belts, and other moving and rotational systems. It can measure rotational speed, linear speed, frequency, period, duty cycle, and count for versatility. Its optical sensor is an infrared beam that works at a distance from 1 to 50cm for operator safety. It has a digital display to present test results and units of measurement, and the display incorporates an analog bar graph for readability. This tachometer can store up to 4,000 measurements and has functions and automatic routines for data acquisition and storage. It is rated to IP 51 level of protection against dust and dripping water, and it comes with an FRB F connector, a 9V battery, 15 reflective strips, a hard case, and instructions. The AEMC model CA1727 tachometer also comes with a USB cable and software for data analysis. This tachometer is suitable for measuring rotational speed and other measurements in mechanical or industrial engineering environments.

Specifications
Rotational speed range6 to 100,000rpm
Rotational speed accuracy1 E -4 +/-6 counts
Linear speed range0.1 to 10,000m/min or ft/min
Linear speed accuracy1 E -4 +/-1 increment
Frequency range0.1 to 10,000Hz
Frequency accuracy4 E -5 +/-4 counts
Working temperature range32 to 131 F (0 to 55 C); 90% relative humidity
Storage temperature range-4 to +158 F (-20 to +70 C); 95% relative humidity
WeatherproofingIP 51
Battery9V
Dimensions216 x 72 x 47mm (H x W x D)
Weight8.8 oz. (250g)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Tachometers measure the rate of rotation or surface speed of motors, conveyor belts, and other moving systems. Contact tachometers take measurements through direct contact with the moving surface, and can measure both rpm and surface speed. Typically, contact tachometers come with a range of attachments that can be used to measure speed on different kinds of rotary systems, which may include tips used for measuring shafts with a central hole or flat end surfaces, and rotary wheels for measuring conveyor belts. Noncontact tachometers take measurements from a distance using a beam of infrared light, and provide highly accurate measurements. Contact tachometers are an excellent choice for dirty and dusty environments; noncontact tachometers only calculate rpm but are considered safer because they do not require the operator to be in close contact with the moving surface. Contact/noncontact tachometers, also known as dual, or combination tachometers, can be used to take contact and noncontact measurements. Some tachometers can also take other types of measurements, such as count or frequency, while others can output data to a computer for analysis. Tachometers are used in applications such as automobile maintenance, mechanical engineering, and maintenance of industrial equipment.

AEMC Instruments manufactures electrical testing and measurement instruments, including clamp meters, power quality analyzers, ground resistance testers, and data loggers. The company, founded in 1893, is headquartered in Foxborough, MA.

What's in the Box?
  • AEMC CA1720 portable tachometer
  • FRB F connector
  • 9V battery
  • (15) reflective strips
  • Carrying case
  • USB cable (model CA1727 only)
  • Software on CD (model CA1727 only)
  • Instructions
