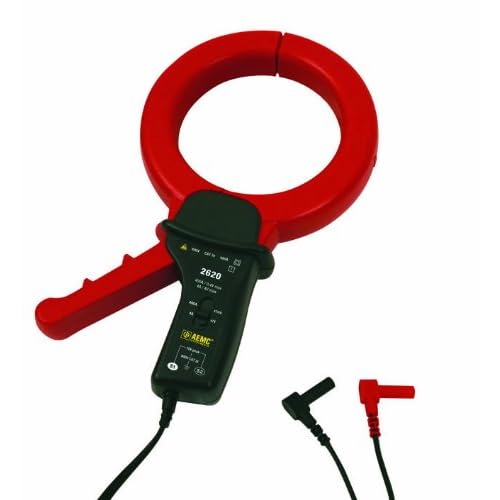

AEMC 2620 AC Leakage Current Probe, 4A and 400A Ranges

Be the first to review this item

ASIN B008S06XZU

Specifications for this item
Number of Items
1
Overall Height
11-7/32  inches
Overall Width
6-7/8  inches
Part Number
2125.52
UPC
685338055016
Item Depth
1-49/64 inches
Brand Name
AEMC
EAN
0685338055016
List price:
$549.00
Price:
$485.08
You save:
$63.92 (12%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 28? Order in-stock items in the next 1 day 13 hrs 36 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Very high sensitivity
  • Differential or leakage current from 500µA
  • Current up to 400A
  • Two switch-selectable measurement ranges: 4Aac/400Aac
  • Large inside jaw diameter (>4") allows use on large or multiple conductors

Package Details

Shipping Weight: 3.2 pounds
Package Size: 12.3 x 9.1 x 3.2 inches

Product Description

The Model 2620 measures leakage current shunted to ground caused by insulation faults. It enables the operator to locate failures when they occur, or anticipate them before they occur, without shutting down equipment or spending hours troubleshooting. It is designed specifically for locating low current faults on high current loads. The detector is a sensitive AC current transformer capable of measuring differential or leakage current as low as 500µA, and may be used to measure current up to 400A continuous. The Model 2620 provides two output ranges: 1mV/mAa c or 1mV/Aac. The output leads are terminated with standard 4mm banana plugs capable of interfacing with any standard multimeter. The use of a digital multimeter with analog bargraph is recommended; Digital to provide accurate readings, and an analog bargraph to track trends. The Model 2620 measures leakage currents on single or multi-phase systems. Currents measured may be in or out of phase, balanced or unbalanced. Applications: Preventive maintenance, Equipment troubleshooting on electrical distribution systems, High accuracy low-current measurements, Measure fault currents on three-phase, three-wire systems. current range: 500µA to 4A, 500mA to 400A. Output signal: 1mV/mA (4V max), 1mV/A (400mV max). Accuracy: 500µA to 10mA, 10mA to 100mA, 100mA to 4A., 0.5 percent of Reading +/- 0.5mV, 0.5 percent of Reading +/- 0.5mV. 500mA to 10A, 10A to 100A, 100A to 400A. 0.5 percent of Reading +/- 0.5mV, 0.35 percent of Reading +/- 0.5mV, 0.35 percent of Reading +/- 1mV. Phase Shift: 10mA to 100mA, <15 degree. 100mA to 4A <10 degree. 10A to 100A <1 degree. 100A to 400A <1 degree. Frequency range: 48 to 1000Hz. Output termination 5 ft (1.5m) Lead with 4mm safety banana plugs. Jaw Opening: 4.4" (112mm). Maximum conductor: Size 4.4" (112mm). Operating temperature: -14 degree to 131 degree F (-10 degree to 55 degree C); 0 to 85 percent RH (non-condensing). Measures 6-7/8" width by 11-7/32" height by 1-49/64" depth.
