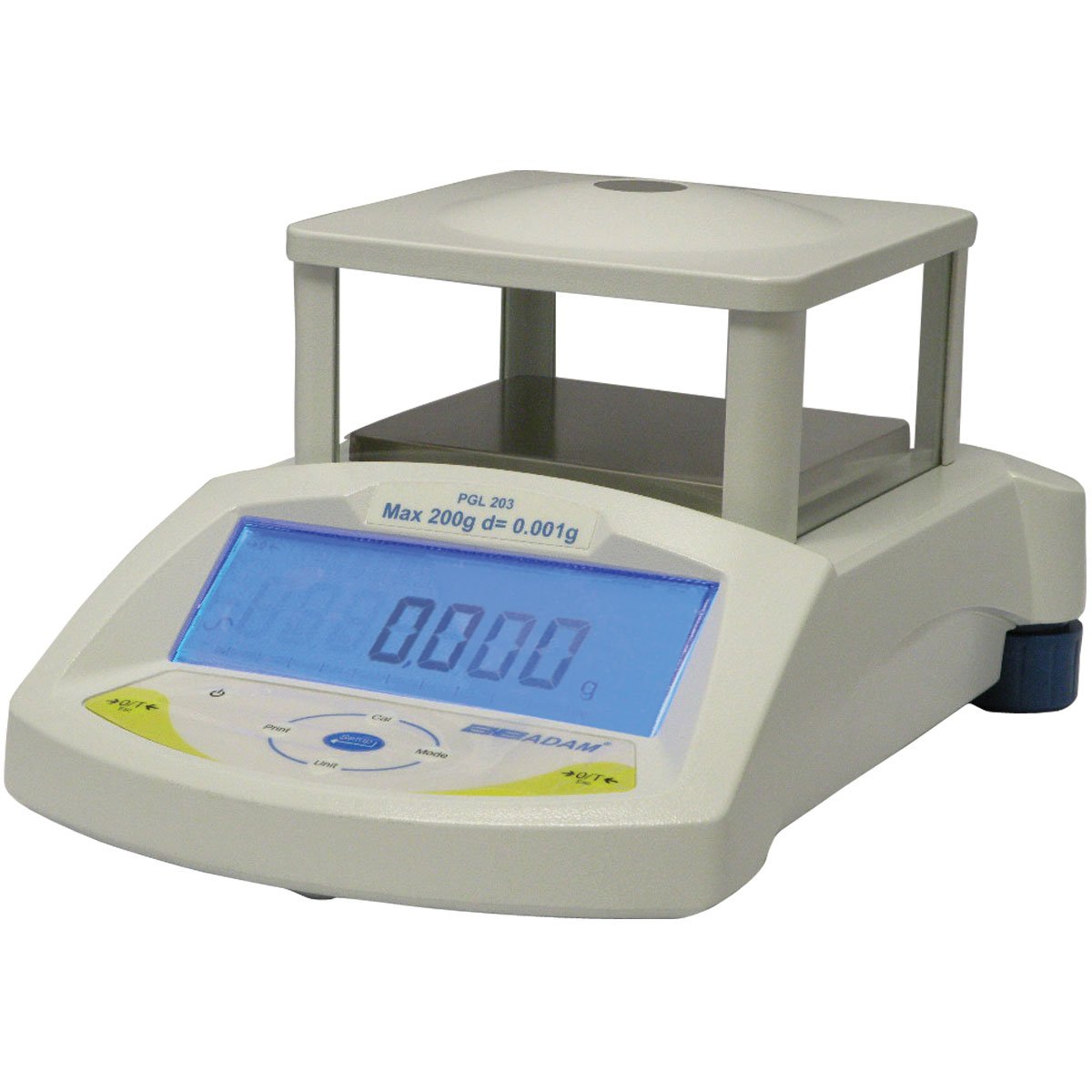

Adam Equipment PGL Precision Top Loading Balance, 200g Capacity and 0.001g Readability

Be the first to review this item


Specifications for this item
Overall Height
4.1  inches
Overall Width
14.1  inches
Cap Type
Readout Accuracy
0.001  grams
Size Name
200g Capacity and 0.001g Readability
Brand Name
Adam Equipment
200  grams
backlit LCD
Overall Length
9.9  inches

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Conventional balance with 200 g capacity and 0.001 g readability (also known as accuracy)
  • Two-second setting time for increased productivity
  • Stainless steel 125 x 145 mm (W x D) weighing pan is corrosion resistant
  • Powered by the built-in rechargeable battery or included AC adapter, for increased mobility
  • Automatic or manual printing option for consistent and dependable data documentation

Package Details

Shipping Weight: 11.6 pounds
Package Size: 24 x 12 x 7 inches

Product Description

The Adam Equipment PGL 203 conventional, or precision, top loading balance has a capacity of 200 g and an accuracy of 0.001 g (also called readability), and offers a two-second settling time that allows for increased productivity. The balance can be operated using AC power or the built-in rechargeable battery, offering full mobility in the field and when a power supply is hard to find, for up to 20 hours. To conserve battery power, the auto off function can be enabled to power off the balance automatically after periods of inactivity. This balance has an automatic external calibration system that ensures repeatable measurements, and overload protection that prevents damage to the weighing cell and balance if too-heavy samples are mistakenly used. The integrated RS-232 port connects to a printer or PC for manual or automatic recording of weighing and calibration data.

The balance has a backlit digital display for readability, weighs in nine units, and displays text in four languages: English, French, German, and Spanish. The application modes include parts counting, percent weighing, check weighing, and density determination. Security passcodes can be employed to safeguard against setting and mode alteration. The removable draft shield, constructed from a metal frame and glass panels, prevents dust and airflow from affecting the measurements. The solid die-cast metal housing provides extra stability and is built to withstand tough field and lab environments. The stainless steel weighing pan resists corrosion and is easy to clean. Adjustable nonslip front and rear feet provide level measurements and stability, so the balance will not tip under eccentric loads. A built-in security slot for locks and cables protects the balance from unauthorized use or theft, and the included below-balance weighing hook suspends bulky items beneath the balance for weighing. When used according to manufacturer’s recommendations, this product is covered by a three-year warranty.


Maximum capacity 200 g
Readability 0.001 g
Repeatability (sd) 0.002 g
Linearity 0.004 g
Stabilization time 2 s
Weight of balance 4 kg
Units of measurement gram (g), milligram (mg), carat (ct), grain (GN), Newton (N), ounce (oz), Troy ounce (ozt), pennyweight (dwt), custom unit
Calibrations mass 100 or 200 g
Power requirement 12 VDC, 500 mA or integrated rechargeable battery
Usable height of draft shield 3.2 inches
Weighing pan dimensions, W x D 125 x 145 mm
Balance dimensions without draft shield, H x W x D 104 x 251 x 358 mm
Balance dimensions with draft shield, H x W x D 185 x 251 x 358 mm

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Balances are measuring instruments used to determine the mass of an object, while scales are used to measure the weight of an object. The measurement results from balances are generally considered to be more precise compared to results from scales. Mechanical balances are the simplest type of balance, and use a lever and slide to indicate the measurement. Conventional balances are commonly used in offices, the jewelry industry, and in kitchens, and display results digitally, but are less precise than analytical balances. Analytical balances measure to a high degree of precision and accuracy (0.0001 g or better), and display results digitally. These balances have a cover with doors to prevent dust and airflow from affecting the measurement. Moisture balances analyze moisture content in a material sample, using infrared or halogen heat sources to dry the sample and then calculate the moisture content from the before- and after-drying weight, and display results digitally, on the balance, or transfer the information for display on a computer.

Adam Equipment manufactures balances, scales, and related accessories for laboratory, educational, industrial, retail, and medical applications. The company, which was founded in the United Kingdom in 1972 and has an office in Danbury, CT, meets International Organization for Standardization (ISO) 9001:2008 standards.

What’s in the Box?

  • Adam Equipment PGL 203 conventional balance
  • Draft shield
  • AC adapter, approximately 5 ft. cord length, with U.S. two-prong plug
  • Instructions
