Action Pump 900 MLP 900 GPH Manual Lift Pump

Be the first to review this item

ASIN B005E2182S

Specifications for this item
Number of Items
1
Material Type
Delrin, NBR,
Operation Mode
Manual
Part Number
900 MLP
Temperature Range
40-140  Degrees Fahrenheit
UPC
791885009003
Brand Name
Action Pump
EAN
0791885009003
UNSPSC Code
40151529
Style Name
Manual Lift

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 15 hrs 35 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Diaphragm pump for transfer of liquids without suspended solids
  • Hand-operated lever action
  • Delrin plastic constriction for high stiffness and low friction, with a buna-n diaphragm for resistance to oils and solvents
  • Flow rate of 900 gph
  • 1-1/2" smooth hose inlet and outlet connections

Package Details

Shipping Weight: 2.2 pounds
Package Size: 15.5 x 6 x 5.7 inches

Product Description

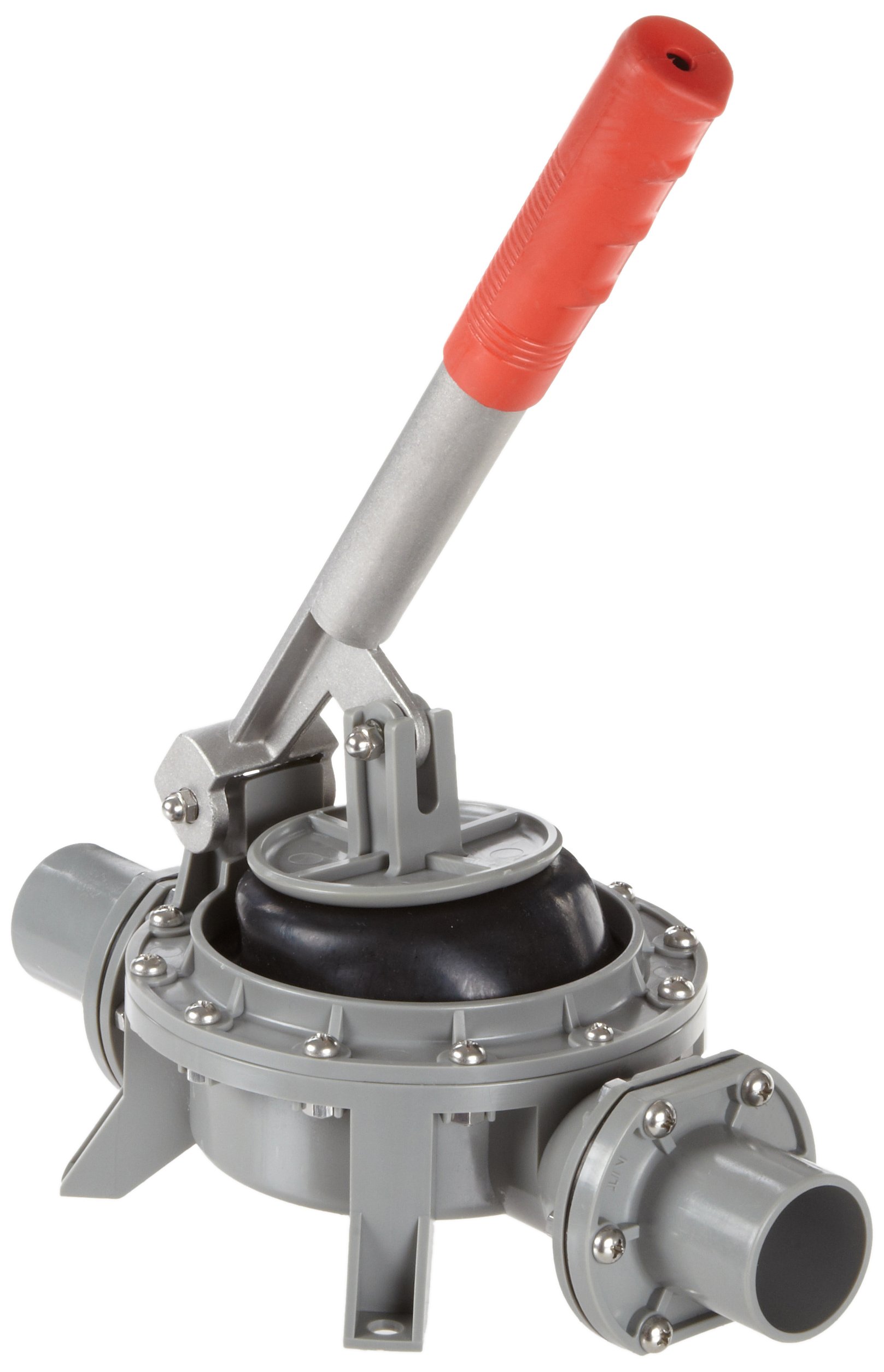

This Action Pump 900 MLP manual lift pump is a hand-operated diaphragm pump suitable for transfer of liquids without suspended solids. It is constructed of Delrin (POM, polyoxymethylene) plastic for high stiffness and low friction, with a buna-n diaphragm for resistance to oils and solvents. This pump is capable of transferring up to 900 gallons of fluid per hour (gph) with temperatures up to 140 degrees F and a maximum lift of 12'. It has smooth 1-1/2" inlet and outlet hose connections, and ships fully assembled. This diaphragm pump is suitable for liquid transfer operations in a wide range of commercial and industrial applications.

Specifications
PumpDiaphragm, lever action
MaterialsDelrin (POM) and buna-n
Flow rateUp to 900 gph
Suction port1-1/2"
Discharge port1-1/2"
Maximum temperature140 degrees F
For use withClean liquids
Weight2 lb.
Dimensions*5-1/2 x 4 x 13-1/2 inches (L x W x H)
Specifications metFDA approved materials

*L is length, the horizontal distance from front to back; W is width, the horizontal distance from left to right; H is height, the vertical distance from bottom to top

.

Pumps use mechanical action to move liquids, gases, or slurries (solids suspended in a liquid or gas). The mechanical action is categorized as either positive displacement (PD) or kinetic. PD pumps capture and release discrete amounts of flow into a chamber and then force it out. Some examples of PD pumps are fuel and oil pumps in cars, pumps in hydraulic systems, and bicycle pumps. Kinetic pumps move liquids, gases, or slurries by transferring energy from the pump's movement to the flow. They use an impeller to draw the flow in, add energy to the flow, and move it through a volute (a spiral funnel through which the flow moves), and into the system. Some examples of kinetic pumps include centrifugal (the most common pump in industrial applications), in-line pumps, sump pumps, and suction pumps. Energy sources for all types of pumps include wind power, manual operation, electricity, and gasoline or diesel fuel.

Action Pump manufactures drum and pail pumps and grease, oil, and lubrication products. The company, founded in 1981, is headquartered in Cary, IL.
