Action Pump 3004 Ryton Rotary Drum Pump, 8 GPM

Be the first to review this item

ASIN B005E22660

Specifications for this item
Number of Items
1
Pressure Flow Rate
6  Gallons per Minute
Material Type
PTFE, Fluoroelastomer, Ryton, Polypropylene & 304SS
Operation Mode
Manual
Part Number
3004
Temperature Range
40-140  Degrees Fahrenheit
UPC
791885030045
Brand Name
Action Pump
Size Name
2" NPT Male
EAN
0791885030045
Style Name
Rotary
List price:
$159.90
Price:
$108.61
You save:
$51.29 (32%)
Quantity:

In Stock (7)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 8 hrs 33 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Rotary drum pump for dispensing chemicals
  • Hand-operated rotary lever action
  • Ryton (PPS) body for high temperature rigidity and resistance to chemicals and flame, 304 stainless steel components and PTFE seal for resistance to chemicals and corrosion
  • Flow rate of 6 gpm at 135 rpm
  • 1" NPT suction port and 3/4" UNF discharge port

Package Details

Shipping Weight: 6 pounds
Package Size: 15.5 x 6.3 x 5.6 inches

Product Description

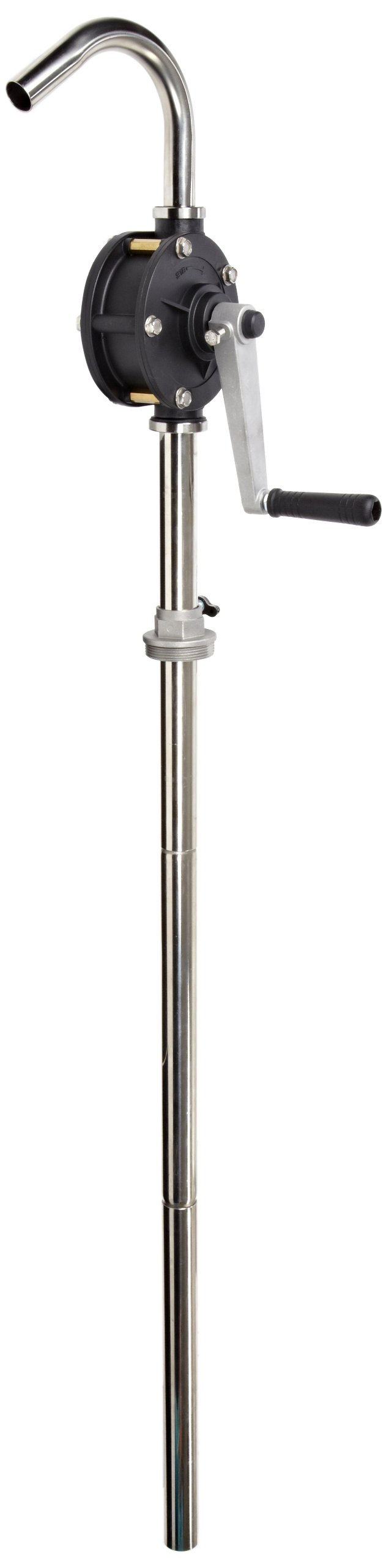

This Action Pump 3004 hand-operated rotary lever pump is constructed with a Ryton (PPS, polyphenylene sulfide) body for high-temperature rigidity and resistance to chemicals and flame and PTFE (polytetrafluoroethylene) seals for resistance to chemicals, and is suitable for dispensing a variety of chemicals. This pump is capable of transferring material at 6 gallons per minute (gpm) at 135 revolutions per minute (rpm) with temperatures up to 140 degrees F. It has a 1" National Pipe Taper (NPT) threaded port and a 3/4" Unified Fine (UNF) outlet port, and comes with a 40" 304 stainless steel suction tube assembly, a 1-1/2" to 2" bung adapter, and a 304 stainless steel spout. This rotary lever drum pump is suitable for a variety of industrial and commercial applications.

Specifications
PumpRotary drum pump
MaterialsRyton body, 304 stainless steel components
Flow rate6 gpm at 135 rpm
Suction port1" NPT
Discharge port3/4" UNF
Maximum temperature140 degrees F
Maximum liquid viscosity5000 SSU
For use with15, 30, and 55 gallon drums
Weight6 lb.
DimensionsOverall length: 52"; Suction tube: 40"

Pumps use mechanical action to move liquids, gases, or slurries (solids suspended in a liquid or gas). The mechanical action is categorized as either positive displacement (PD) or kinetic. PD pumps capture and release discrete amounts of flow into a chamber and then force it out. Some examples of PD pumps are fuel and oil pumps in cars, pumps in hydraulic systems, and bicycle pumps. Kinetic pumps move liquids, gases, or slurries by transferring energy from the pump's movement to the flow. They use an impeller to draw the flow in, add energy to the flow, and move it through a volute (a spiral funnel through which the flow moves), and into the system. Some examples of kinetic pumps include centrifugal (the most common pump in industrial applications), in-line pumps, sump pumps, and suction pumps. Energy sources for all types of pumps include wind power, manual operation, electricity, and gasoline or diesel fuel.

Action Pump manufactures drum and pail pumps and grease, oil, and lubrication products. The company, founded in 1981, is headquartered in Cary, IL.

What's in the Box?
  • 3004 rotary drum pump
  • Suction tube assembly
  • 1-1/2" to 2" bung adapter
  • Curved discharge spout
