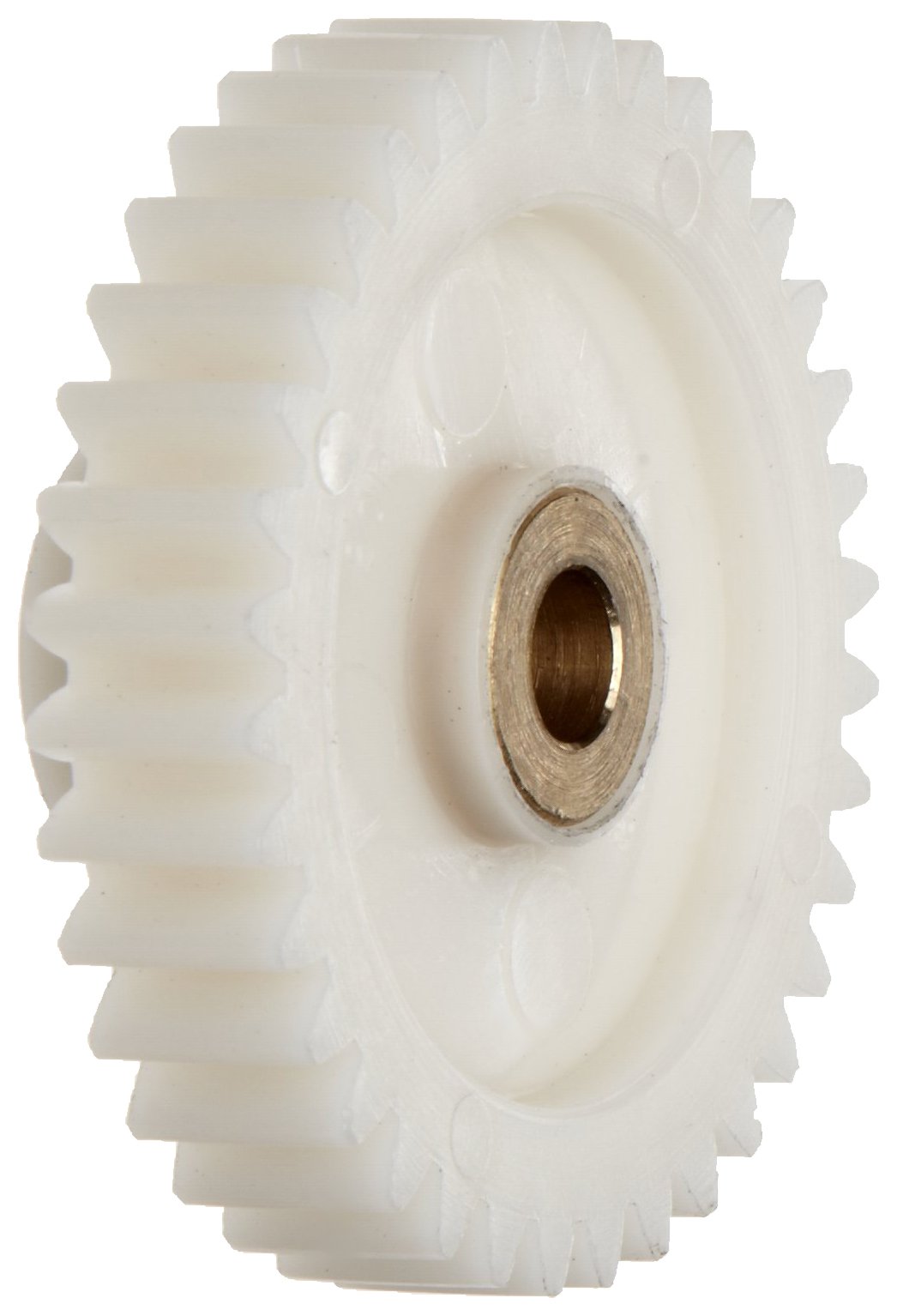

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

Spur Gear, 20 Degree Pressure Angle, Polyoxymethylene, Inch, 20 Pitch, 3.500" Pitch Diameter, 0.312" Bore, 3.600" OD, 70 Teeth

(1 customer review)

ASIN B000FMUNDC

Product Specifications
Part Number
20S-070B312
System of Measurement
Inch
Bore Diameter
0.312  inches
Hub Diameter
3/4  inches
Number of Teeth
70
Diameter
3.600  inches
Number of Items
1
Pitch Diameter
3.500 inches
Style Name
20 Pitch
Specification for this product family (See all  products)
Pitch
20
Material Type
Polyoxymethylene_(POM)
Brand Name
Small Parts
Price:
$23.50
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 21? Order in-stock items in the next 1 day 3 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
  • Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
  • Diametral pitch of 20 for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision
  • Polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion

Package Details

Shipping Weight: 0.12 pounds
Package Size: 5.5 x 4 x 1 inches

Product Description

This polyoxymethylene spur gear with 20-degree pressure angle (PA) and a diametral pitch (DP) of 20 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 20-degree pressure angle for lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles, and a 20-diametral pitch for applications requiring a balance between transferring torque and controlling changes in speed and direction of rotation with precision. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion. This SmallParts spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including bevel and miter gears (for rotating shafts perpendicular to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.
