Smallparts Spur Gear, 20 Degree Pressure Angle, Acetal, Inch, 32 Pitch
Be the first to review this item
ASIN B000FN1R8Q
Product Specifications
- Bore Diameter
- 1/4 inches
- Bore Diameter Tolerance
- +/- 0.001 inches
- Diameter
- 1.063 inches
- Hub Diameter
- 5/8 inches
- Hub Projection
- 5/16 inches
- Number of Items
- 1
- Number of Teeth
- 32
- Part Number
- 32-032B250
- Pitch Diameter
- 1.000 inches
- System of Measurement
- Inch
Specification for this product family (See all products)
- Brand Name
- Small Parts
- Material Type
- Acetal
- Face Width
- 3/16 inches
- Style Name
- 32
In Stock (5)
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 23? Order in-stock items in the next 9 hours 4 minutes and choose One-Day Shipping at checkout.

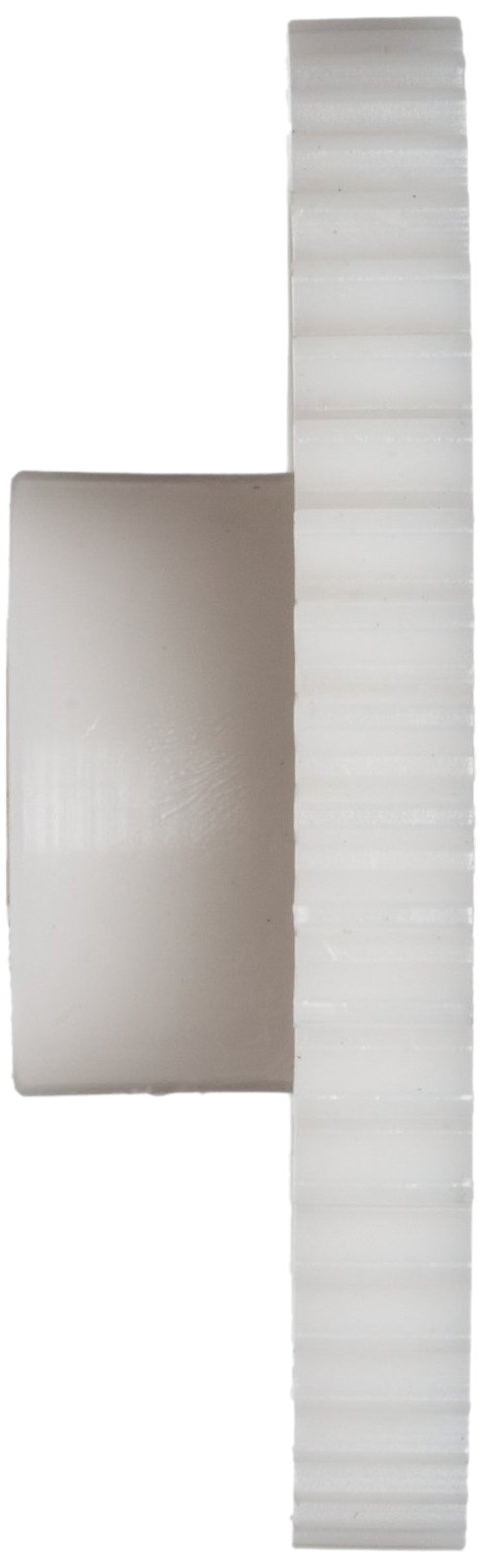

Spur Gear, 20 Degree Pressure Angle, Acetal, Inch, 32 Pitch, 1.000" Pitch Diameter, 1/4" Bore, 1.063" OD, 3/16" Face Width, 32 Teeth
Package Details
Shipping Weight: 0.06 pounds
Product Description
Delrin Spur Gears have the advantage of being quiet, non-corrosive, lightweight and shock resistant. Useful for both continuous movement and in static control systems where only a quarter or half turn is made. They may be used in train with brass, steel or cast iron gears. Furnished with bored hub - but not drilled for pin or tapped for set screw. Color: Natural.
