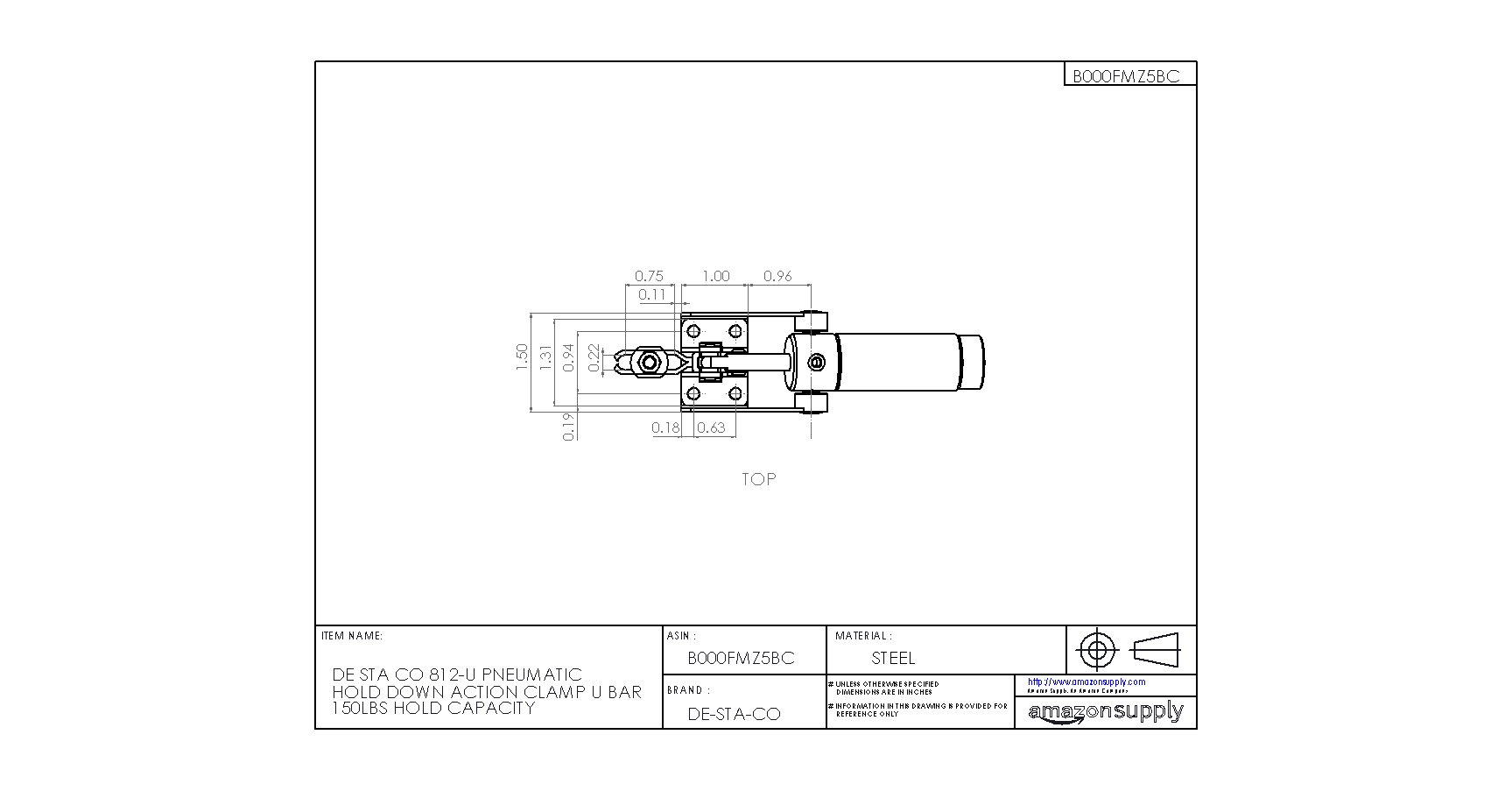

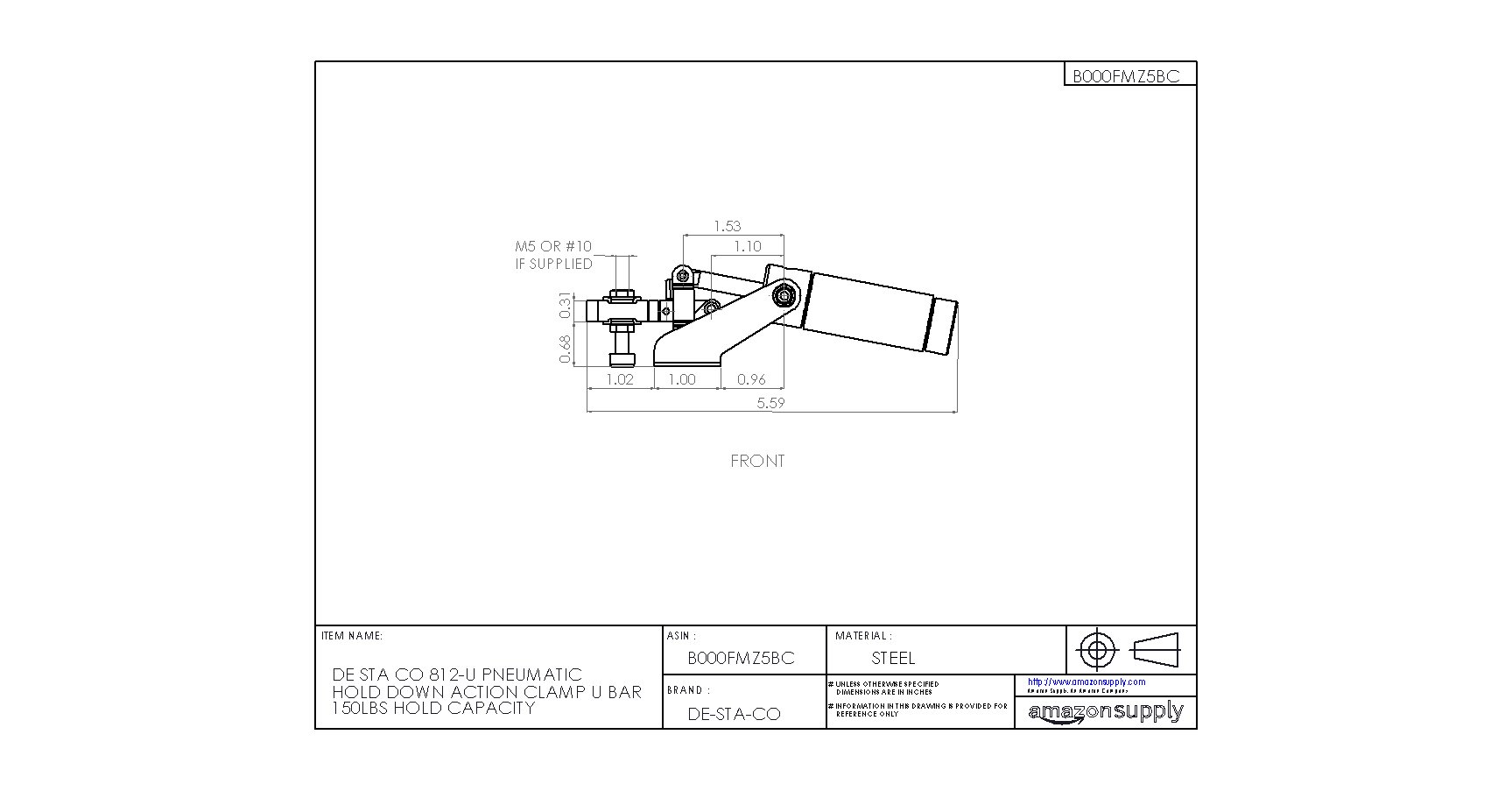

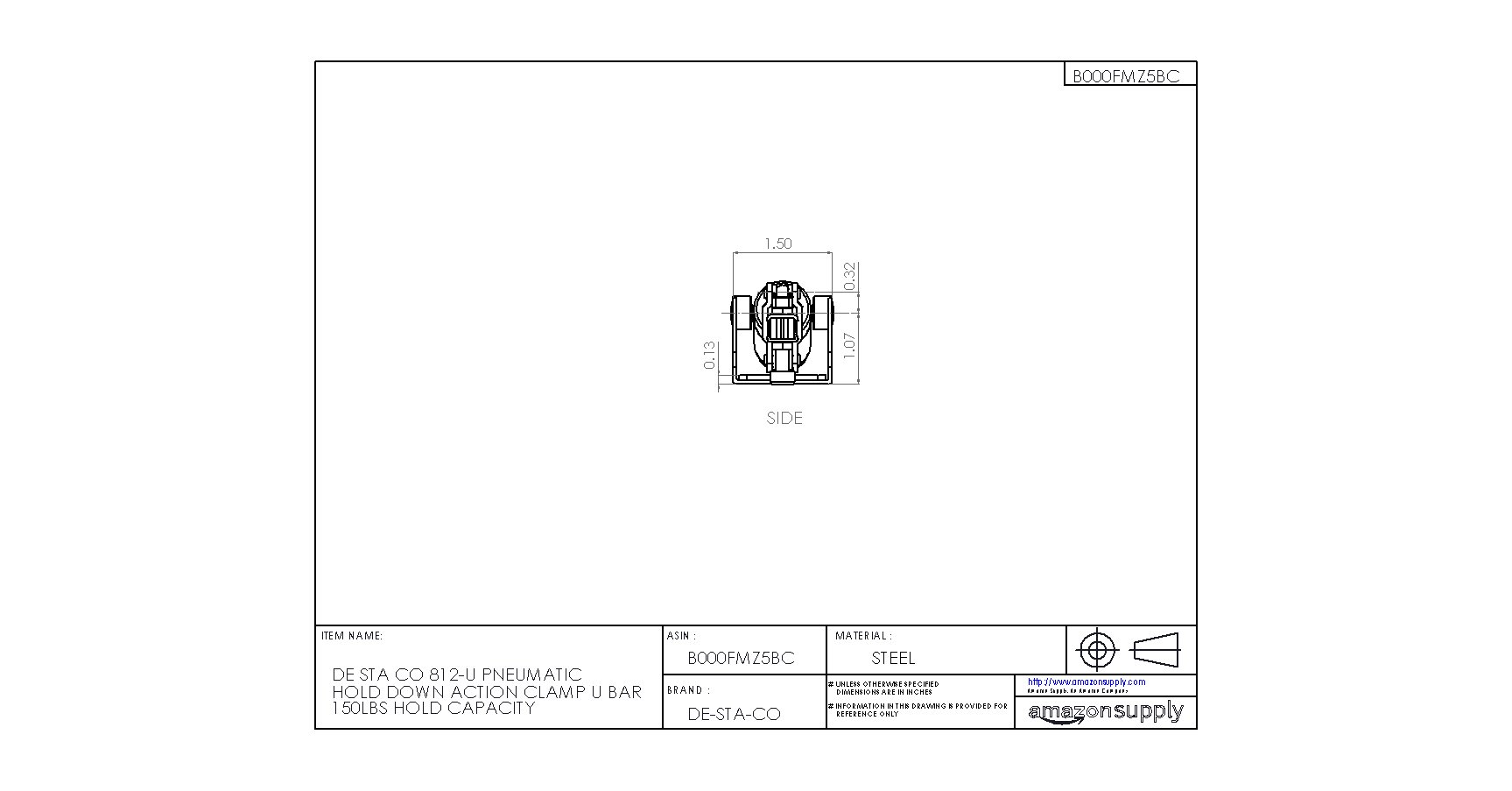

DE-STA-CO 812-U Pneumatic Hold-Down Clamp with U-Bar, 150 lb Hold Capacity

Be the first to review this item

ASIN B000FMZ5BC

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
812-U
Brand Name
De-Sta-Co
UNSPSC Code
24101647
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Aug 22? Order in-stock items in the next 22 hrs 57 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Low-profile, compact clamp fits in tight workspaces
  • Built-in air flow control provides smoother operation during repetitive clamping operations than manual clamps
  • Holding screw moves on the U-shaped hold-down bar for larger clearance angle
  • Holding capacity is 150 lb. and maximum clamp bar opening is 99 degrees
  • Port size is M5, operating temperature is -10 degrees F to 165 degrees F, and maximum inlet pressure is 53 psi

Package Details

Shipping Weight: 0.41 pounds
Package Size: 7 x 5 x 2.1 inches

Product Description

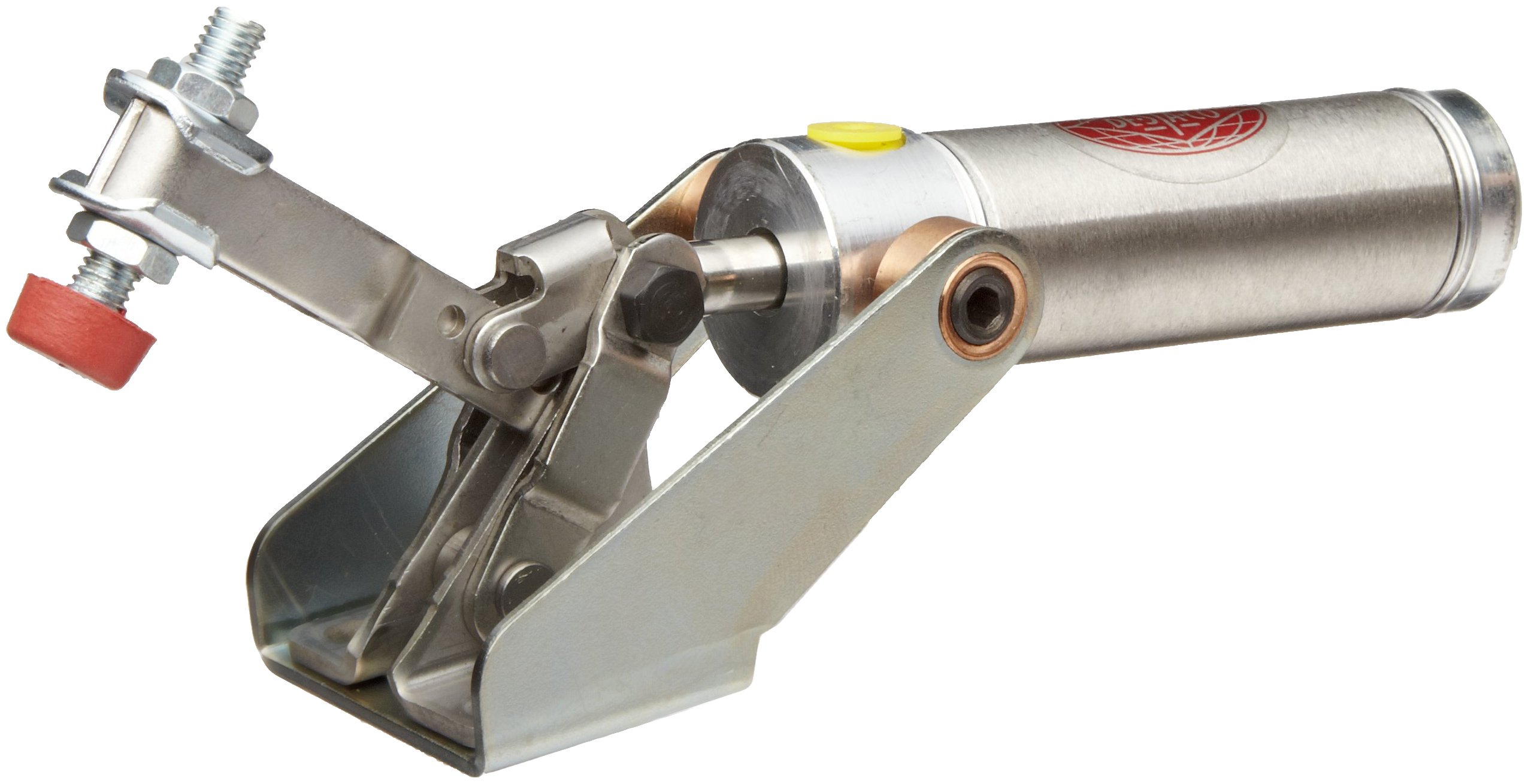

The DE-STA-CO 812-U Pneumatic Hold-Down Clamp with U-bar has a low-profile, compact design to fit in tight spaces. It has built-in air flow control that provides smoother operation for repeated operations compared to manual clamps. It is made of steel and has a U-shaped clamping bar with a holding screw that can be moved away from the base for a larger clearance angle. The magnetic ring piston accommodates round or T-slot sensors for positioning. The maximum holding capacity is 150 lb. and maximum clamp bar opening is 99 degrees. The port size is M5. The operating temperature range is -10 degrees F to +165 degrees F. The maximum inlet pressure is 53 psi.

Pneumatic clamps require a compressed air hook-up, also known as a pneumatic hook-up, to initiate clamping pressure. They use pressure and a holding screw, also known as a spindle, or an arm to hold a component in place. Pneumatic clamps may have a fixed clamping point at the end of a solid clamping bar, an adjustable holding screw that can be moved down a U-shaped clamping bar, or an arm that extends and rotates to clamp the workpiece.

DE-STA-CO manufactures clamping, gripping, transferring, indexing, and robotic tools. The company was founded in 1915 and is headquartered in Auburn, MI.
