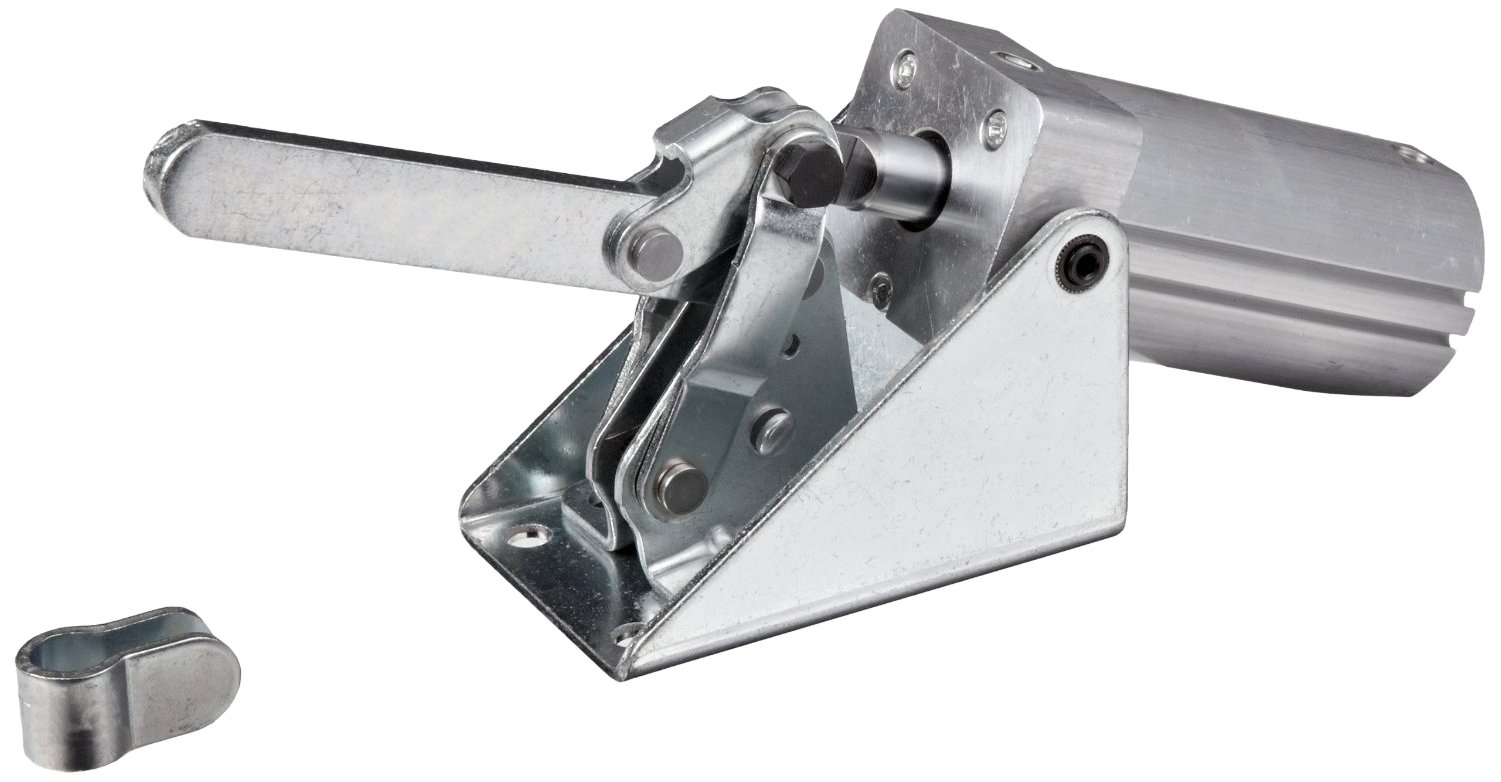

DE-STA-CO 810-S Pneumatic Hold-Down Clamp with Solid Bar, 750 lb Hold Capacity

Be the first to review this item

ASIN B000FMZ58U

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
810-S
Brand Name
De-Sta-Co
UNSPSC Code
24101647
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 16 hrs 59 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Built-in air flow control provides smoother operation during repetitive clamping operations compared to manual clamps
  • Solid hold-down clamping bar for durability
  • Magnetic ring piston accommodates round or T-slot sensors

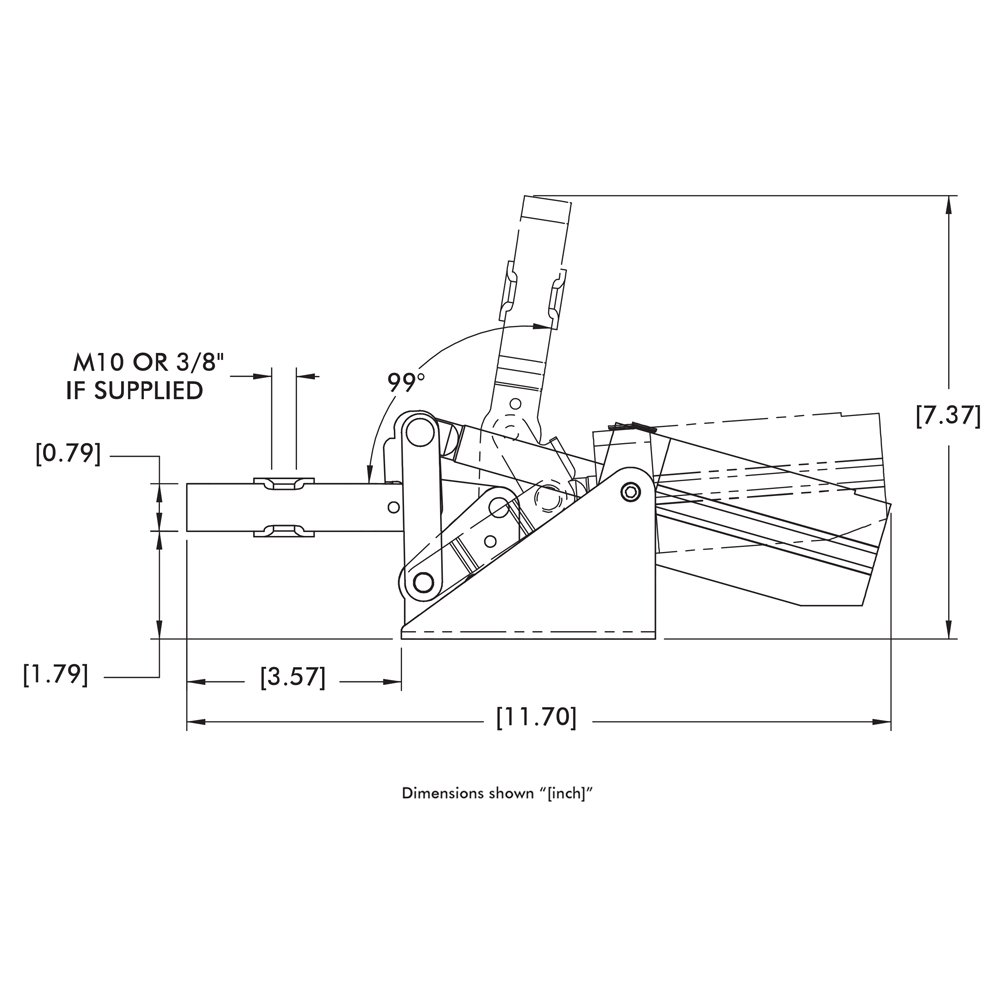

  • Holding capacity is 750 lb. and maximum clamp bar opening is 99 degrees

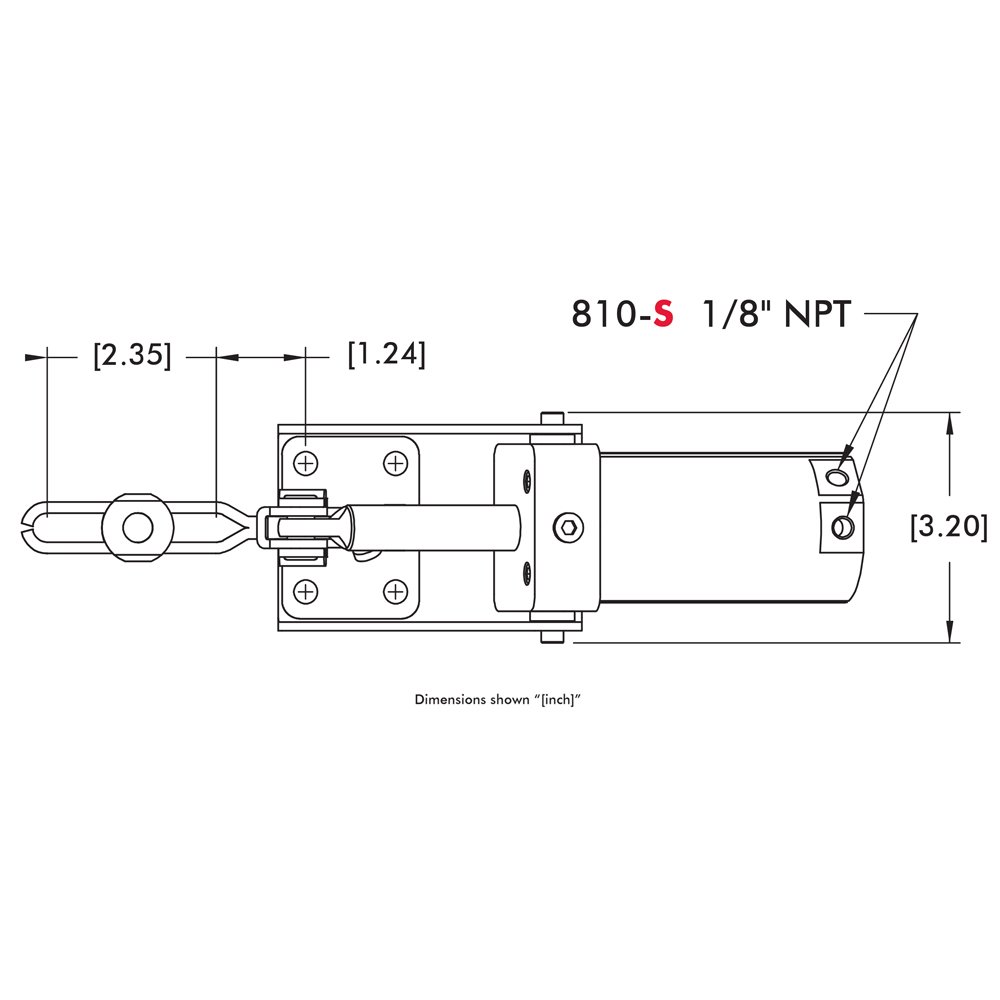

  • Port size is 1/8" NPT, operating temperature is -14 degrees F to +194 degrees F, and maximum inlet pressure is 89 psi

Package Details

Shipping Weight: 4.07 pounds
Package Size: 33 x 12 x 6 inches

Product Description

The DE-STA-CO 810-S Pneumatic Hold-Down Clamp with solid bar has built-in air flow control that provides smoother operation for repeated operations compared to manual clamps. It is made of steel and has a solid clamping bar for durability. The magnetic ring piston accommodates round or T-slot sensors for positioning. The maximum holding capacity is 750 lb. and the maximum clamp bar opening is 99 degrees. The port size is 1/8" NPT. The operating temperature range is -14 degrees F to +194 degrees F. The maximum inlet pressure is 89 psi. It comes with a bolt retainer. Holding screw is sold separately.

Pneumatic clamps require a compressed air hook-up, also known as a pneumatic hook-up, to initiate clamping pressure. They use pressure and a holding screw, also known as a spindle, or an arm to hold a component in place. Pneumatic clamps may have a fixed clamping point at the end of a solid clamping bar, an adjustable holding screw that can be moved down a U-shaped clamping bar, or an arm that extends and rotates to clamp the workpiece.

DE-STA-CO manufactures clamping, gripping, transferring, indexing, and robotic tools. The company was founded in 1915 and is headquartered in Auburn, MI.

What's in the Box?

  • 810-S Pneumatic Hold-Down Clamp
  • Bolt retainer
