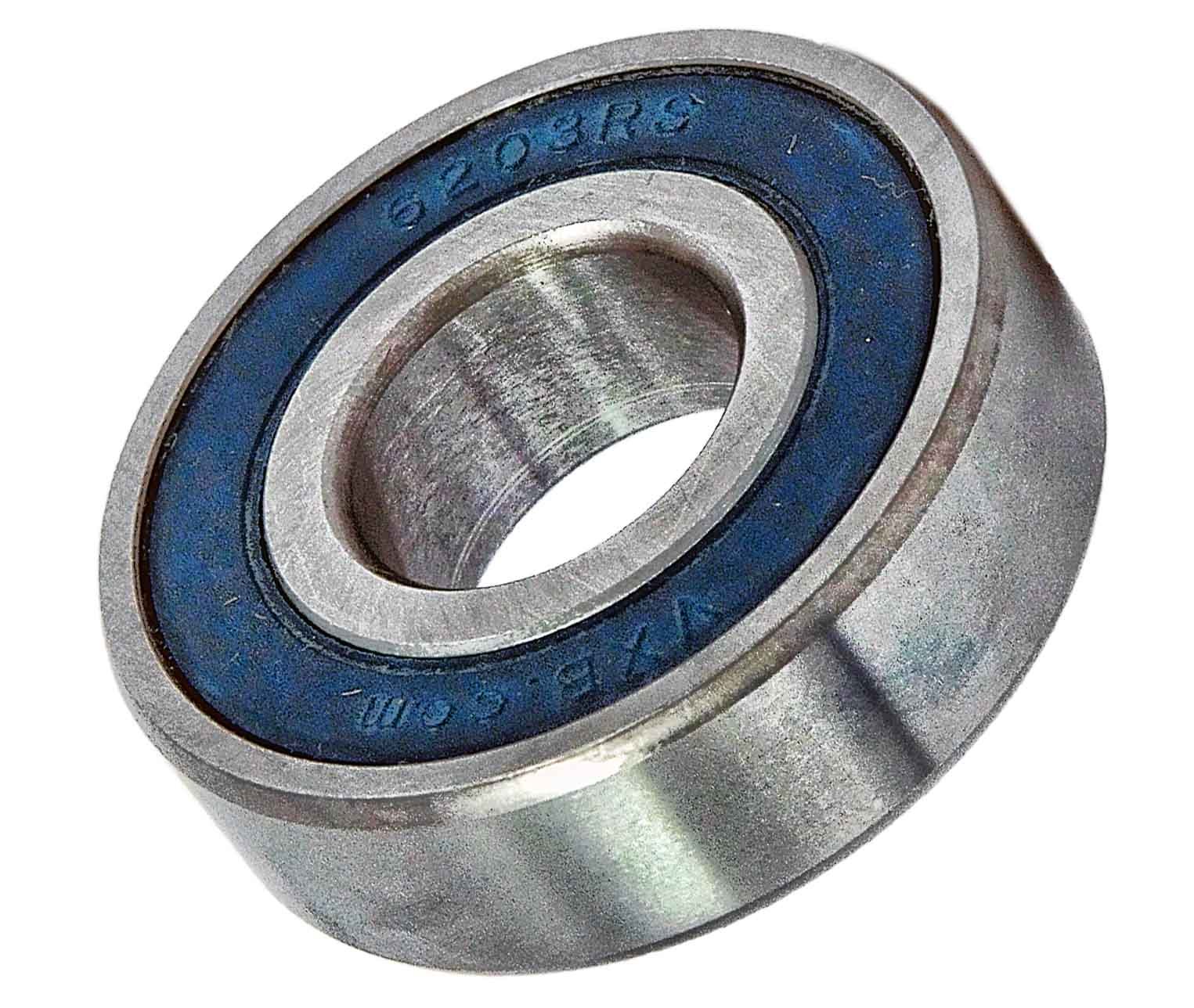

6203RS Bearing 17x40x12 Sealed Ball Bearings

Be the first to review this item

ASIN B002BBJSPE

Specifications for this item
Number of Items
1
Overall Width
12  millimeters
Part Number
6203-2RS10-1_1
Item Weight
0.14 pounds
Outside Diameter
40  millimeters
Brand Name
VXB
Inside Diameter
17  millimeters
Static Load Capacity
4800  Newtons
UNSPSC Code
31171504
Dynamic Load Capacity
9550  Newtons

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 1 day 6 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single-row bearing for supporting radial loads
  • Chrome steel for durability and resistance to deformity under heavy loads
  • Rubber seals on both sides of the bearing to keep lubricant in and contaminants out
  • Lubricated at manufacturer for no additional lubrication required
  • RPM limit of 12,000 with grease lubrication

Package Details

Shipping Weight: 0.15 pounds
Package Size: 4 x 3.4 x 0.6 inches

Product Description

This 6203RS bearing is a sealed ball bearing measuring 17x40x12. This single-row bearing is built to support radial loads and has a revolutions per minute (RPM) limit of 12,000 with greased lubrication. It is made from chrome steel for durability and resistance to deformity under heavy loads. This bearing has rubber seals on both sides to keep lubricant in and contaminants out and has been lubricated at the manufacturer so no additional lubrication is required.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
