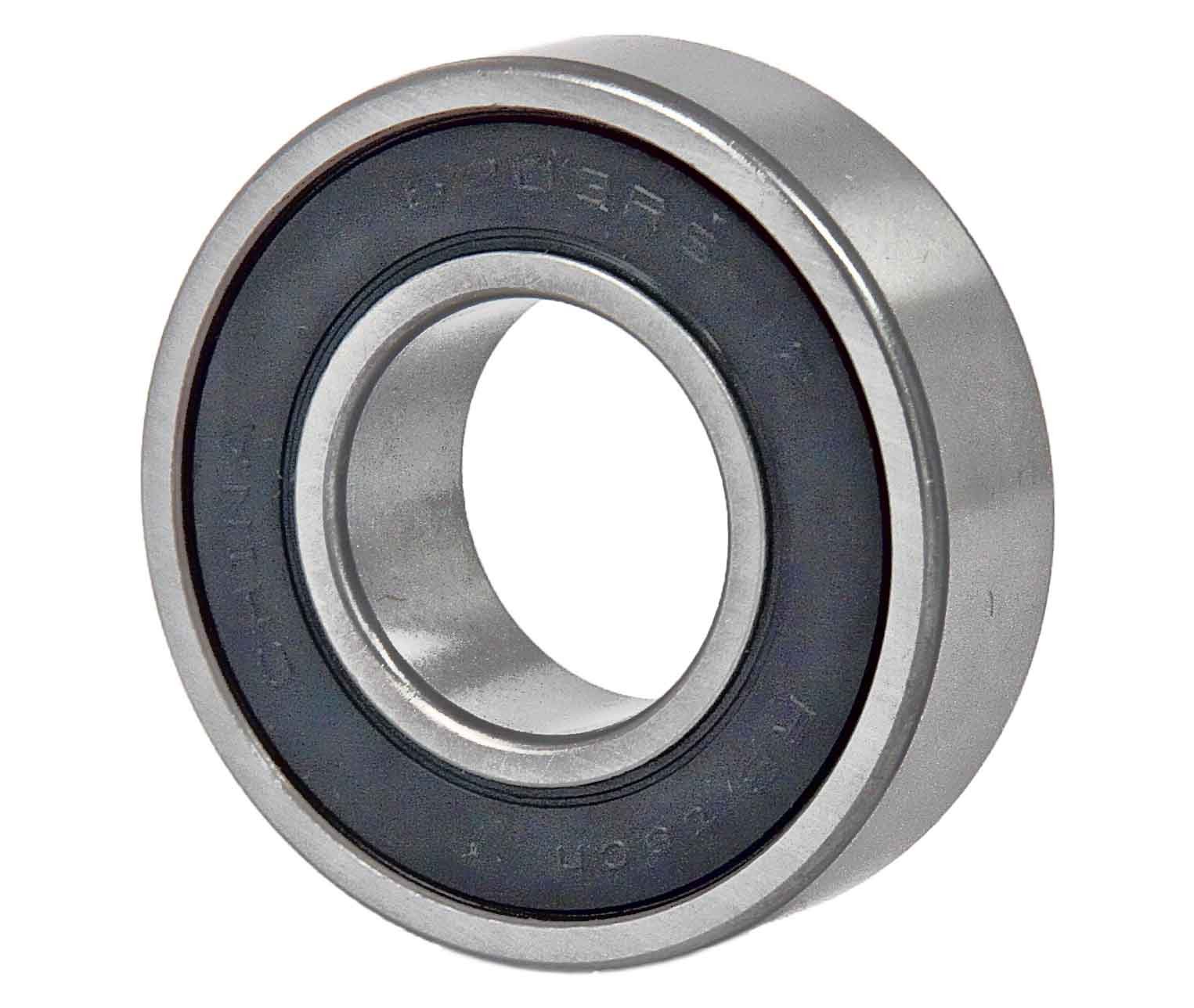

6203-2RS-12 3/4 Bearing 0.750 inch ID 3/4 x 40x12 Sealed

Be the first to review this item

ASIN B002SDA4VW

Specifications for this item
Number of Items
1
Overall Width
12  millimeters
Part Number
Kit8836
Item Weight
0.14 pounds
Outside Diameter
40  millimeters
Brand Name
VXB
Inside Diameter
3/4  inches
Static Load Capacity
4800  Newtons
UNSPSC Code
31171504
Dynamic Load Capacity
9550  Newtons

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 8 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Deep groove geometry for high speeds and supporting both radial and axial loads
  • Chrome steel for durability and resistance to deformity under heavy loads
  • Rubber seals on both sides of the bearing to keep lubricant in and contaminants out
  • Lubricated at manufacturer for no additional lubrication required

Package Details

Shipping Weight: 0.15 pounds
Package Size: 4.8 x 2.4 x 0.6 inches

Product Description

This 6203-2RS 3/4-inch x 40x12-millimeter sealed ball bearing has deep groove geometry for high speeds and supporting both radial and axial loads. Its chrome steel construction makes it durable and resistant to deformity under heavy loads. The rubber seals on both sides of the bearing keep lubricant in and contaminants out, and it comes pre-lubricated from the manufacturer so that no additional lubrication is required. This deep-groove sealed ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
