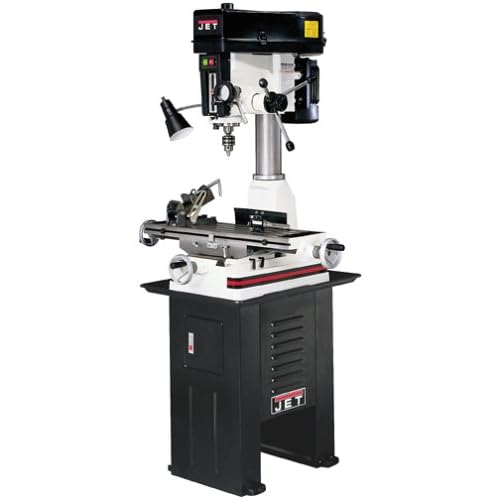

JET JMD-18 350018 230-Volt 1 Phase Milling/Drilling Machine

Be the first to review this item

ASIN B000051WSL

Specifications for this item
Part Number
825-350018
Item Weight
668 pounds
UPC
662755103902
Brand Name
Jet
EAN
0662755103902
Power Source Type
corded-electric
UNSPSC Code
23101513

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hinged belt cover allows faster speed changing
  • 9-1/2-by-31-3/4-inch worktable
  • 2 hp, 1 phase, 230-volt only motor
  • Heavy-duty tapered roller bearins support the spindle
  • Stand not included

Package Details

Shipping Weight: 739 pounds
Package Size: 48 x 37 x 29.5 inches

Product Description

Amazon.com

With its generously sized worktable and hinged belt cover for faster speed changing, the Jet JMD-18 Mill Drill Machine is efficient and precise, whether you're working with aluminum, wood, or even ceramic tile. Powered by a UL-listed motor, this high-performance tool has a drilling capacity of 1-1/4 inch and a 15-7/8-inch swing. It also boasts a three-inch face mill capacity, a 3/4-inch end mill capacity, and a host of innovative features, like an easy-to-read internal depth gauge and a worklamp.


The JET JMD-18 Mill
Drill Machine offers:
  • A UL-listed, 2 HP, 230-volt motor for dependability
  • An extra large, 9.5 x 31.75-inch worktable
  • An easy-to-read internal depth gauge and worklamp




Easy-access controls and a convenient work lamp help you maintain precision results. View larger.


The extra large worktable is ideal for big projects.
Extra-Large Work Table for Bigger Jobs
Thanks to its extra large, 9.5 x 31.75-inch worktable, the JMD-18 gives you the freedom to tackle larger scale projects that require more space and flexibility. And the included worklamp provides ample illumination of any size work piece, even in dim conditions.

2 HP Motor and Hinged Belt Cover for Power and Fast Results
The JMD-18 operates with a powerful UL-listed, 2 HP, one phase, 230-volt motor that gives the tool a range of 12 spindle speeds from 15 to 3,000 RPM. And to minimize delays and wait periods as you transition to different speeds, this motor is also supported by a hinged belt cover that offers faster speed changing.

Cast Iron Column and Heavy-Duty Roller Bearings for Support and Stability
The JMD-18 has a strong, supportive design. First, a one-piece cast iron column offers additional support where you need it, giving you the freedom to handle heavier material without worry. And heavy-duty, tapered roller bearings support the spindle for greater tolerance and more accurate drilling depth.

Easy-Read Depth Gauge and 360-Degree Swiveling Head for Precision
Easy to operate, the JMD-18 offers user-friendly features, like satin finished easy-read dials, to guide you through every step of your project. A positive quick-stop knob combines with an easy-to-read internal depth gauge for consistency, while a 360-degree swiveling head gives you the flexibility you need for precise results.

The JMD-18 is backed by a two year warranty.

About JET: A History of Sharing New, Feature-Rich Products
Opened in 1958 after the founder of the company, Leslie P. Sussman, took the first Boeing Jet Airplane trip from Seattle, Washington to Japan, JET began as a small dealer that sold air hoists and trolleys out of a single hardware store in Seattle. Over the years, JET has carried everything from snowmobiles, transmitter radios, and forklifts to nylon stockings, but by the early 1970s, metalworking had become the base of their business line. And by the 1980s, JET had expanded into the realm of woodworking. Today, you'll find that JET offers a wide range of popular woodworking tools that are backed with best-in-class features and excellent service.

What's in the Box
JMD-18 Mill Drill Machine, one worklamp, adjustable carbide facemill, drill press angle vise, 1/2-inch drill chuck, chuck arbor, and draw bar.
