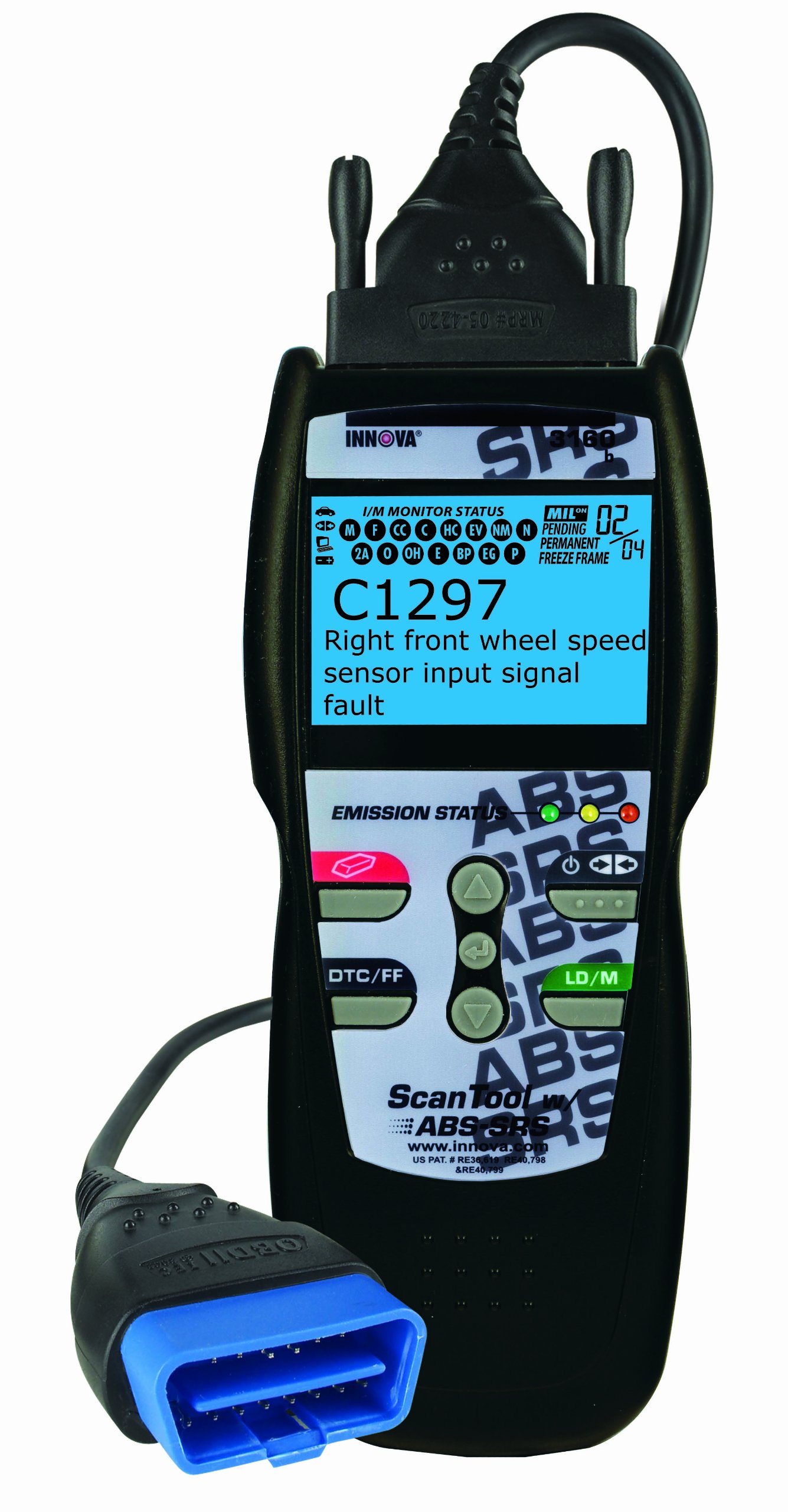

INNOVA 3160B ABS/SRS+ Professional CanOBDII Diagnostic Code Scanner with Enhanced Live Data

Be the first to review this item

ASIN B001QIUGVI

Specifications for this item

Brand Name: Equus

Catalog Number: 20007137 , EPI3160

EAN: 0042173031603

Part Number: 3160B

UPC: 042173031603

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thursday, May 23? Order in-stock items in the next 13 hours 35 minutes and choose One-Day Shipping at checkout.

Key Features

Reads 'check engine' light warnings on all 1996 and newer cars, light trucks, SUVs and minivans, domestic and import -- including C.A.N. (Controller Area Network)
Diagnoses ABS and SRS codes on most 1996 and newer GM, Ford, Chrysler, Toyota and Honda vehicles
Provides SAE enhanced Live Data - views, graphs, records, and plays back live PCM data streams on screen
Displays OBD2 Freeze Frame Data & turns off check engine, ABS and SRS lights
Unit can be USB (cable included) flash updated with a standard Windows® PC (OBD-PC Link(TM) software required / included with tool)

Package Details

Shipping Weight: 2 pounds
Package Size: 10.9 x 7.8 x 2.9 inches

Product Description

Amazon.com

The Equus 3160 Innova ABS + Professional CanOBD2 Diagnostic Code Scanner is both the professional’s choice for a full-featured ABS and OBD2 scan tool and a great option for the do-it-yourself mechanic. It offers the same features and functions as the Equus 3150 model, but comes with the added bonus of a backlit blue screen and provides S.A.E. Enhanced Live Data, including views, graphs and playback of live PCM data streams. With this feature, the user can prioritize live data values (P.I.D.) for quick review and analysis. Other exciting features and functions offered by the 3160 include bi-directional testing, vehicle I.D. capture and oxygen sensor results.

The Equus 3160 ABS + Professional Innova CanOBD2 Diagnostic Code Scanner Diagnostic Tool kit

View larger.

In addition the 3160 also provides Anti-lock Brake System (ABS) diagnostic functionality to troubleshoot problems with ABS solenoids, ABS pump motors, brake switches, control modules, speed sensors and more on most 1996 and newer GM, Ford and Chrysler vehicles. So, if your car has either a check engine or ABS light on, you don't have to reach into your toolbox for two tools, the 3160 will do both jobs. Combine this with the unit's Internet connectivity which makes for easy software updates and you have a powerful, professional grade multi-use diagnostic tool that you can count on for years to come.

The Equus 3160's easy to read all-in-one back-lit screen

Easy to read, back-lit
all-in-one screen.

The Equus 3160's patented emissions status LED system

Emission status LED system
and one-push function buttons.

All-in-One Backlit Screen and One-Push Button Functions
Handheld diagnostic tools should put all the information a user needs right in the palm of your hand, but too often other scanning tools bury this data within the device, requiring you to navigate through multiple menus to find what you want. The 3160 is different. Using a combination of its patented all-in-one backlit screen, that allows for viewing 25 pieces of vital information in three languages--English, French or Spanish--all at once, even in low light conditions without having to change screens, and single-button function access to minimize menu scrolling, users are guaranteed quick, efficient access to data they need.

Patented Emission Status LEDs
Over 30 States now use an OBD2 based system to check for emissions readiness, making it more important than ever to be aware of the status of your vehicle and to keep it running in top condition. With this in mind, the Innova 3160 has been designed with the ability to read the exact same emissions information as these state-required tests do to determine your chances of passing the first time around. Built around a simple color-coded system where Green = Pass, Yellow = Potential Problems and Red = Fail, users are able to quickly diagnose potential emission issues with the Innova 3160. Other tool manufacturers charge over $100 for this feature alone and a separate tool has to be purchased, but the 3160 includes this with the price of purchase.

Additional Diagnostic Resources at Canobd2.com
The Equus Innova 3160 also comes with access to RepairSolutions through canobd2.com. RepairSolutions allows users to take control of vehicle diagnostics by providing you with the complete solution as to why your "Check Engine" light is on. A basic report is provided free with your scanner purchase, with a comprehensive analysis available for additional purchase.

Key Product Features:

Professional OBD2 generic scan tool all 1996 and newer cars, light trucks, and SUVs - domestic, Asian and European Import.
Diagnoses ABS codes on 1996 and newer GM, Ford and Chrysler vehicles.
Features unique patented all-in-one backlit screen and LED display for quick state emissions readiness check and drive cycle verification.
Retrieves OEM enhanced and transmission DTCs.
Communicates with all OBD2 protocols: C.A.N. (Controller Area Network), ISO 9141, J1850PWM, J1850VPW, KWP 2000 ISO 14230-4.
Provides SAE enhanced live Data - views, records, and plays back* live PCM data streams.
Displays freeze frame data.
Includes Spanish and French interface and definitions (selected by a menu command).
Retrieves OBD2 DTCs: generic codes (P0, P2, P3, and U0) / manufacturer specific codes (P1, P3, and U1).
Unit can be flash updated with a standard Windows PC (OBD-PC Link software required / included with tool).
Memory / battery backup for off-car review and analysis.
Comes with access to CanOBD2.com RepairSolutions which gives trouble code definitions, a full diagnostic report, probable causes, most likely fix to DTC's, repair costs and more.

What's in the Box
The Innova OBD2 3160 ABS Kit includes the diagnostic tool, an OBD2 16-pin DLC cable, PC software and cable, a copy of Equus' "Understanding OBD2 video," a sturdy nylon tool storage pouch, an instruction manual in English, Spanish and French and access to canobd2.com where you can find repair solutions, tech tips and product support.

Product Warranty

Equus Products, Inc. ("Equus") warrants to the original purchaser that its units are free of defects in materials and workmanship under normal use and maintenance for a period of one (1) year from the date of original purchase.

About Equus Products, Inc.

Equus Products, Inc., is an ISO 9001: 2008 certified company, and a leading manufacturer and distributor of test equipment, gauges and tachometers for the automotive aftermarket. Founded in 1982, the company markets and distributes its gauge line under the Equus brand to major retail and WD accounts throughout the US, Canada and Mexico. In 1990, Innova Electronics Corporation was acquired for research, design and product development. Test and tune-up products developed under this division carry the Innova brand, providing customers with easy-to-use products for servicing the vehicles of today and tomorrow.

FEATURES & FUNCTIONS	3020	3030	3040	3100	3120	3130c	3140	3150	3160
OBD2 Vehicle Protocol Coverage
1996 - Present - OBD2 - European, Asian, Domestic
CAN and 2010+ Model Diesel and Hybrid Compliance
Tool Features & Functions
Patented All-in-One Display Shows 20+ values on one screen
Plug and Play - All Hot Keys for Intuitive Navigation
Vehicle Health Monitor LED's - Confirm State Emissions Test
Emissions Readiness Advisor - Complete OBD Trip + Drive Cycles
Retrieve Manufacturer Specific, Global & Pending Codes
Erase Button Turns Off "Check Engine" Light
Back-Lit display
Displays Freeze Frame Data
Multilingual - On Screen Definitions in English/Spanish/French
Shows Manufacturer Specific Code Definitions on Display
Battery Backup for Off Vehicle Data Review
Vehicle Information - VIN # - Mode 9
Enhanced Engine and Transmission Codes
On Screen Code Definitions Lookup Library
Tool Storage Pouch Included
OBD2 Scan Tool Functions (1996 to Present)
OBD2 Live-Data Stream Display
OBD2 - All Modes 1 - 10
Bi-Directional Control / Service Mode 8 - EVAP
Record, Graph and Playback Live Data on the Screen
ABS & SRS Coverage
ABS - Read + Erase most 1996+ GM, Ford, Chrysler, Toyota, Honda DTC's
Airbag / SRS - Read + Erase most 1996+ GM, Ford, Chrysler, Toyota, Honda DTC's
Fix Assist
FIXassist -- Provides tech tips on initial items to inspect on the tool
OBD1 Functions - 1981-95 Coverage
OBD1 - Domestic: Most Ford, GM, Chrysler DTC's
OBD1 - Import: Most Toyota / Lexus DTC's
Software, Website, Support & Service Features
All ASE Technical Support - Mon-Sat, 6am- 6pm PST - Spanish
One-Year Warranty
Repair Solutions with VIN Specific Fixes + procedures - optional
Internet Updateable & Upgradeable

Product Description

Equus ABS + Scan Tool is designed to quickly reveal check engine light warnings. It diagnoses ABS codes and retrieves OEM enhanced as well as transmission DTCs. This diagnostic tool features unique patented all in one screen display as well as LED display for quick state emissions readiness check and drive cycle verification. It communicates with all OBD2 protocols and provides enhanced live data. CanOBD2® + ABS Scan Tool • Professional OBD2 Generic Scan Tool all 1996 and newer cars, light trucks, and SUVs – Domestic, Asian and European Import • Diagnoses ABS codes on 1996 and newer GM, Ford and Chrysler vehicles. • Features unique patented all-in-one backlit screen and LED display for quick State Emissions readiness check and drive cycle verification • Retrieves OEM Enhanced and Transmission DTCs • Communicates with all OBD 2 protocols: C.A.N. (Controller Area Network), ISO 9141, J1850PWM, J1850VPW, KWP 2000 ISO 14230-4 • Provides SAE enhanced Live Data - views, records, and plays back* live PCM data streams • Displays Freeze Frame Data • Includes Spanish and French Interface & Definitions (selected by a menu command) • Retrieves OBD2 DTCs: Generic Codes (P0, P2, P3, and U0) / Manufacturer Specific Codes (P1, P3, and U1) • Unit can be flash updated with a standard Windows® PC (OBD-PC Link™ software required / included with tool) • Memory / Battery backup for off-car review and analysis • Comes with access to CanOBD2.com RepairSolutions which gives trouble code definitions, a full diagnostic report, probable causes, most likely fix to DTC’s, repair costs and more.
