DE-STA-CO 227-U Horizontal Hold-Down Toggle Locking Clamp with U-Shaped Bar and Flanged Base

Be the first to review this item

ASIN B000FMX1V8

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
227-U
Brand Name
De-Sta-Co
UNSPSC Code
31162900
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 10 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Horizontal hold-down handle for applications with little clearance above the clamp
  • Nonmarring holding screw can be moved on the U-shaped bar for larger clearance angle

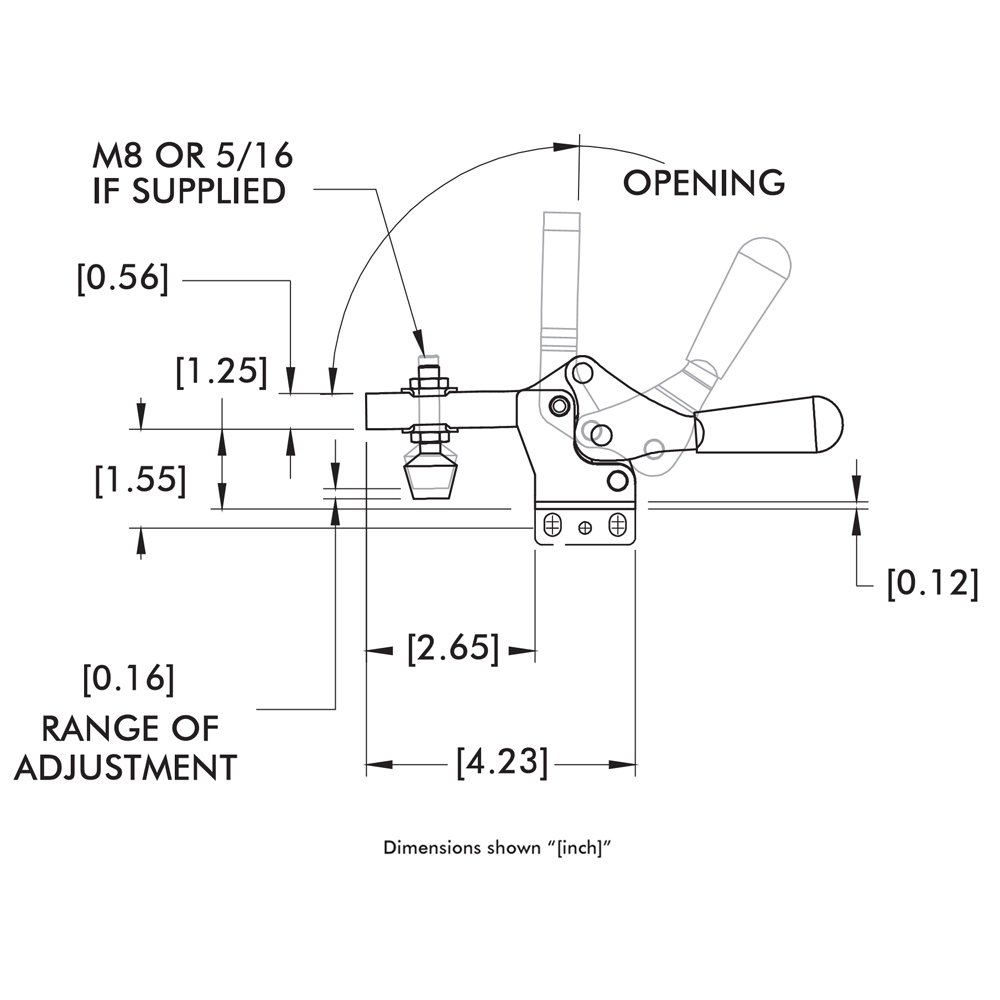

  • Holding capacity is 500 lb. and maximum clamp bar opening is 91 degrees
  • Toggle lock maintains the clamp pressure
  • Made of steel for strength and has a plastic-covered handle for a secure grip

Package Details

Shipping Weight: 0.75 pounds
Package Size: 6.9 x 2.7 x 1.1 inches

Product Description

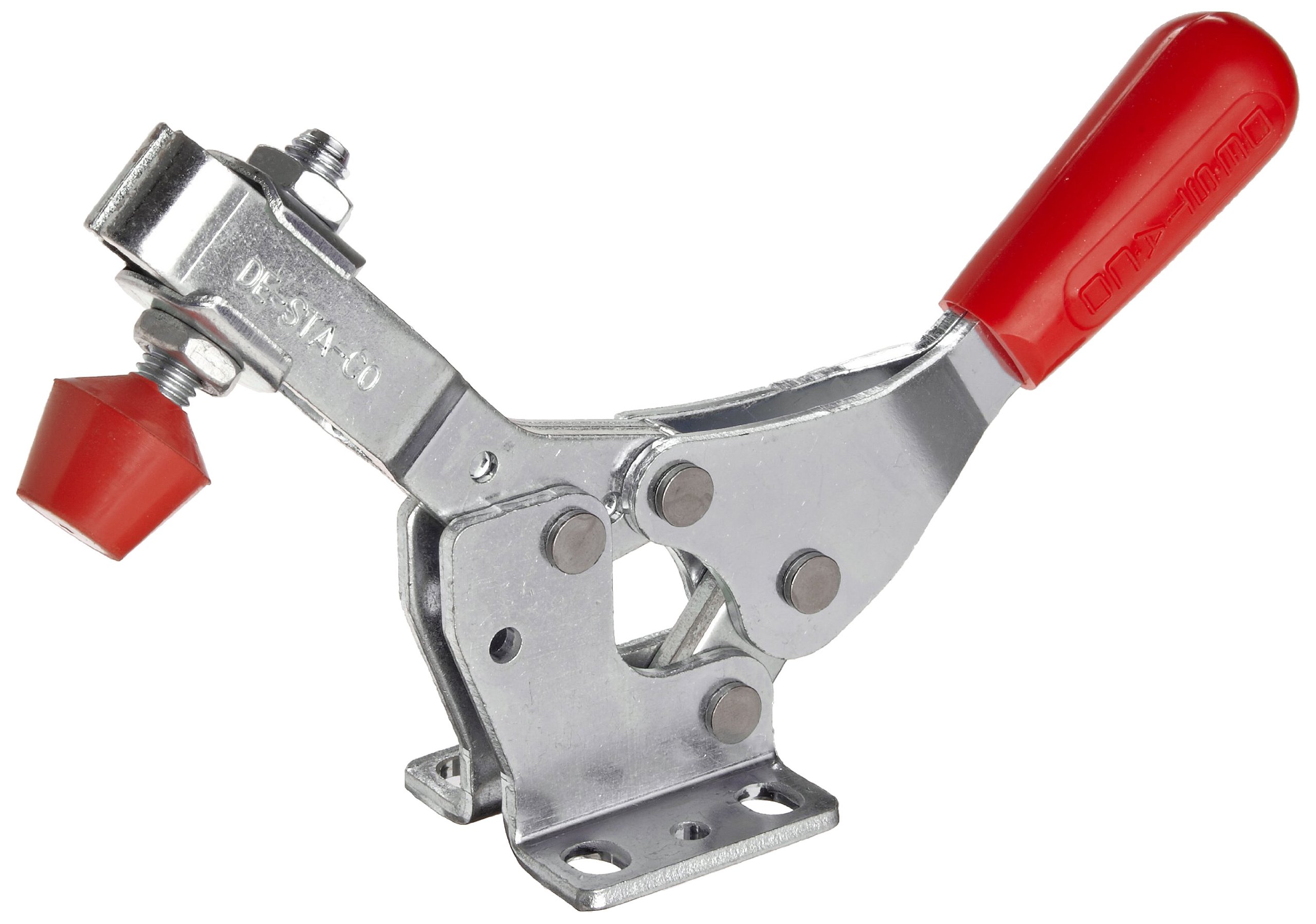

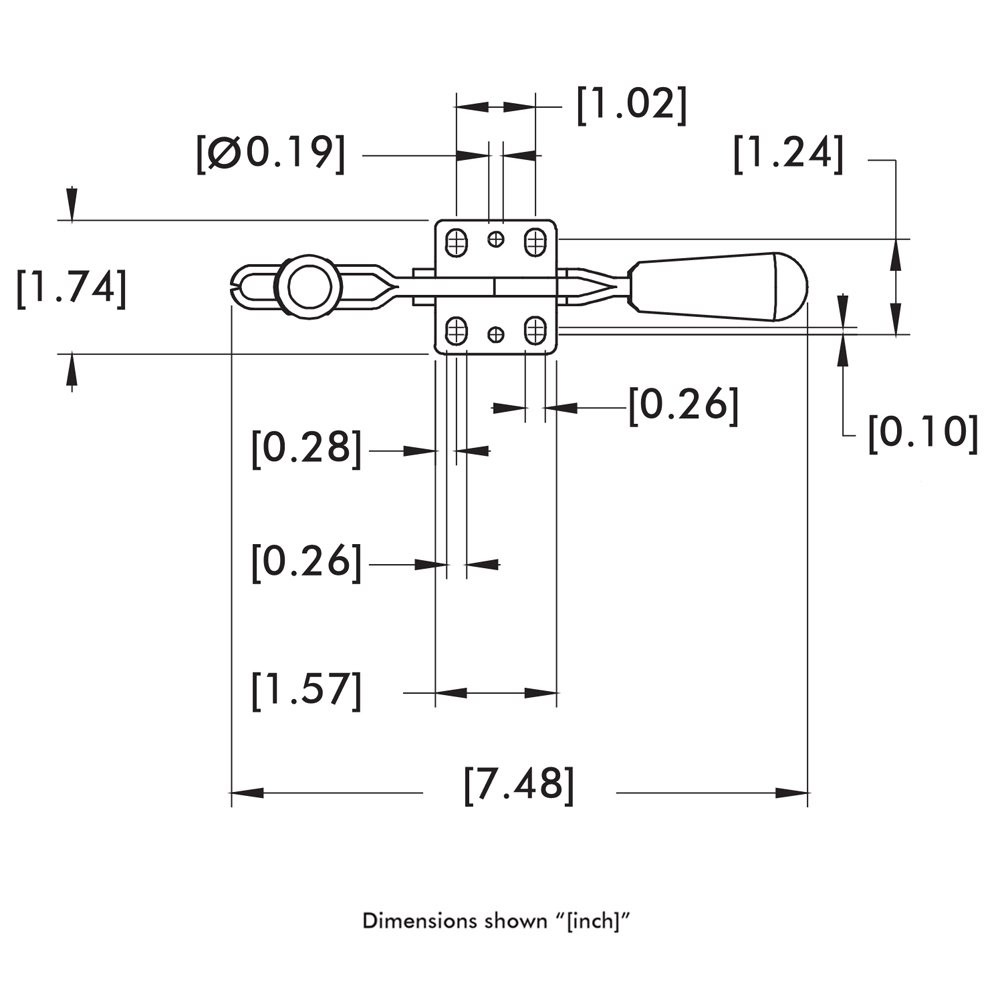

The DE-STA-CO 227-U Horizontal Hold-Down Toggle Locking Clamp with U-shaped bar and flanged base is made of steel and has a horizontal hold-down handle for applications where there is little clearance above the clamp. It has a U-shaped clamping bar with a nonmarring neoprene-tipped holding screw that can be moved away from the base for a larger clearance angle. Positioning the holding screw closest to the base allows for maximum holding capacity. The maximum holding capacity is 500 lb. and the maximum clamp bar opening is 91 degrees. The clamp also has a toggle lock that maintains the clamp pressure and a flanged base for mounting to a work surface. The plastic-covered handle provides a secure grip.

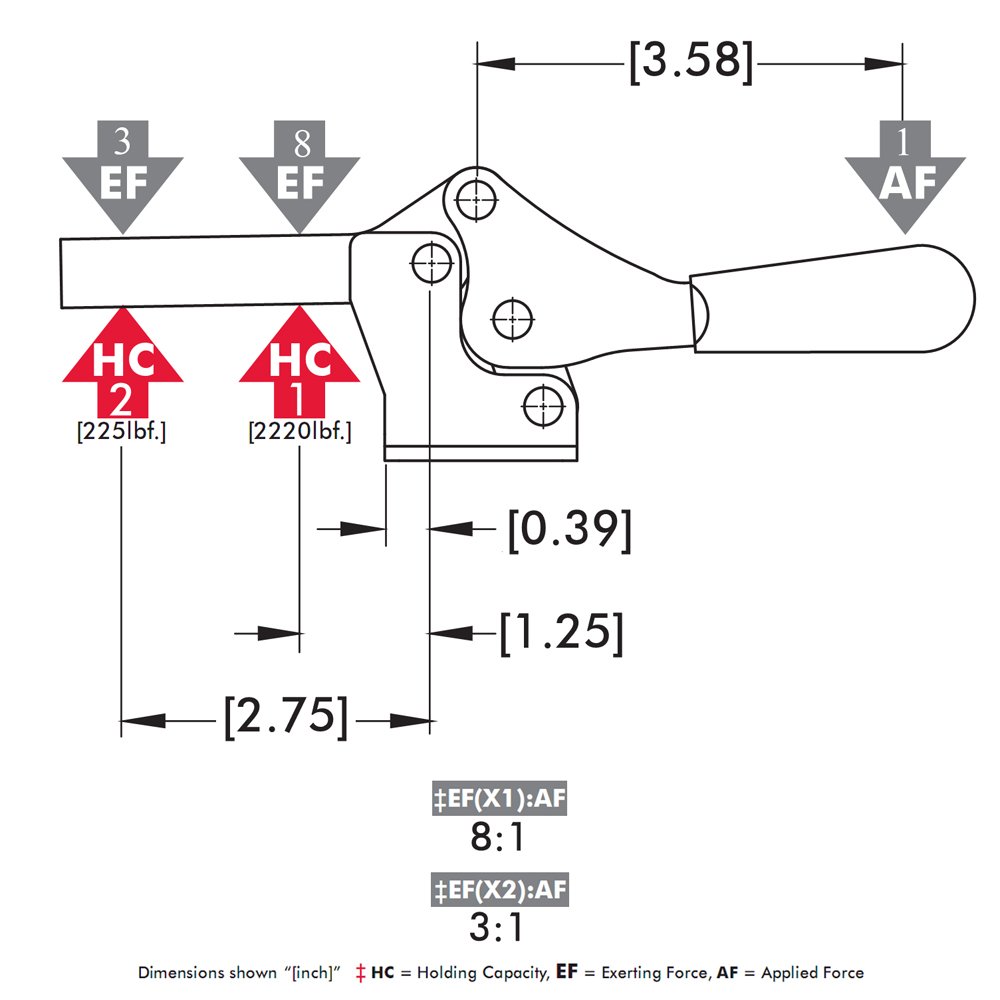

Toggle clamps use pressure and a holding screw, also known as a spindle, to hold a component in place. Toggle clamps have either a fixed clamping point at the end of a solid clamping bar or an adjustable holding screw that can be moved down a U-shaped clamping bar and away from the base of the clamp for more clearance. The closer the holding screw is to the base of the clamp, more pressure is applied. The clamp handle is positioned either perpendicular to the bar (vertical) or parallel to the bar (horizontal) to suit different clearance angles around the component.

DE-STA-CO manufactures clamping, gripping, transferring, indexing, and robotic tools. The company was founded in 1915 and is headquartered in Auburn, MI.
