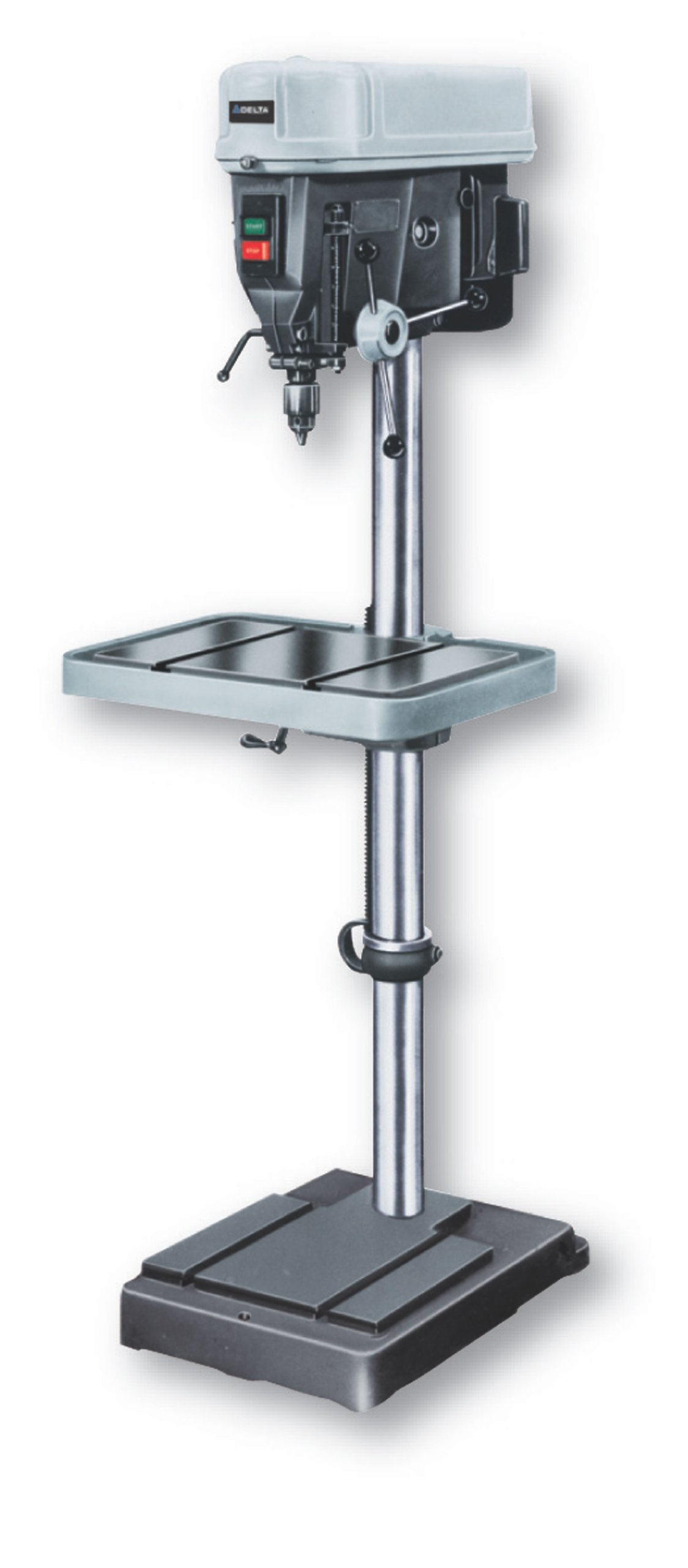

DELTA 15-333 15-Inch Variable Speed Drill Press with Tilting Table and Magnetic Starter

Be the first to review this item

ASIN B000RFYY3W

Specifications for this item
Is Assembly Required
Y
UPC
069554153334
Brand Name
Delta
EAN
0069554153334
Warranty
2 Year Warranty
UNSPSC Code
23241801

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Extra-large spindle bearings 6 PLUS 6- and -VS6 spindle and spindle pulley are supported by four over-sized, pre-loaded, lubricated-for-life ball bearings.
  • Wide, test-proven speed range gives you a true 10-to-1 speed ratio. You get the exact speed you need for every drilling job on any material- 450-4,700 rpm with a 1,725 rpm motor.
  • Quick belt tension release is provided by the pivoting motor mounting plate which has a reverse, self-locking taper on the spring-loaded, rubber-tipped plunger that quickly restores correct belt tension
  • Extra-long quill travel gives the extra depth you need for deep-hole jobs like skip and gang drilling.
  • Six speeds offer unbelievably wide range of speeds with a low-cost 1,725 rpm motor- 425; 600; 1,100; 2,050; 3,900 and 5,500 rpm- 11.8 to 1 speed ratio.

Package Details

Shipping Weight: 276 pounds
Package Size: 33.8 x 29.8 x 16.8 inches

Product Description

Amazon.com

The DELTA 15-333 Variable Speed Drill Press features a 3/4 HP three-phase motor that has a 24-volt push-button, magnetic starter. It has a variable-speed drive allowing you to select a different spindle speed while the machine is running. The drill maintains proper belt tension automatically so you'll always have full power transmission. A snubber feature holds speed settings constant no matter the load conditions. The quill is large with a two-inch diameter, and a long quill travel lets you do deep-hole jobs such as skip and gang drilling. The drill features extra-large spindle bearings "6 PLUS 6" and "VS6" spindle and spindle pulleys that are supported by lubricated-for-life ball bearings. The table tilts 90 degrees in both directions and measures 11 x 14 inches. Included is the table, motor and controls, belt and pulley guard, belt and motor pulley, self-locking depth stop, depth gauge, self-ejecting chuck key.

From the Manufacturer

The shop-proven Delta 15-333 drill press is ideal for woodworking, cabinet, and metal-drilling applications and deep hole jobs like skip and gang drilling. Extra-robust spindle bearings, massive 2 inch quill, and lifetime-lubricated bearings deliver smooth, chatter-free drilling with no maintenance. A “snubber” keeps drilling speeds constant under load. The tilt-table enables positioning larger assemblies and clearing woodworking and cabinet making jigs at different angles to the drill head. Six speeds (450-4,700 RPM) enables customizing bit speed for drilling hard and soft materials from wood to metal to plastics with the 1725 RPM motor or 300-3,100 RPM speed range with a 1,140 RPM motor. Delta offers a 5 year warranty.
