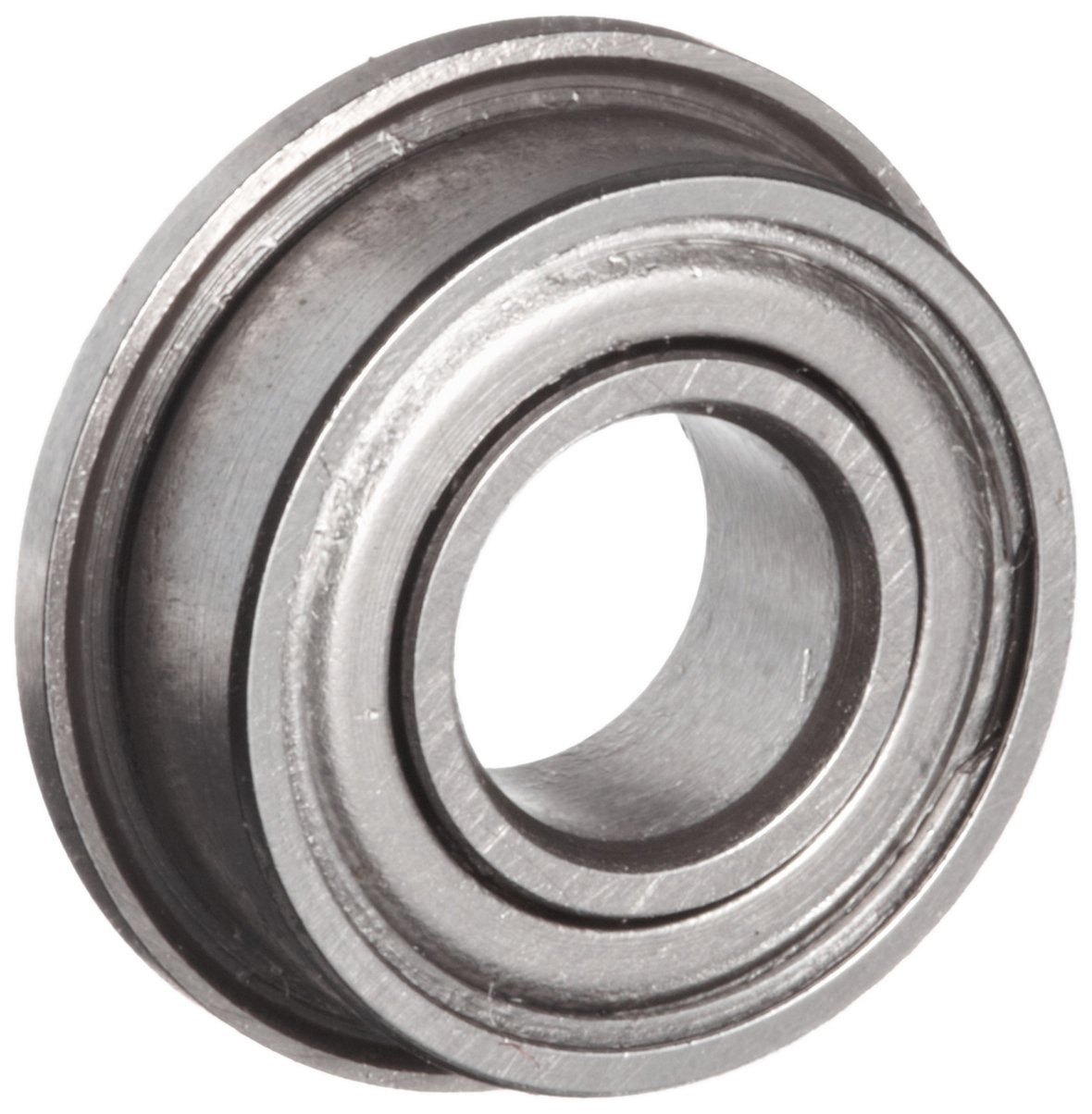

10 Flanged Shielded 5 x 11 x 4 mm Ball Bearings

Be the first to review this item

ASIN B002BBGNOI

Specifications for this item
Number of Items
1
Overall Width
4  millimeters
Part Number
kit699
Item Weight
0.03 pounds
Outside Diameter
11  millimeters
Brand Name
VXB
Inside Diameter
5  millimeters
Static Load Capacity
360  Newtons
UNSPSC Code
31171509
Dynamic Load Capacity
970  Newtons

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Oct 24? Order in-stock items in the next 13 hrs 31 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Deep groove geometry suitable for use in applications that require high speeds and support for both radial and axial loads
  • Pressed steel flanged housing increases life of the bearing
  • Metal shields on both sides of the bearing keep lubricant in and contaminants out
  • Dynamic (radial) load rating of .97 kN and a static (axial) load rating of .36 kN
  • Pre-lubricated with grease at manufacturer so no lubrication required

Package Details

Shipping Weight: 0.3 pounds
Package Size: 3.62 x 1.81 x 0.71 inches

Product Description

This 5 x 11 x4 mm flanged, shielded ball bearing has deep groove geometry for high speeds and supporting both radial and axial loads. Its pressed steel construction makes it durable and resistant to deformity under heavy loads. The bearing has a dynamic (radial) load rating of .97 kN, a static (axial) load rating of .36 kN, an inside diameter of 5 mm, an outside diameter of 11 mm, and a width of 4 mm. The metal shields on both sides of the bearing keep lubricant in and contaminants out. This deep-groove shielded ball bearing is suitable for use in applications that support combined radial and axial loads at moderate rotational speeds, such as clutches, drives, pumps, and conveyors.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
